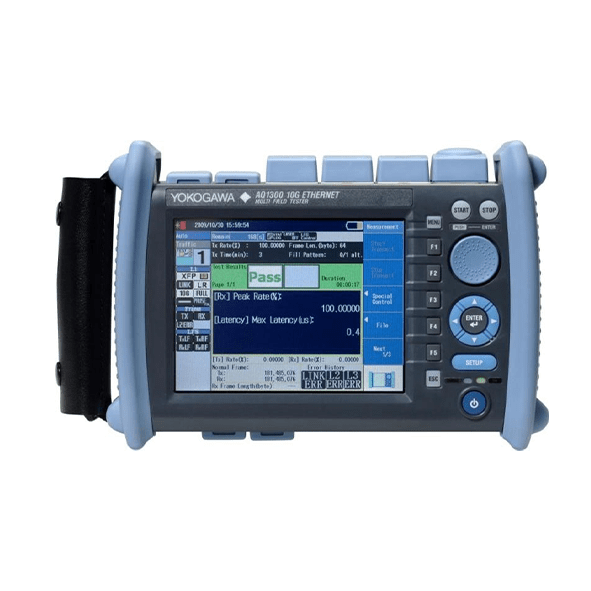

YOKOGAWA AQ1300 Series 1G/10G Ethernet Multi Field Tester
YOKOGAWA AQ1300 Series 1G/10G Ethernet Multi Field Tester hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The handheld AQ 1300 ethernet field tester for network path testing and maintenance is designed to improve work efficiency and quality. The AQ1300 offers excellent functionality and operability optimized for field testing. It’s easy to operate, which prevents operational errors and stabilizes work quality for routine tasks such as network path testing. Powerful analysis functions help isolate failures during maintenance work.
JAPON MALI
FEATURES This compact and lightweight handheld ethernet test set with functionality is optimized for the network path testing and maintenance of 10M to 10G Ethernet networks. Integrated functions and field optimized operations are in one compact box, designed to improve work efficiency and quality. AQ1301 10M 100M 1G AQ1300… Devamı
FEATURES
This compact and lightweight handheld ethernet test set with functionality is optimized for the network path testing and maintenance of 10M to 10G Ethernet networks. Integrated functions and field optimized operations are in one compact box, designed to improve work efficiency and quality.
| AQ1301 | 10M | 100M | 1G | |
| AQ1300 | 10M | 100M | 1G | 10G |
World’s Smallest-in-class 10GbE tester (AQ1300)
The AQ1300 is the world’s smallest in-class 10G Portable Ethernet Tester. It offers exellent mobility for field work, reduces work load, and ensures work efficiency and safety.
- A5- Size
- Easy-to-carry robust structure suitable for field use
- The light weight (Approx. 1.3 kg (2.9 lbs) makes it more comfortable to carry or hold in the hand at work
All functions in ONE for Network path test
All the functions needed for field performance testing are integrated into a compact unit. The functions are optimized to improve work efficiency in the field where work hours and working conditions are limited.
- Optical and electrical measurement ports for 10M to 1G (AQ1301) and 10M to 10G (AQ1300) are available
- Built-in Optical power meter (factory-installed option for the AQ1300)
- Equipped with a variety of test functions to evaluate Ethernet performance, such as an ethernet throughput tester, latency measurement, bit error rate test, and PING test
More Efficient and Reliable Network Path Test
Network path testing or other routine work require not only work efficiency but also that workers of any skill level can carry out a proper test with the correct procedure and settings.
Automated tests using the setup files pre-loaded on the tester ensures consistent work quality.
- Auto: Just select a setup file and run it to perform automatic measurement and save the measurement results
- Auto (Remote): Link the two units as master and slave to run automatic tests
- Remote Control: Control remotely from a PC via GUI
Powerful Failure Analysis Functions
The AQ1300 series provides a variety of functions to reproduce the user’s traffic environment for more accurate troubleshooting.
- Function to generate a variety of test frames to reproduce the real traffic environment
- Tests with variable frame length and field, overload test, burst traffic test, and multi-flow test
- Various physical layer analysis functions
Intuitive and Comfortable Graphical User Interface (GUI)
The screen is laid out so you can understand the information you need, like the setting items and setting states at a glance and a unified operating system offers stress-free operation.
- All menu keys, operation buttons, and rotary knob are laid out on the right side to allow for single hand operation.
- The operation system is optimized for practical use in network path testing and maintenance
Large LCD Screen
The large screen improves work efficiency and reduces operational errors and mistakes.
- An easy-to-read large color LCD display (5.7-inch, 640 480 pixels)
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
İlgili ürünler
YOKOGAWA AQ2170 Series Portable Optical Power Meter (Simple & Compact)
YOKOGAWA AQ2200-312 Optical Attenuator Module
The AQ2200-312 is a variable optical attenuator type for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.
- Wide attenuation range:
- 0 to 60 dB (SM version)
- 0 to 45 dB (MM version)
- Wide wavelength range:
- 1200 to 1700 nm(SM version)
- 800 to 1370 nm (MM version)
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typical)
- Low polarization dependence loss: 0.1 dBp-p or less
- Monitor output (optional)
- Configure the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments
JAPON MALI

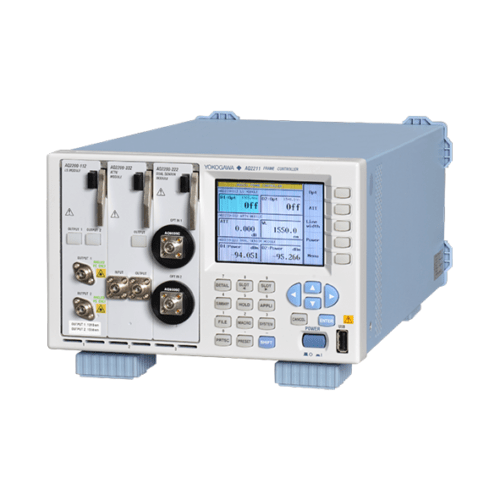

YOKOGAWA AQ2212 Frame Controller (9 Slots)
The AQ2211 and AQ2212 frame controllers are platforms for the AQ2200 Multi Application Test System. These frame controllers contain a variety of measurement applications that enable you to get the information you need without connecting an external controller PC. In addition, they have three different external interfaces, so you can always use the best interface for a particular measurement application.
- Easy-to-view color display
- USB port for data storage
- Measurement module "hot-swapping" capability
- Remote monitoring and measurement through a LAN
- See latest AQ2212 Frame Controller firmware update
JAPON MALI
YOKOGAWA AQ6150B Optical Wavelength Meter
The AQ6150B Optical Wavelength Meter is an ideal instrument for accurately measuring the optical wavelength of optical devices and systems with wavelength ranges from 900 nm to 1700 nm. By employing a Michelson interferometer and a high speed Fast Fourier Transform (FFT) algorithm, the AQ6150B can measure not only a single wavelength laser signal, but also a multiple wavelength laser signal from a DWDM system and Fabry-Perot laser. Furthermore, this technology enables the measurement of modulated laser signals in addition to the CW signal from an optical transceiver. The optimized optical design and data processing routine significantly reduces the measurement time and improves manufacturing throughput.
- Wavelength accuracy: ±0.7 ppm
- Wavelength range (3 types): 900-1700nm, 1200-1700nm, 1270-1650nm
- Measurement time of 0.2 seconds or less
- Up to 1024 wavelengths can be measured at once
- Single wavelength type and multi wavelength type
- Support modulated light and filter measurement
JAPON MALI

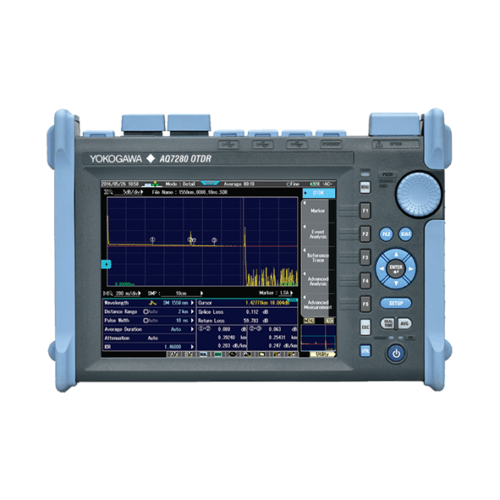

YOKOGAWA AQ7280 Modular Optical Time Domain Reflectometer
