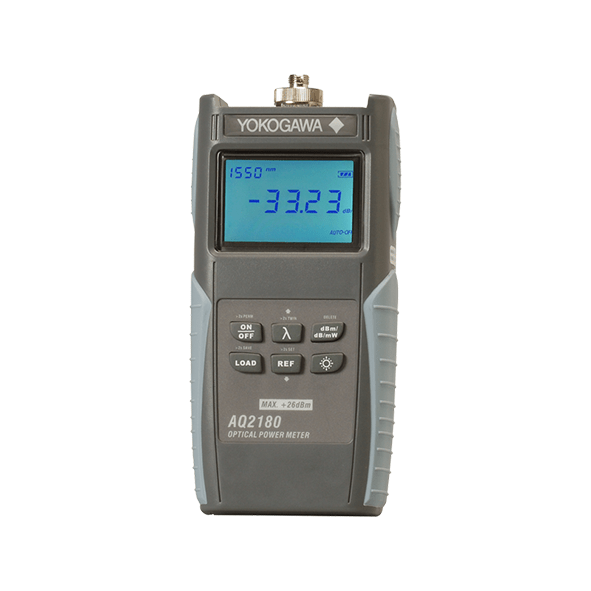

YOKOGAWA AQ2180 Series Portable Optical Power Meter (w/ data storage/transfer)
YOKOGAWA AQ2180 Series Portable Optical Power Meter (w/ data storage/transfer) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The compact and lightweight AQ2180 and AQ2180H optical power meters offer versatile data storage and transfer. Choose between two versions of portable electricity meters to suit test applications.
Pair the AQ2180 with the AW4280 to enable wavelength matching. The measurement wavelength on the AQ2180 can be set automatically according to the wavelength setting on the AQ4280. This feature can eliminate the extra steps to set the wavelength on the power meter and avoid improper measurements due to test wavelength mismatch.
JAPON MALI
FEATURES Two versions of Power Meters to suit test application +10 dBm max. power for Standard version (AQ2180), +26 dBm max. power for High power version (AQ2180H) Versatile data storage and transfer Large memory capacity stores up to 999 measurement results USB port offers convenient data transfer to a PC… Devamı
FEATURES
Two versions of Power Meters to suit test application
+10 dBm max. power for Standard version (AQ2180),
+26 dBm max. power for High power version (AQ2180H)
Versatile data storage and transfer
Large memory capacity stores up to 999 measurement results
USB port offers convenient data transfer to a PC in CSV format using the standard software supplied.
Auto switching of measurement wavelength
Wavelength is automatically selected when the AQ4280 and AQ2180 are paired together. This feature eliminates the the extra step to manually setup the power meter wavelength and eliminates possibility of invalid measurements due to misconfigured wavelengths.
Power source
Standard dry cell batteries are easily obtained. (type : AA)
Rechargeable batteries may also be used to reduce the operational cost. Auto power-saving feature also extends battery life.
Basic items included as standard accessories.
SC, FC or other connector adapter
(Removable for convenient access for cleaning)
AQ2180 : FC,SC, LC, Ferrule2.5φ , Ferrule1.25φ
– Rubber protector to prevent damage when dropped
– Carrying pouch to house unit and connector adapters
(Use the optional SU2006 pouch for housing the AQ2180 fitted with a protector)
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
İlgili ürünler
YOKOGAWA AQ2200-642 Transceiver I/F Module
The AQ2200-642 reduces the complexity and cost of 10G optical transceiver testing by combining bus and power control features into the same mainframe that performs Signal Generation, BERT and Optical testing. This allows a single programming interface to control all aspects of the transceiver test, simplifying test setup, decreasing test time and increasing productivity. The wiring complexity and test bench size are reduced by replacing separate Digital Multi-Meters, Programmable Power supplies and Serial I/F controllers with a single module.
JAPON MALI
YOKOGAWA AQ2200-312 Optical Attenuator Module
The AQ2200-312 is a variable optical attenuator type for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.
- Wide attenuation range:
- 0 to 60 dB (SM version)
- 0 to 45 dB (MM version)
- Wide wavelength range:
- 1200 to 1700 nm(SM version)
- 800 to 1370 nm (MM version)
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typical)
- Low polarization dependence loss: 0.1 dBp-p or less
- Monitor output (optional)
- Configure the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments
JAPON MALI

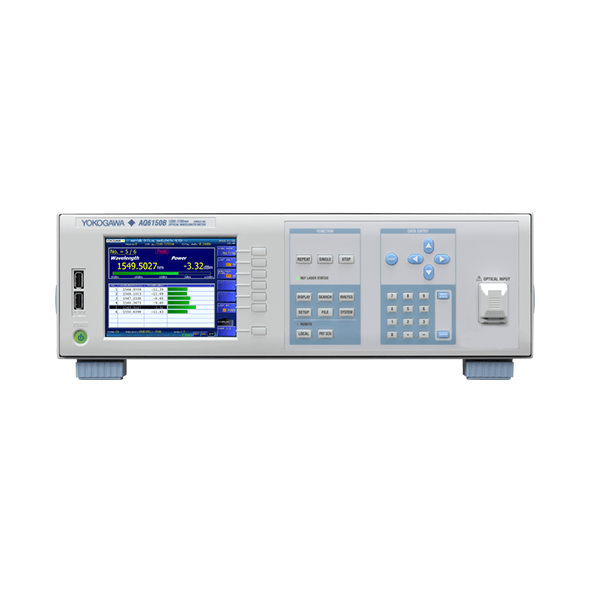

YOKOGAWA AQ6150B Optical Wavelength Meter
