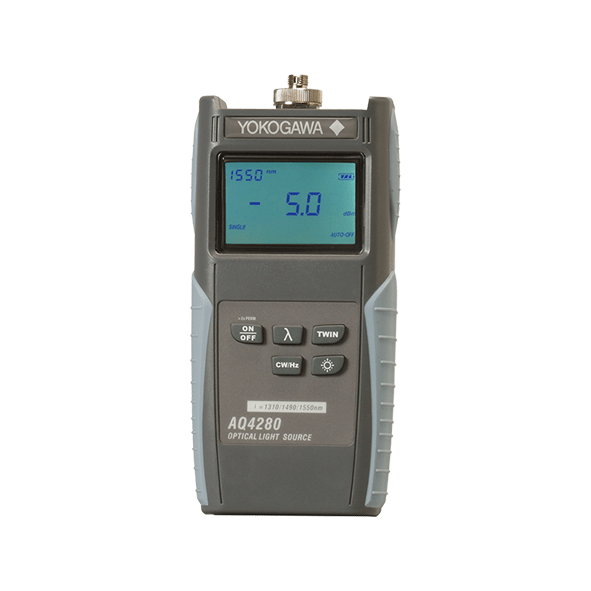

YOKOGAWA AQ4280 Series Portable Light Source
YOKOGAWA AQ4280 Series Portable Light Source hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
Three versions of Light Sources based on wavelengths.
JAPON MALI
FEATURES Three versions of Light Sources based on wavelengths. Three-wavelengths to address telecom service, plus additional wavelength for maintenance channel. AQ4280A ; 1310/1550nm AQ4280B ; 1310/1490/1550nm AQ4280C ; 1310/1550,1490/1625nm (2 ports) Auto switching of measurement wavelength Wavelength is automatically selected when the AQ4280 and AQ2180 are paired together. This feature… Devamı
FEATURES
Three versions of Light Sources based on wavelengths.
Three-wavelengths to address telecom service, plus additional wavelength for maintenance channel.
AQ4280A ; 1310/1550nm
AQ4280B ; 1310/1490/1550nm
AQ4280C ; 1310/1550,1490/1625nm (2 ports)
Auto switching of measurement wavelength
Wavelength is automatically selected when the AQ4280 and AQ2180 are paired together. This feature eliminates the the extra step to manually setup the power meter wavelength and eliminates possibility of invalid measurements due to misconfigured wavelengths.
Power source
Standard dry cell batteries are easily obtained. (type : AA)
Rechargeable batteries may also be used to reduce the operational cost. Auto power-saving feature also extends battery life.
Basic items included as standard accessories.
– SC, FC or other connector adapter
(Removable for convenient access for cleaning)
AQ4280 A/B/C : FC/PC, SC/PC, ST/PC
– Rubber protector to prevent damage when dropped
– Carrying pouch to house unit and connector adapters
(Use the optional SU2006 pouch for housing the AQ4280 fitted with a protector)
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
İlgili ürünler
YOKOGAWA FG400 Arbitrary izolasyon/Fonksiyon Üreteci
FG400, 0,01 µHz ila 30 MHz sinüs dalga frekans aralığı ile temel, uygulamaya özel ve arbitrary dalga formlarını kolayca oluşturur. Çıkış dalga biçimleri Sinüs, Kare, Darbe, Rampa, Parametre değişkeni, Gürültü (Gauss dağılımı), DC ve Arbitrary oluşur. Bu ünite, kullanıcının motor sürücüleri, invertörler, güç kaynakları ve diğer güç elektroniği cihazları gibi yüzer devrelerin geliştirilmesinde kullanmasına izin veren izole çıkışlar içerir. Ek olarak, 12 faza kadar çıktı üretmek için birden fazla ünite birlikte senkronize edilebilir.
JAPON MALI
YOKOGAWA AQ2200-421 Optical Switch Module (1 x 2/2 x 2)
- Compact: Optical switches of 1 x 2 or 2 x 2 port configuration in a one-slot size module
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typ.)
- High switching reproducibility: within ±0.01 dB
- Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems
JAPON MALI
YOKOGAWA AQ2200-212 Sensor Module (800 to 1700 nm)

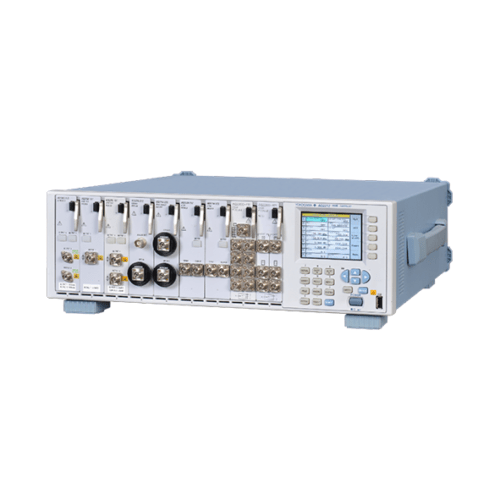

YOKOGAWA AQ2212 Frame Controller (9 Slots)
