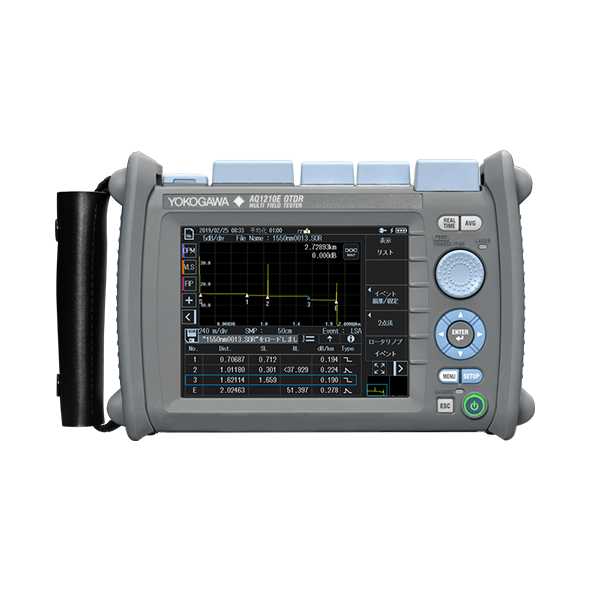

YOKOGAWA AQ1210 Series Optical Time Domain Reflectometer
YOKOGAWA AQ1210 Series Optical Time Domain Reflectometer hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The Yokogawa AQ1210 series OTDR tester is designed to empower field technicians to make fast and precise measurements with confidence. The AQ1210 optical time domain reflectometer delivers high reliability with its robust design for operating under harsh field conditions. Engineered with innovative technology, the AQ1210 features dual operation mode by multi-touch touchscreen and hard-key buttons as well as fully automatic measurement and easy-to-read analysis reports through new software applications. In addition, the AQ1210 enhances productivity and operability with its lightning startup time, multi-tasking operation, and immediate reporting via wireless connectivity.
JAPON MALI
FEATURES 7 types of Model lineup Seven models ideal for installation and maintenance of various optical communication access networks Compact body with long hour operation Footprint approx. size of A5 paper, weight of 1 kg (2.2 Lbs.) 10 hours battery operation Intuitive operation by touch and hard keys The AQ1210… Devamı
FEATURES
7 types of Model lineup
Seven models ideal for installation and maintenance of various optical communication access networks
Compact body with long hour operation
Footprint approx. size of A5 paper, weight of 1 kg (2.2 Lbs.)
10 hours battery operation
Intuitive operation by touch and hard keys
The AQ1210 features a capacitive multi-touch touchscreen, 5.7-inch LCD, and a “field use” friendly rotary dial.
Connectivity
Data transfer and remote control via Wi-Fi or ETHERNET connection.
Enhanced OTDR performance
Measurement of PON systems with up to 128 splits
Hi-Speed real-time measurement
Functions and features for improved work efficiency
Multi-fiber measurement, Smart mapper function, PDF reporting
Much more than an OTDR
A variety of optional features for multi-tasking.
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
İlgili ürünler
YOKOGAWA AQ2200-312 Optical Attenuator Module
The AQ2200-312 is a variable optical attenuator type for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.
- Wide attenuation range:
- 0 to 60 dB (SM version)
- 0 to 45 dB (MM version)
- Wide wavelength range:
- 1200 to 1700 nm(SM version)
- 800 to 1370 nm (MM version)
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typical)
- Low polarization dependence loss: 0.1 dBp-p or less
- Monitor output (optional)
- Configure the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments
JAPON MALI

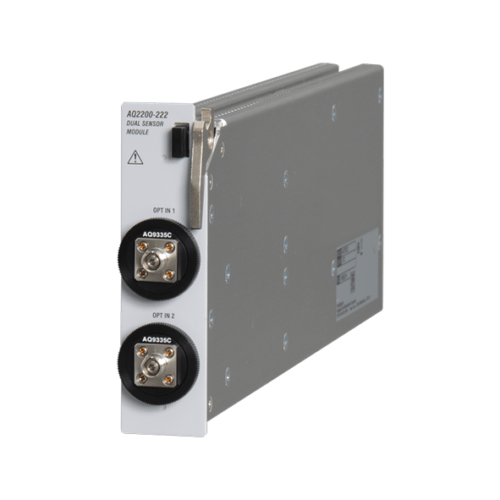

YOKOGAWA AQ2200-222 Dual Sensor Module (800 to 1700 nm)
The AQ2200-222 is a high-performance yet compact module equipped with two sensors. The module offers high-speed sampling, low polarization dependency, and rich data processing capabilities for improved measurement throughput and low-cost multi-port measurement. With two high-performance sensors in one slot, this Optical Power Meter Sensor Module is ideal for space-saving, multi-port measurements.
JAPON MALI
YOKOGAWA AQ6150B Optical Wavelength Meter
The AQ6150B Optical Wavelength Meter is an ideal instrument for accurately measuring the optical wavelength of optical devices and systems with wavelength ranges from 900 nm to 1700 nm. By employing a Michelson interferometer and a high speed Fast Fourier Transform (FFT) algorithm, the AQ6150B can measure not only a single wavelength laser signal, but also a multiple wavelength laser signal from a DWDM system and Fabry-Perot laser. Furthermore, this technology enables the measurement of modulated laser signals in addition to the CW signal from an optical transceiver. The optimized optical design and data processing routine significantly reduces the measurement time and improves manufacturing throughput.
- Wavelength accuracy: ±0.7 ppm
- Wavelength range (3 types): 900-1700nm, 1200-1700nm, 1270-1650nm
- Measurement time of 0.2 seconds or less
- Up to 1024 wavelengths can be measured at once
- Single wavelength type and multi wavelength type
- Support modulated light and filter measurement
JAPON MALI
YOKOGAWA AQ7280 Modular Optical Time Domain Reflectometer
Responding to the growing needs for reliable and ease-of-use field test instruments for installation and maintenance of fiber optic networks, Yokogawa AQ7280 Optical Time Domain Reflectometer (OTDR) is designed to empower field technicians to make fast and precise measurements with confidence. The AQ7280 satisfies a broad range of test and measurement needs in analyzing optical networks from access to core.
The AQ7280 is the most flexible OTDR in our lineup due to a modular platform to create a variety of systems from a basic unit to units with filtered ports to test live traffic networks in applications from long haul, to metro, core and FTTH.
40+ years of OTDR expertise has enabled us to offer a unique multi-tasking feature that allows four distinct fibers to be tested simultaneously. Its intuitive icon-based touchscreen lets users perform measurements with ease, and the 15-hour battery life ensures uninterrupted usage in the field where the data can be conveniently transferred wirelessly.
JAPON MALI
YOKOGAWA AQ1000 Entry Level Optical Time Domain Reflectometer
This AQ1000 is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH). Although it is positioned as an entry-level model, it still retains Yokogawa’s established standards of quality/reliability for ODTR manufacturers and features characteristics which are usually present in higher-level models, such as a high-quality capacitive multi-touch touchscreen and wireless connectivity.
For the AQ1000 ODTR's price, request a quote.
JAPON MALI
