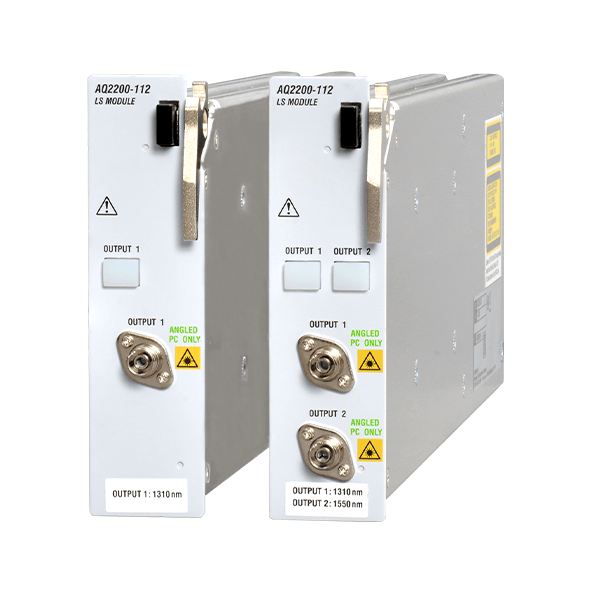

YOKOGAWA AQ2200-112 Light Source Module (DFB, 1/2 channels)
YOKOGAWA AQ2200-112 Light Source Module (DFB, 1/2 channels) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The AQ2200-112 is a light source module with high output level stability performance, it is suitable for testing the performance of passive optical components as well as calibration of optical power meters.
JAPON MALI
FEATURES Laser type: DFB-LD Wavelength: 1310, 1550, 1625 or 1650 nm 1 channel or 2 channels Optical output level: +10 dBm or more Output level stability: ±0.005 dB or less） Coherent control: Narrow or wide Examples of Measurement Application Multicore fiber loss measurement Devamı
FEATURES
Laser type: DFB-LD
- Wavelength: 1310, 1550, 1625 or 1650 nm
- 1 channel or 2 channels
- Optical output level: +10 dBm or more
- Output level stability: ±0.005 dB or less）
- Coherent control: Narrow or wide
Examples of Measurement Application
- Multicore fiber loss measurement
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
