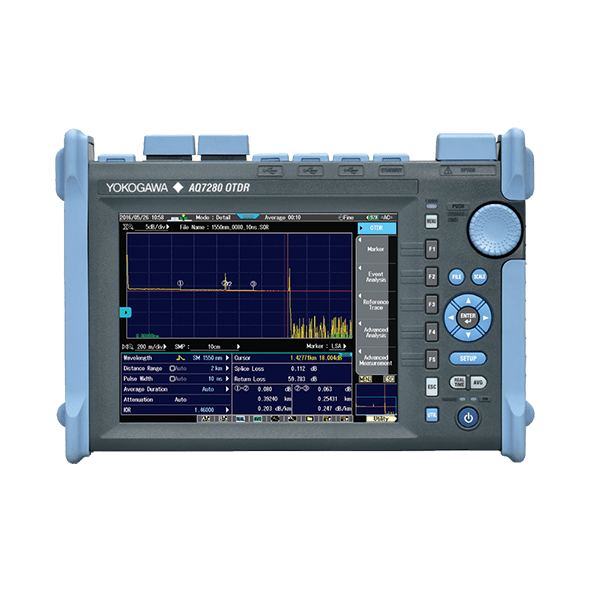

YOKOGAWA AQ7280 Modular Optical Time Domain Reflectometer
YOKOGAWA AQ7280 Modular Optical Time Domain Reflectometer hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
Responding to the growing needs for reliable and ease-of-use field test instruments for installation and maintenance of fiber optic networks, Yokogawa AQ7280 Optical Time Domain Reflectometer (OTDR) is designed to empower field technicians to make fast and precise measurements with confidence. The AQ7280 satisfies a broad range of test and measurement needs in analyzing optical networks from access to core.
The AQ7280 is the most flexible OTDR in our lineup due to a modular platform to create a variety of systems from a basic unit to units with filtered ports to test live traffic networks in applications from long haul, to metro, core and FTTH.
40+ years of OTDR expertise has enabled us to offer a unique multi-tasking feature that allows four distinct fibers to be tested simultaneously. Its intuitive icon-based touchscreen lets users perform measurements with ease, and the 15-hour battery life ensures uninterrupted usage in the field where the data can be conveniently transferred wirelessly.
JAPON MALI
FEATURES Modular OTDR The AQ7280 OTDR offers first-class performance thanks to updated functions, a large capacity battery, and a large user-friendly screen. Additional benefits that ensure measurement quality and improve work efficiency include: Full range of selections Up to 15 OTDR units to choose from Customizable with five optional modules… Devamı
FEATURES
Modular OTDR
The AQ7280 OTDR offers first-class performance thanks to updated functions, a large capacity battery, and a large user-friendly screen.
Additional benefits that ensure measurement quality and improve work efficiency include:
Full range of selections
- Up to 15 OTDR units to choose from
- Customizable with five optional modules
- 90 potential combinations*1
Proven reliability
- High SNR mode ensures high trace quality.
- Maximum 15 hours battery operation
Quick and easy to use
- 4-inch high luminance color LCD
- Smartphone-like usability
Operability
- Multi-fiber measurement up to 2000 fibers
- Auto-execute multiple measurements and analyses with Smart Mapper
Much more than an OTDR
- A variety of optional features for multi-tasking
- Application software that facilitates analysis
*1 This includes combinations with the cover bracket instead of OPM (Optical Power Meter)/VLS (Visible Light Source) modules.
Touch panel application menu
The 8.4-inch touchscreen enables intuitive operation. Select the desired function by simply tapping the icon on the main menu.
No special tools needed
The hardware for the OTDR units, option modules, and battery cover can be removed and put back using common work tools, even coins, to allow for quick and easy replacements and tweaks even when in the field.
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
İlgili ürünler
YOKOGAWA FG400 Arbitrary izolasyon/Fonksiyon Üreteci
FG400, 0,01 µHz ila 30 MHz sinüs dalga frekans aralığı ile temel, uygulamaya özel ve arbitrary dalga formlarını kolayca oluşturur. Çıkış dalga biçimleri Sinüs, Kare, Darbe, Rampa, Parametre değişkeni, Gürültü (Gauss dağılımı), DC ve Arbitrary oluşur. Bu ünite, kullanıcının motor sürücüleri, invertörler, güç kaynakları ve diğer güç elektroniği cihazları gibi yüzer devrelerin geliştirilmesinde kullanmasına izin veren izole çıkışlar içerir. Ek olarak, 12 faza kadar çıktı üretmek için birden fazla ünite birlikte senkronize edilebilir.
JAPON MALI
YOKOGAWA AQ2200-642 Transceiver I/F Module
The AQ2200-642 reduces the complexity and cost of 10G optical transceiver testing by combining bus and power control features into the same mainframe that performs Signal Generation, BERT and Optical testing. This allows a single programming interface to control all aspects of the transceiver test, simplifying test setup, decreasing test time and increasing productivity. The wiring complexity and test bench size are reduced by replacing separate Digital Multi-Meters, Programmable Power supplies and Serial I/F controllers with a single module.
JAPON MALI
YOKOGAWA AQ2200-212 Sensor Module (800 to 1700 nm)

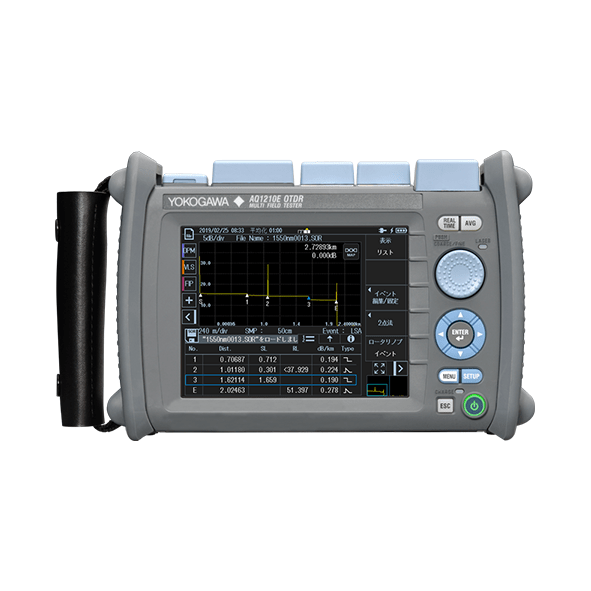

YOKOGAWA AQ1210 Series Optical Time Domain Reflectometer
