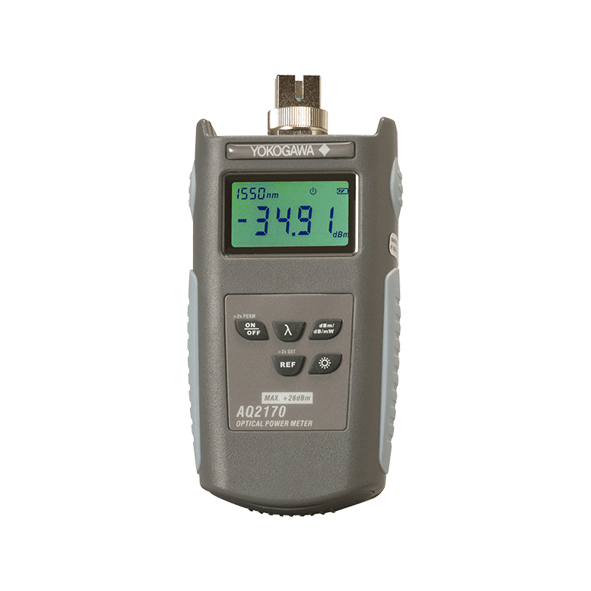

YOKOGAWA AQ2170 Series Portable Optical Power Meter (Simple & Compact)
YOKOGAWA AQ2170 Series Portable Optical Power Meter (Simple & Compact) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The compact and lightweight AQ2170 Series portable optical fiber power meter is battery-operated with auto wavelength matching and versatile data storage/transfer. It’s a mini, simple meter for optical loss measurements on optical fiber cables
JAPON MALI
FEATURES The AQ2170 series portable optical power meters are lightweight and mobile, power-saving, rechargeable, and impact resistant. The AQ2170 has seven wavelengths, and the AQ2170H has five. Devamı
FEATURES
The AQ2170 series portable optical power meters are lightweight and mobile, power-saving, rechargeable, and impact resistant. The AQ2170 has seven wavelengths, and the AQ2170H has five.
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
İlgili ürünler
YOKOGAWA AQ1300 Series 1G/10G Ethernet Multi Field Tester
The handheld AQ 1300 ethernet field tester for network path testing and maintenance is designed to improve work efficiency and quality. The AQ1300 offers excellent functionality and operability optimized for field testing. It's easy to operate, which prevents operational errors and stabilizes work quality for routine tasks such as network path testing. Powerful analysis functions help isolate failures during maintenance work.
JAPON MALI
YOKOGAWA AQ2200-332 Optical Attenuator module
- Compact: The AQ2200-332 features an optical variable attenuator and an optical power meter for monitoring the optical output power in a one-slot module. Ideal for bit error testing
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Attenuation accuracy: within ±0.1 dB
- With the output monitoring function, the AQ2200-332 allows direct setup of optical power at the output terminals
- Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems
JAPON MALI
YOKOGAWA AQ2200-312 Optical Attenuator Module
The AQ2200-312 is a variable optical attenuator type for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.
- Wide attenuation range:
- 0 to 60 dB (SM version)
- 0 to 45 dB (MM version)
- Wide wavelength range:
- 1200 to 1700 nm(SM version)
- 800 to 1370 nm (MM version)
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typical)
- Low polarization dependence loss: 0.1 dBp-p or less
- Monitor output (optional)
- Configure the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments
JAPON MALI
YOKOGAWA AQ6150B Optical Wavelength Meter
The AQ6150B Optical Wavelength Meter is an ideal instrument for accurately measuring the optical wavelength of optical devices and systems with wavelength ranges from 900 nm to 1700 nm. By employing a Michelson interferometer and a high speed Fast Fourier Transform (FFT) algorithm, the AQ6150B can measure not only a single wavelength laser signal, but also a multiple wavelength laser signal from a DWDM system and Fabry-Perot laser. Furthermore, this technology enables the measurement of modulated laser signals in addition to the CW signal from an optical transceiver. The optimized optical design and data processing routine significantly reduces the measurement time and improves manufacturing throughput.
- Wavelength accuracy: ±0.7 ppm
- Wavelength range (3 types): 900-1700nm, 1200-1700nm, 1270-1650nm
- Measurement time of 0.2 seconds or less
- Up to 1024 wavelengths can be measured at once
- Single wavelength type and multi wavelength type
- Support modulated light and filter measurement
JAPON MALI
