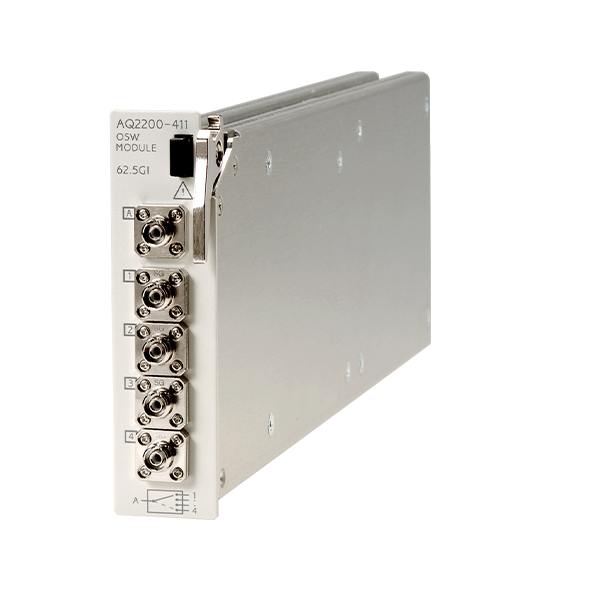

YOKOGAWA AQ2200-411 Optical Switch Module (1 x 4/1 x 8)
YOKOGAWA AQ2200-411 Optical Switch Module (1 x 4/1 x 8) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
- Compact: Optical switches of 1 x 4 or 1 x 8 port configuration in a one-slot size module
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typ.)
- High switching reproducibility: within ±0.01 dB
- Can be combined with various AQ2200 series modules or other Yokogawa’s optical communication measuring instruments to build versatile measuring systems
JAPON MALI
FEATURES The AQ2200-411 OSW module is a space-saving optical switch featuring low insertion loss and superior switching reproducibility, and allows selection of 1 x 4 or 1 x 8 port configuration according to the application. Moreover, the optical fiber type can also be selected between SMF(10/125µm) and MMF(50/125 µm, 62.5/125… Devamı
Açıklama
FEATURES
The AQ2200-411 OSW module is a space-saving optical switch featuring low insertion loss and superior switching reproducibility, and allows selection of 1 x 4 or 1 x 8 port configuration according to the application.
Moreover, the optical fiber type can also be selected between SMF(10/125µm) and MMF(50/125 µm, 62.5/125 µm), allowing a wide range of measuring systems to be built corresponding to the systems or devices used in optical public networks or optical LANs.
Ürün Özellikleri
Ürün Özellikleri
Teknik Özellikler
Teknik Özellikler
Aksesuarlar
Aksesuarlar
YOKOGAWA Hakkında
Japonya merkezli küresel bir teknoloji lideri olan Yokogawa, endüstriyel tesisler için gelişmiş proses otomasyonu ve kontrol sistemleri sağlamanın yanı sıra, Ar-Ge ve üretim süreçleri için yüksek hassasiyetli güç analizörleri, osiloskoplar ve veri toplama sistemleri gibi test ve ölçüm ekipmanları üreten bir markadır.
