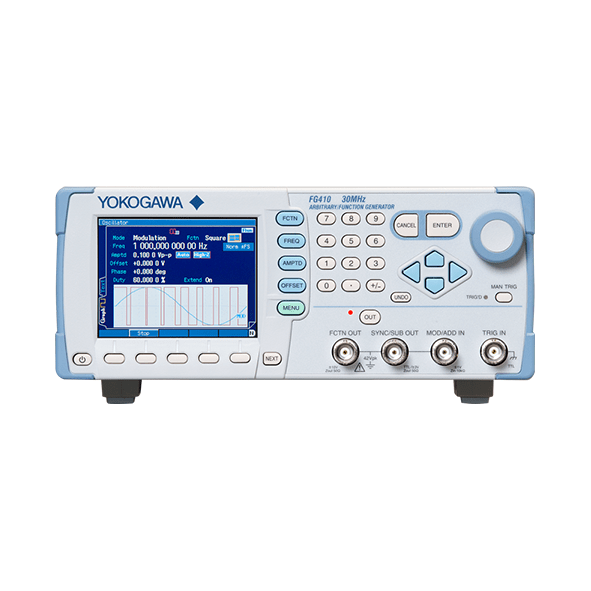

YOKOGAWA FG400 Arbitrary izolasyon/Fonksiyon Üreteci
YOKOGAWA FG400 Arbitrary izolasyon/Fonksiyon Üreteci hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
FG400, 0,01 µHz ila 30 MHz sinüs dalga frekans aralığı ile temel, uygulamaya özel ve arbitrary dalga formlarını kolayca oluşturur. Çıkış dalga biçimleri Sinüs, Kare, Darbe, Rampa, Parametre değişkeni, Gürültü (Gauss dağılımı), DC ve Arbitrary oluşur. Bu ünite, kullanıcının motor sürücüleri, invertörler, güç kaynakları ve diğer güç elektroniği cihazları gibi yüzer devrelerin geliştirilmesinde kullanmasına izin veren izole çıkışlar içerir. Ek olarak, 12 faza kadar çıktı üretmek için birden fazla ünite birlikte senkronize edilebilir.
JAPON MALI
AÇIKLAMA FG410: 1 kanal. FG420: 2 kanal Çıkış dalga biçimleri: Sinüs, Kare, Darbe, Rampa, Parametre değişkenli dalga biçimi, gürültü, DC ve Rastgele dalga biçimleri Frekans aralığı: Sinüs dalgası 0,01 µHz - 30 MHz Genlik çözünürlüğü: 16 bit Örnekleme oranı: 120 MS/s Çıkış: 0 ila 20 Volt, tepeden tepeye 12 adede… Devamı
AÇIKLAMA
FG410: 1 kanal. FG420: 2 kanal
Çıkış dalga biçimleri: Sinüs, Kare, Darbe, Rampa, Parametre değişkenli dalga biçimi, gürültü, DC ve Rastgele dalga biçimleri
Frekans aralığı: Sinüs dalgası 0,01 µHz – 30 MHz
Genlik çözünürlüğü: 16 bit
Örnekleme oranı: 120 MS/s
Çıkış: 0 ila 20 Volt, tepeden tepeye
12 adede kadar çıkış kanalı sağlamak için 6 adede kadar üniteyi senkronize edin
GPIB ve USB Arayüzü
Yokogawa’nın ScopeCorder ve DL Serisi Osiloskopları tarafından XviewerLITE yazılımıyla elde edilen dalga formları oluşturun
Bu enstrüman için garanti süresi 3 yıldır
Ürün Özellikleri
Teknik Özellikler
Aksesuarlar
İlgili ürünler
YOKOGAWA AQ2200-411 Optical Switch Module (1 x 4/1 x 8)
- Compact: Optical switches of 1 x 4 or 1 x 8 port configuration in a one-slot size module
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typ.)
- High switching reproducibility: within ±0.01 dB
- Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems
JAPON MALI
YOKOGAWA AQ2200-312 Optical Attenuator Module
The AQ2200-312 is a variable optical attenuator type for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.
- Wide attenuation range:
- 0 to 60 dB (SM version)
- 0 to 45 dB (MM version)
- Wide wavelength range:
- 1200 to 1700 nm(SM version)
- 800 to 1370 nm (MM version)
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Low insertion loss: 1.0 dB (typical)
- Low polarization dependence loss: 0.1 dBp-p or less
- Monitor output (optional)
- Configure the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments
JAPON MALI
YOKOGAWA AQ2211 Frame Controller (3 Slots)
The AQ2211 and AQ2212 frame controllers are platforms for the AQ2200 Multi Application Test System. These frame controllers contain a variety of measurement applications that enable you to get the information you need without connecting an external controller PC. In addition, they have three different external interfaces, so you can always use the best interface for a particular measurement application.
JAPON MALI
YOKOGAWA AQ6151B Optical Wavelength Meter
The AQ6151B Optical Wavelength Meter is an ideal instrument for accurately measuring the optical wavelength of optical devices and systems with wavelength ranges from 900 nm to 1700 nm. By employing a Michelson interferometer and a high speed Fast Fourier Transform (FFT) algorithm, the AQ6151B can measure not only a single wavelength laser signal, but also a multiple wavelength laser signal from a DWDM system and Fabry-Perot laser. Furthermore, this technology enables the measurement of modulated laser signals in addition to the CW signal from an optical transceiver. The optimized optical design and data processing routine significantly reduces the measurement time and improves manufacturing throughput.
- High wavelength accuracy: ±0.2 ppm
- Wavelength range (3 types): 900-1700nm, 1200-1700nm, 1270-1650nm
- Measurement time of 0.2 seconds or less
- Up to 1024 wavelengths can be measured at once
- Single wavelength type and multi wavelength type
- Support modulated light and filter measurement
JAPON MALI

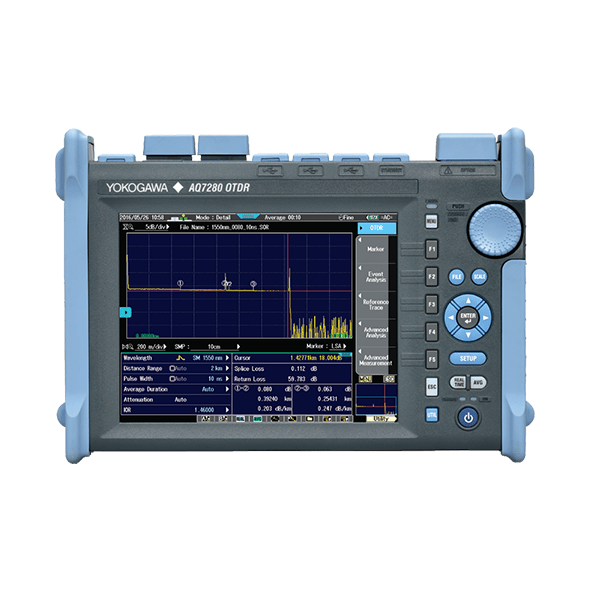

YOKOGAWA AQ7280 Modular Optical Time Domain Reflectometer
