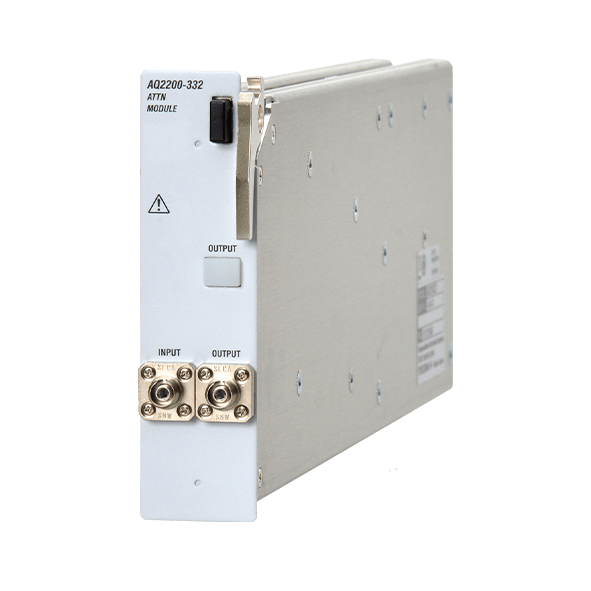

YOKOGAWA AQ2200-332 Optical Attenuator module
FİYAT TEKLİFİ İÇİN TIKLAYIN!- Compact: The AQ2200-332 features an optical variable attenuator and an optical power meter for monitoring the optical output power in a one-slot module. Ideal for bit error testing
- Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
- Attenuation accuracy: within ±0.1 dB
- With the output monitoring function, the AQ2200-332 allows direct setup of optical power at the output terminals
- Can be combined with various AQ2200 series modules or other Yokogawa’s optical communication measuring instruments to build versatile measuring systems
JAPON MALI
FEATURES The compact AQ2200-332 ATTN module features an optical variable attenuator and an optical power meter monitoring the output power of the optical variable attenuator. The optical monitoring function allows an optical output of any absolute value to be set up from this module. Moreover, the optical fiber type can… Devamı
Açıklama
FEATURES
The compact AQ2200-332 ATTN module features an optical variable attenuator and an optical power meter monitoring the output power of the optical variable attenuator. The optical monitoring function allows an optical output of any absolute value to be set up from this module.
Moreover, the optical fiber type can also be selected between SMF(10/125 µm) and MMF(50/125 µm, 62.5/125 µm), allowing a wide range of measuring systems to be built for systems or devices in optical public networks or optical LANs.
Ürün Özellikleri
Ürün Özellikleri
Teknik Özellikler
Teknik Özellikler
Aksesuarlar
Aksesuarlar
Fiyat Teklifi
