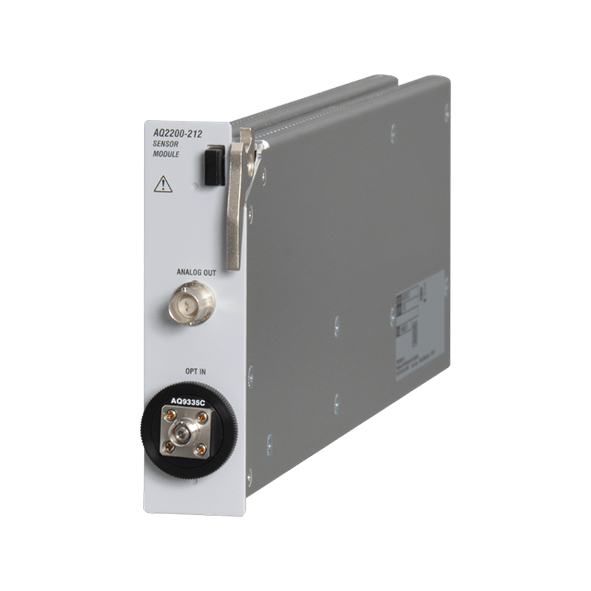

YOKOGAWA AQ2200-212 Sensor Module (800 to 1700 nm)
YOKOGAWA AQ2200-212 Sensor Module (800 to 1700 nm) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The AQ2200-212 is high-performance single channel sensor module with an analog output port.
JAPON MALI.
FEATURE High-performance sensor with an analog output port. Wide wavelength range: 800 to 1700 nm Wide power range: -90 to +15 dBm High-speed measurement: 100 µs (minimum sampling period) Optical connector compatibility: FC, SC, MU, and LC Can be combined with various AQ2200 series modules or other Yokogawa's optical communication… Devamı
Açıklama
FEATURE
High-performance sensor with an analog output port.
- Wide wavelength range: 800 to 1700 nm
- Wide power range: -90 to +15 dBm
- High-speed measurement: 100 µs (minimum sampling period)
- Optical connector compatibility: FC, SC, MU, and LC
- Can be combined with various AQ2200 series modules or other Yokogawa’s optical communication measuring instruments to build versatile measuring systems
Ürün Özellikleri
Ürün Özellikleri
Teknik Özellikler
Teknik Özellikler
Aksesuarlar
Aksesuarlar
YOKOGAWA Hakkında
Japonya merkezli küresel bir teknoloji lideri olan Yokogawa, endüstriyel tesisler için gelişmiş proses otomasyonu ve kontrol sistemleri sağlamanın yanı sıra, Ar-Ge ve üretim süreçleri için yüksek hassasiyetli güç analizörleri, osiloskoplar ve veri toplama sistemleri gibi test ve ölçüm ekipmanları üreten bir markadır.
