YOKOGAWA AQ2212 Frame Controller (9 Slots)
YOKOGAWA AQ2212 Frame Controller (9 Slots) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The AQ2211 and AQ2212 frame controllers are platforms for the AQ2200 Multi Application Test System. These frame controllers contain a variety of measurement applications that enable you to get the information you need without connecting an external controller PC. In addition, they have three different external interfaces, so you can always use the best interface for a particular measurement application.
- Easy-to-view color display
- USB port for data storage
- Measurement module “hot-swapping” capability
- Remote monitoring and measurement through a LAN
- See latest AQ2212 Frame Controller firmware update
JAPON MALI
FEATURES The AQ2211 and AQ2212 both have a 320×240-dot, wide-viewing-angle, high-resolution color TFT display for easy viewing. Even detailed graphs are easy to view on this display. AQ2211 frame controller AQ2212 frame controller Display screen showing all installed modules Multi User Function Up to 5 users can access to a… Devamı
FEATURES
The AQ2211 and AQ2212 both have a 320×240-dot, wide-viewing-angle, high-resolution color TFT display for easy viewing. Even detailed graphs are easy to view on this display.
AQ2211 frame controller

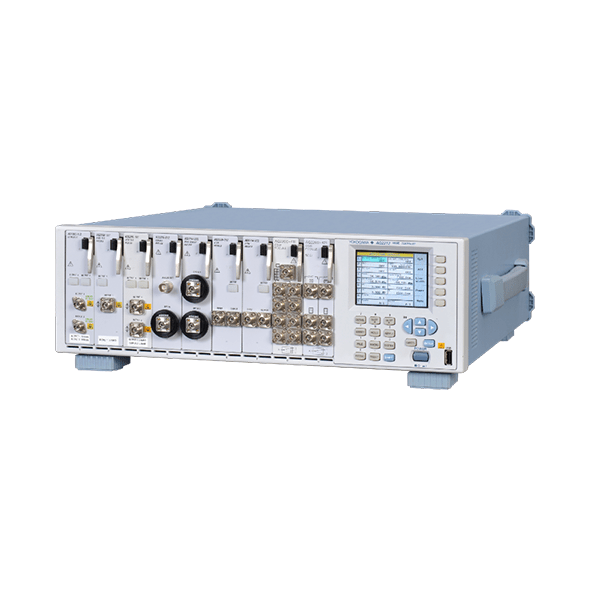

AQ2212 frame controller
Display screen showing all installed modules
Multi User Function
Up to 5 users can access to a frame controller simultaneously.
Possible to control individual modules.
Macro Programming Function
Easy way to build auto-measurement systems, not requiring an external PC to run.
Easy programming with Macro editor, PC application software.
USB port for data storage
The USB port located on the front panel makes it easy to quickly save and load data. Measurements are saved in CSV format, so they can be easily imported into almost any PC application.
Measurement module “hot-swapping” capability
Measurement modules can be inserted or removed without turning off the power. This hot-swapping capability makes it easier to reconfigure your system. (warm-up time still required to ensure accurate measurements.)
Remote monitoring and measurement through a LAN
The AQ2211 and AQ2212 support USB and Ethernet as well as GP-IB, which is the standard interface for measuring instruments. Ethernet support makes remote monitoring and control even easier.
Quick Response in Remote Control
Fast remote command processing
Fast LAN: 100BASE-TX compatible
Remote Viewer Software
Displays the frame controller screen on PC.
Controls the frame as if operating on the real frame.
*The remote viewer software (free software) can be downloaded from our web side.
