Açıklama

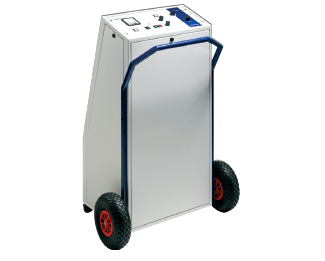

The P24a is an advanced HV cable fault locator for applications in LV and MV cable networks up to 24kV. The system allows proof testing (HV DC) and pinpointing (Surge) cable faults. In addition, the integrated inductive Arc Reflection Technology (ARTi) module enables the HV pre-location of high resistant faults in combination with an external TDR such as the InterFlex 140. Operation and parameter setting is controlled electronically for ease of use. A built-in discharge unit provides safety for the instrument, the operator and the device under test.
Moreover, featuring a powerful three range surge unit with 1000 Joule each level, the P24a provides extended locating capability over a wide network voltage range in a still portable design. For precise pinpointing the optionally available electro-acoustic sensor Kamphone is used for flash-over faults while the Locator S is used for pinpointing cable sheath faults based on the step-voltage method. As an economic alternative, the version P24e is offered without integrated ARTi.
Features
- High 1000J Multi-Range Output
- Portable & Easy Deployable Design
- Integrated ARTi Technology For Pre-Location with Extra TDR
