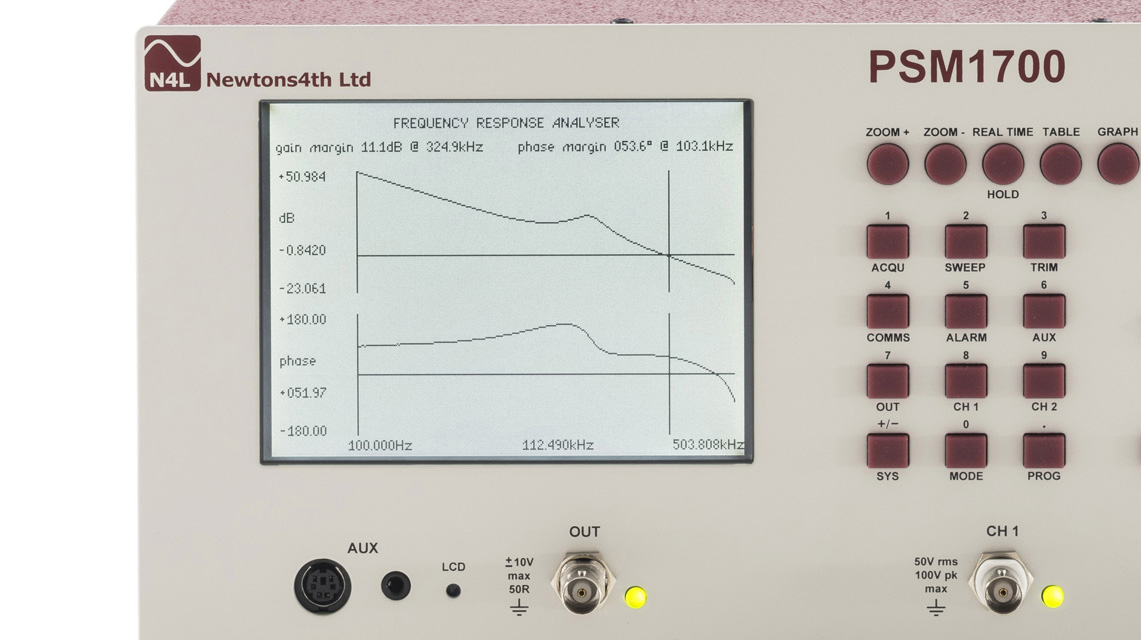

Newtons4th PSM1700 Frekans Tepkisi Analizörü
10µHz–1MHz Çok Yönlü Yüksek Performanslı Kazanç/Faz Frekans Tepkisi Analizörü

PSM1700 PsimetriQ, Ar-Ge ve üretim testi uygulamaları için kapsamlı bir DFT ve gerçek RMS analiz aracıdır. Aralarında anahtarlamalı mod güç kaynağı geri besleme döngüsü kararlılık analizi ve filtrelerin genel frekans tepkisi analizinin de bulunduğu bir dizi kazanç/faz analizi uygulamaları özellikle hedeflenmiştir. Gerçek zamanlı değerleri veya grafikleri veya tabloları gösteren net, parlak bir grafik ekrana sahiptir. Opsiyonel olarak RS232 veya LAN üzerinden tamamen uzaktan kumanda ile çalıştırılabilir. IAI (Empedans Analizi Arayüzü) ile birleştirildiğinde PSM, yüksek doğruluklu bir 1MHz Empedans Analizörü/LCR ölçer haline gelir. Optimum performans, ölçüm hızı ve rahatlık sağlamak için tasarlanmıştır, uygun maliyetli ve kullanımı kolay bir tezgah üstü cihazda gelişmiş ölçüm yeteneği sağlar.

Control Loop

Stability

Analysis

Transistor

Performance

Analysis

Filter Design

Audio Amplifier

Design

OptoCoupler

Evaluation

Coax Cable

Frequency

Response

LDO Regulator

Evaluation

Signal Transformer

Performance

Evaluation

Cross Talk

Testing

RFI/EMC Filter

Design

MEASUREMENT SPECIFICATIONS
FREQUENCY RESPONSE ANALYSER
Measurement	Magnitude, Gain (CH1/CH2 or CH2/CH1), Gain (dB), Offset Gain (dB), Phase (⁰)
Frequency Range	10μHz to 1MHz 20mHz to 500kHz with External Source
Gain Accuracy in dB	0.02dB < 1kHz 0.05dB < 10kHz 0.1dB + 0.003⁰/kHz < 1MHz
Phase Accuracy	0.02⁰ < 10kHz 0.02⁰ + 0.003⁰/kHz < 1MHz
Frequency Source	Generator or CH1 Input
Measurement	Real Time DFT, no missing data
Speed	Up to 100 readings per second
Filter	Selectable from 0.2 seconds
Resolution	5 or 6 digits
VECTOR VOLTMETER
Measurement	In-Phase, Quadrature, Tan Φ, Magnitude, Phase, In-Phase Ratio, rms, rms ratio, LVDT Differential, LVDT Ratiometric
Frequency Range	10μHz to 1MHz 20mHz to 500kHz with External Source
Basic Accuracy (ac)	0.05% range + 0.05% reading + 0.05mV < 1kHz Basic + 0.02%/kHz < 10kHz Basic + 0.2% + 0.002%/kHz < 1MHz
LCR METER
Functions	L, C, R (ac), Q, tan delta, impedance, phase – Series or Parallel circuit
Frequency Range	10μHz to 1MHz
Current Shunt	External or N4L active head or IAI (Impedance Analysis Interface)
LCR Measurement Functions
Resistance (R)	1mOhm to 500MOhm
Reactance (X)	1mOhm to 500MOhm
Impedance (Z)	1mOhm to 500MOhm
Capacitance Value (Cp & Cs)	1pF to 1mF
Phase Angle	0 to 360 deg with 0.001 degree resolution
Q. Factor	+/- 0.00001 ~ 9999.99
Tan Delta (Reciprocal of Q, also known as Dissipation Factor D)	+/- 0.00001 ~ 9999.99
Admittance (Y) reciprocal of impedance (Siemens)	+/- 2nS to 1KS
Conductance (G) resistive part of admittance (Siemens)	+/- 2nS to 1KS
Susceptance (B) reactive part of admittance (Siemens)	+/- 2nS to 1KS
Voltage Bias	+/- 10V
Ranges – LCR Head	Inductance – 100nH to 10kH Capacitance – 10pF to 1000μF Resistance – 10mΩ to 100MΩ
Ranges – IAI	Inductance – 10nH to 10kH Capacitance – 1pF to 1000μF Resistance – 1mΩ to 500MΩ
Basic Accuracy	0.1% + tolerance of selected current shunt
Sweep Capability	All ac functions
Channels	2
Frequency Range	DC to 1MHz
Measurement	rms, ac, dc, peak, cf, surge, dBm
Basic Accuracy (ac)	As VVM + 0.2mV
Accuracy (dc)	0.1% range + 0.1% reading + 1mV
IAI Impedance Analysis Interface
Frequency Range	DC to 1MHz
Basic Accuracy	0.1% < 1kHz 0.2% + 0.002% / kHz < 1MHz
Internal Shunt Phase Accuracy	Low 5Ω 0.1deg + 0.01deg / kHz Normal 50Ω 0.05deg + 0.005deg / kHz High 5kΩ 0.05deg + 0.005deg / kHz Very High 500kΩ 0.1deg + 0.05deg / kHz
Power Source	90-264V rms 47-64Hz
POWER METER
Measurements	W, VA, PF, V, A, total, fundamental and integrated, power harmonics
Frequency Range	20mHz to 1MHz
Current Shunt	External or use N4L power adaptor
Current Accuracy	As Voltage + external shunt tolerance
Watts Accuracy	0.15% VA range + 0.15% reading + external shunt tolerance
HARMONIC ANALYSER
Scan	Single or Series
Frequency Range	10μHz to 1MHz
Measurement	Harmonic, series THD or difference THD
Max Harmonic	50
SYSTEM SPECIFICATIONS
INPUT RANGES
Inputs	2 Differential
Connectors	Isolated BNC
Coupling	ac or ac+dc
Max Input	100Vpk from earth
Input Ranges	100V, 30V, 10V, 3V, 1V, 300mV, 100mV, 30mV, 10mVpk
Scaling	1 x 10^-9 to 1 x 10^9
Ranging	Full auto, Up only or manual
Input Impedance	1M // 50pF (exc leads)
SIGNAL GENERATOR
Type	Direct Digital Synthesis
Frequency	10μHz to 1MHz
Waveforms	Sine, Triangle, Square, Sawtooth
Accuracy Open Loop (with no trim)	Frequency ±0.05% ±10% < 100kHz ±20% < 1MHz
Accuracy Closed Loop (with trim)	±1% < 100kHz ±5% < 1MHz
Impedance	50Ω ±2%
Output Voltage (Open Circuit)	0V to ±10Vpk
Output Resolution	5mV
Offset	0V to ±10Vpk
Offset Resolution	±10VmV
Clock Rate	11.52MHz
Connector	Grounded BNC
DATALOG
Functions	Up to 4 measured functions user selectable
Datalog Window	From 10ms with no gap between each log
Memory	RAM or non – volatile up to 8,000 records
HIGH SPEED DATA STREAMING
Rate	1500 readings/s max
Window	660μs to 1s Synchronized to waveform
Buffer	8000 results
GENERAL
Display	320 x 240 dot LCD – white LED backlight
Alarm	Any displayed function Hi, Lo, Inside Window or Outside Window
Program Stores	100, prog 1 loaded on power up
Sweep Stores	30, all parameters in any sweep function
Remote Operation	Full capability, control and data
Size	170H x 350W x 250D mm approx
Temperature	5 to 35⁰C
Weight	4Kg approx
Power Supply	90-264V rms 47-63Hz 30VA max

Newtons4th PSM1700 Frekans Tepkisi Analizörü

Teklif İsteyinNewtons4th PSM1700 Frekans Tepkisi Analizörü için uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!

DATA SHEET

Newtons4th PSM1700 Frekans Tepkisi Analizörü 10µHz–1MHz Çok Yönlü Yüksek Performanslı Kazanç/Faz Frekans Tepkisi Analizörü PSM1700 PsimetriQ, Ar-Ge ve üretim testi uygulamaları için kapsamlı bir DFT ve gerçek RMS analiz aracıdır. Aralarında anahtarlamalı mod güç kaynağı geri besleme döngüsü kararlılık analizi ve filtrelerin genel frekans tepkisi analizinin de bulunduğu bir dizi… Devamı

Kategoriler: SFRA Test, Trafo Test Cihazları Etiketler: Analizör, Newtons4th, Trafo Test Cihazı

Açıklama

MEASUREMENT SPECIFICATIONS
FREQUENCY RESPONSE ANALYSER
Measurement	Magnitude, Gain (CH1/CH2 or CH2/CH1), Gain (dB), Offset Gain (dB), Phase (⁰)
Frequency Range	10μHz to 1MHz 20mHz to 500kHz with External Source
Gain Accuracy in dB	0.02dB < 1kHz 0.05dB < 10kHz 0.1dB + 0.003⁰/kHz < 1MHz
Phase Accuracy	0.02⁰ < 10kHz 0.02⁰ + 0.003⁰/kHz < 1MHz
Frequency Source	Generator or CH1 Input
Measurement	Real Time DFT, no missing data
Speed	Up to 100 readings per second
Filter	Selectable from 0.2 seconds
Resolution	5 or 6 digits
VECTOR VOLTMETER
Measurement	In-Phase, Quadrature, Tan Φ, Magnitude, Phase, In-Phase Ratio, rms, rms ratio, LVDT Differential, LVDT Ratiometric
Frequency Range	10μHz to 1MHz 20mHz to 500kHz with External Source
Basic Accuracy (ac)	0.05% range + 0.05% reading + 0.05mV < 1kHz Basic + 0.02%/kHz < 10kHz Basic + 0.2% + 0.002%/kHz < 1MHz
LCR METER
Functions	L, C, R (ac), Q, tan delta, impedance, phase – Series or Parallel circuit
Frequency Range	10μHz to 1MHz
Current Shunt	External or N4L active head or IAI (Impedance Analysis Interface)
LCR Measurement Functions
Resistance (R)	1mOhm to 500MOhm
Reactance (X)	1mOhm to 500MOhm
Impedance (Z)	1mOhm to 500MOhm
Capacitance Value (Cp & Cs)	1pF to 1mF
Phase Angle	0 to 360 deg with 0.001 degree resolution
Q. Factor	+/- 0.00001 ~ 9999.99
Tan Delta (Reciprocal of Q, also known as Dissipation Factor D)	+/- 0.00001 ~ 9999.99
Admittance (Y) reciprocal of impedance (Siemens)	+/- 2nS to 1KS
Conductance (G) resistive part of admittance (Siemens)	+/- 2nS to 1KS
Susceptance (B) reactive part of admittance (Siemens)	+/- 2nS to 1KS
Voltage Bias	+/- 10V
Ranges – LCR Head	Inductance – 100nH to 10kH Capacitance – 10pF to 1000μF Resistance – 10mΩ to 100MΩ
Ranges – IAI	Inductance – 10nH to 10kH Capacitance – 1pF to 1000μF Resistance – 1mΩ to 500MΩ
Basic Accuracy	0.1% + tolerance of selected current shunt
Sweep Capability	All ac functions
Channels	2
Frequency Range	DC to 1MHz
Measurement	rms, ac, dc, peak, cf, surge, dBm
Basic Accuracy (ac)	As VVM + 0.2mV
Accuracy (dc)	0.1% range + 0.1% reading + 1mV
IAI Impedance Analysis Interface
Frequency Range	DC to 1MHz
Basic Accuracy	0.1% < 1kHz 0.2% + 0.002% / kHz < 1MHz
Internal Shunt Phase Accuracy	Low 5Ω 0.1deg + 0.01deg / kHz Normal 50Ω 0.05deg + 0.005deg / kHz High 5kΩ 0.05deg + 0.005deg / kHz Very High 500kΩ 0.1deg + 0.05deg / kHz
Power Source	90-264V rms 47-64Hz
POWER METER
Measurements	W, VA, PF, V, A, total, fundamental and integrated, power harmonics
Frequency Range	20mHz to 1MHz
Current Shunt	External or use N4L power adaptor
Current Accuracy	As Voltage + external shunt tolerance
Watts Accuracy	0.15% VA range + 0.15% reading + external shunt tolerance
HARMONIC ANALYSER
Scan	Single or Series
Frequency Range	10μHz to 1MHz
Measurement	Harmonic, series THD or difference THD
Max Harmonic	50
SYSTEM SPECIFICATIONS
INPUT RANGES
Inputs	2 Differential
Connectors	Isolated BNC
Coupling	ac or ac+dc
Max Input	100Vpk from earth
Input Ranges	100V, 30V, 10V, 3V, 1V, 300mV, 100mV, 30mV, 10mVpk
Scaling	1 x 10^-9 to 1 x 10^9
Ranging	Full auto, Up only or manual
Input Impedance	1M // 50pF (exc leads)
SIGNAL GENERATOR
Type	Direct Digital Synthesis
Frequency	10μHz to 1MHz
Waveforms	Sine, Triangle, Square, Sawtooth
Accuracy Open Loop (with no trim)	Frequency ±0.05% ±10% < 100kHz ±20% < 1MHz
Accuracy Closed Loop (with trim)	±1% < 100kHz ±5% < 1MHz
Impedance	50Ω ±2%
Output Voltage (Open Circuit)	0V to ±10Vpk
Output Resolution	5mV
Offset	0V to ±10Vpk
Offset Resolution	±10VmV
Clock Rate	11.52MHz
Connector	Grounded BNC
DATALOG
Functions	Up to 4 measured functions user selectable
Datalog Window	From 10ms with no gap between each log
Memory	RAM or non – volatile up to 8,000 records
HIGH SPEED DATA STREAMING
Rate	1500 readings/s max
Window	660μs to 1s Synchronized to waveform
Buffer	8000 results
GENERAL
Display	320 x 240 dot LCD – white LED backlight
Alarm	Any displayed function Hi, Lo, Inside Window or Outside Window
Program Stores	100, prog 1 loaded on power up
Sweep Stores	30, all parameters in any sweep function
Remote Operation	Full capability, control and data
Size	170H x 350W x 250D mm approx
Temperature	5 to 35⁰C
Weight	4Kg approx
Power Supply	90-264V rms 47-63Hz 30VA max

Ürün Özellikleri

Teknik Özellikler

Aksesuarlar

Newton4th Hakkında

Birleşik Krallık merkezli Newtons4th (N4L), özellikle güç elektroniği, havacılık ve yenilenebilir enerji gibi zorlu sektörlerde güç verimliliği, faz ve empedans analizi yapmak için kullanılan yüksek hassasiyetli güç analizörleri ve frekans tepki analizörleri tasarlayan ve üreten bir test ekipmanı markasıdır.
