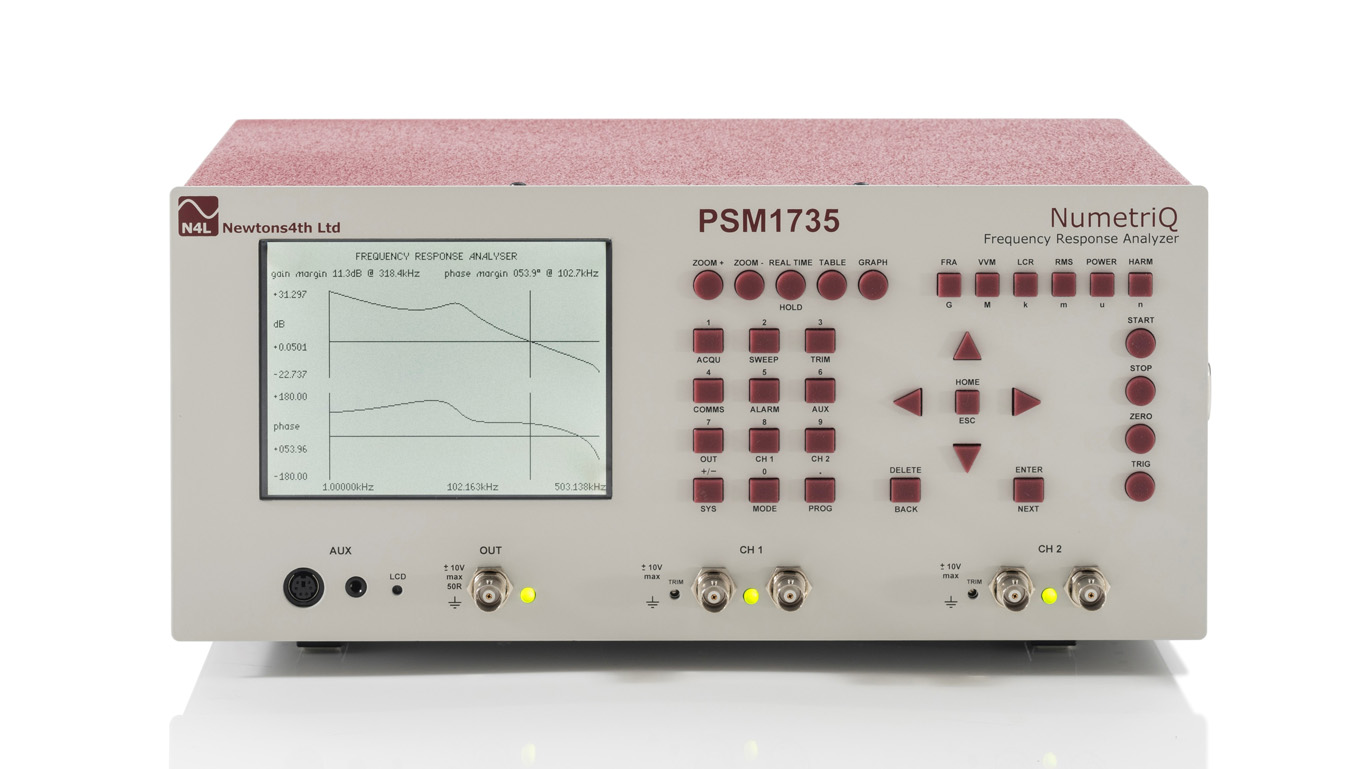

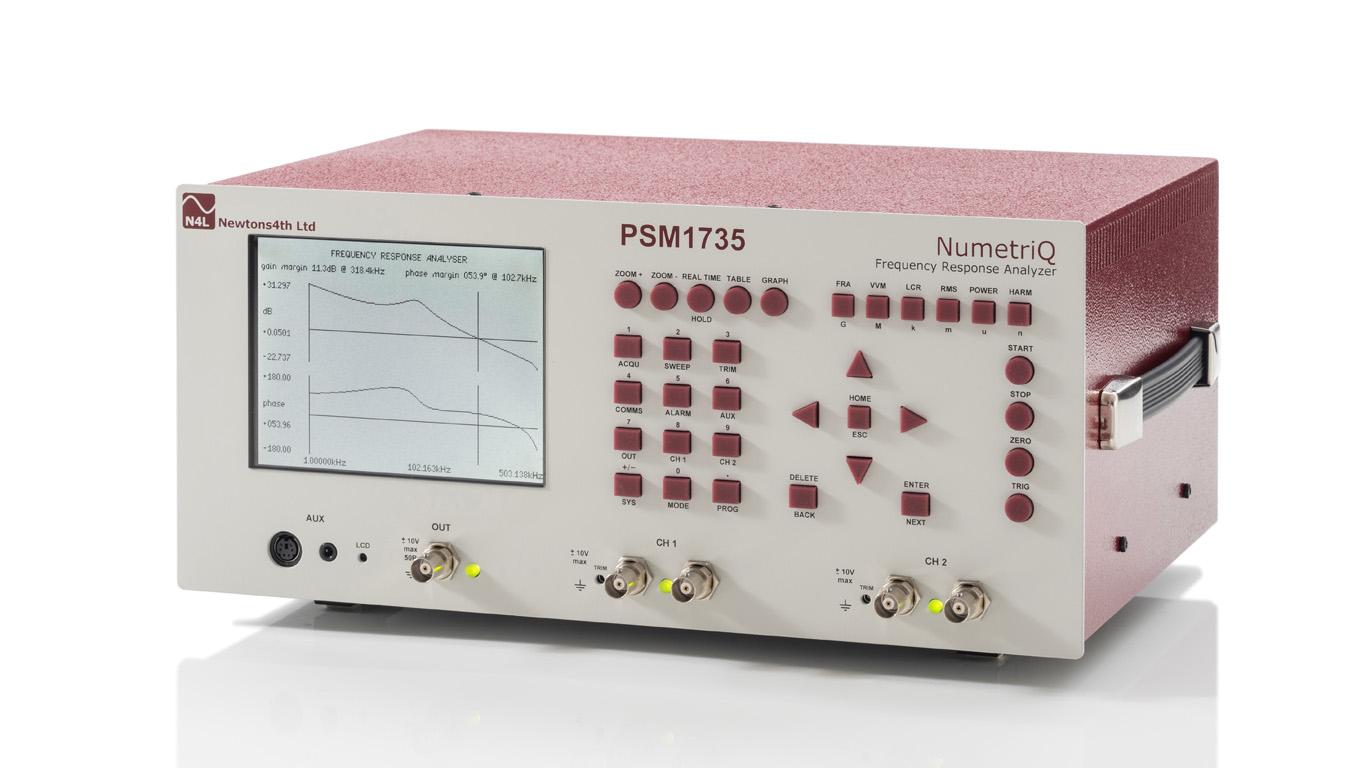

Newtons4th PSM1735 10uHz ila 35MHz Frekans Tepkisi Analizörü
10µHz–35MHz Çok Yönlü Yüksek Performanslı Kazanç/Faz Frekans Tepkisi Analizörü

Hem doğrudan dijital analiz hem de heterodyning tekniklerini içeren yenilikçi bir tasarım kullanan PSM1735, günümüzde mevcut diğer tüm cihazlardan daha geniş bir frekans aralığında çok çeşitli ölçüm işlevleri sağlar. Bu ürün için tipik uygulamalar, anahtarlamalı mod güç kaynağı geri besleme döngüsü analizi, filtre testi ve tasarımı, LVDT testi, yara bileşenlerinin tarama frekans yanıtı analizi ve çok daha fazlasını içerir. Diğer N4L ürünlerinde olduğu gibi PSM1735 NumetriQ, her ölçüm işlevinin performansından ödün vermeden hız ve ölçüm esnekliği sağlayan analog donanımının kullanımını optimize etmek için en son DSP ve FPGA teknolojisini kullanır. N4L PSM1735, gerçekten pazar lideri performans olan 0,01dB kazanç doğruluğu ve 0,02° faz doğruluğu sunar.

Control Loop

Stability

Analysis

Transistor

Performance

Analysis

Filter Design

Audio Amplifier

Design

OptoCoupler

Evaluation

Coax Cable

Frequency

Response

LDO Regulator

Evaluation

Signal Transformer

Performance

Evaluation

Cross Talk

Testing

RFI/EMC Filter

Design

MEASUREMENT SPECIFICATIONS
Window	660μs to 1s Synchronized to waveform
Weight	4Kg approx
Waveforms	Sine, Square (1MHz)
Watts Accuracy	0.1% VA range + 0.1% reading + external shunt tolerance
Voltage Bias	+/- 10V
VECTOR VOLTMETER
Type	Direct Digital Synthesis
TRUE RMS VOLTMETER
Temperature	5 to 35⁰C
Tan Delta (Reciprocal of Q, also known as Dissipation Factor D)	+/- 0.00001 ~ 9999.99
SYSTEM SPECIFICATIONS
Sweep Stores	30, all parameters in any sweep function
Sweep Capability	All ac functions
Susceptance (B) reactive part of admittance (Siemens)	+/- 2nS to 1KS
Speed	Up to 100 readings per second
Size	170H x 350W x 250D mm approx
SIGNAL GENERATOR
Scan	Single or Series
Scaling	1 x 10^-9 to 1 x 10^9
Resolution	5 or 6 digits
Resistance (R)	1mOhm to 500MOhm
Remote Operation	Full capability, control and data
Reactance (X)	1mOhm to 500MOhm
Rate	1500 readings/s max
Ranging	Full auto, Up only or manual
Ranges-LCR Head	Inductance – 100nH to 10kH Capacitance – 10pF to 1000μF Resistance – 10mΩ to 100MΩ
Ranges-IAI	Inductance – 10nH to 10kH Capacitance – 1pF to 1000μF Resistance – 1mΩ to 500MΩ
Q. Factor	+/- 0.00001 ~ 9999.99
Program Stores	100, prog 1 loaded on power up
Power Supply	90-264V rms 47-63Hz 30VA max
Power Source	90-264V rms 47-64Hz
POWER METER
Phase Angle	0 to 360 deg with 0.001 degree resolution
Phase Accuracy	0.02⁰ < 10kHz 0.05⁰ + 0.0001⁰ / kHz < 35MHz
Output Voltage (Open Circuit)	0V to ±10Vpk
Output Resolution	50μV to 5mV level dependant
Offset Resolution	±10VmV
Offset	0V to ±10Vpk
Memory	RAM or non – volatile up to 8,000 records
Measurements	W, VA, PF, V, A, -total, fundamental and integrated, power harmonics
Measurement	Magnitude, Gain (CH1/CH2 or CH2/CH1), Gain (dB), Offset Gain (dB), Phase (⁰)
Measurement	Real Time DFT, no missing data
Measurement	In-Phase, Quadrature, Tan Φ, Magnitude, Phase, In-Phase Ratio, rms, rms ratio, LVDT Differential, LVDT Ratiometric
Measurement	rms, ac, dc, peak, cf, surge, dBm
Measurement	Harmonic, series THD or difference THD
Max Input	10Vpk from earth
Max Harmonic	50
LCR METER
LCR Measurement Functions
Internal Shunt Phase Accuracy	Low 5Ω 0.1deg + 0.01deg / kHz Normal 50Ω 0.05deg + 0.005deg / kHz High 5kΩ 0.05deg + 0.005deg / kHz Very High 500kΩ 0.1deg + 0.05deg / kHz
Inputs	2 Balanced Differential
INPUT RANGES
Input Ranges	10V, 3V, 1V, 300mV, 100mV, 30mV, 10mV, 3mV, 1mVpk
Input Impedance	1M // 30pF (exc leads)
Impedance (Z)	1mOhm to 500MOhm
Impedance	50Ω ±2%

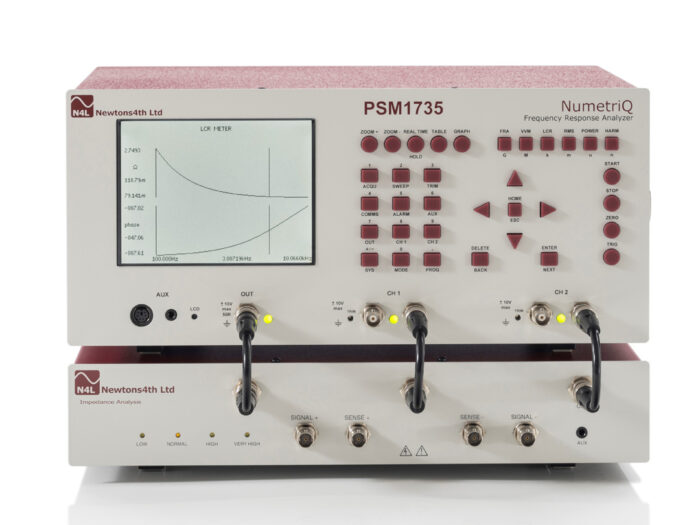

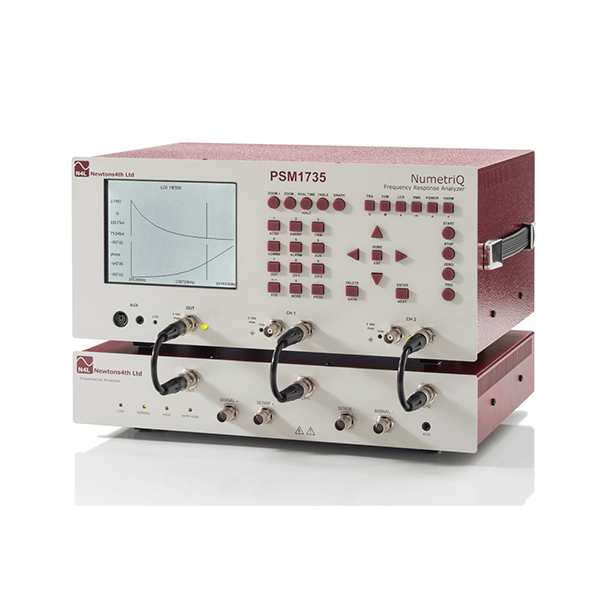

IAI Impedance Analysis Interface
HIGH SPEED DATA STREAMING
HARMONIC ANALYSER
GENERAL
Gain Accuracy in dB	0.01dB + 0.001dB/kHz < 1MHz 0.1dB + 0.04dB/MHz < 35MHz
Functions	L, C, R (ac), Q, tan delta, impedance, phase – Series or Parallel circuit
Functions	Up to 4 measured functions user selectable
Frequency Source	Generator or CH1 Input
FREQUENCY RESPONSE ANALYSER
Frequency Range	10μHz to 35MHz 20mHz to 35MHz with External Source
Frequency Range	10μHz to 35MHz 20mHz to 35MHz with External Source
Frequency Range	10μHz to 35MHz
Frequency Range	10μHz to 35MHz
Frequency Range	DC to 1MHz 1MHz to 35MHz fundamental only
Frequency Range	20mHz to 1MHz 1MHz to 35MHz fundamental only
Frequency Range	10μHz to 1MHz
Frequency	10μHz to 35MHz
Filter	Selectable from 0.2 seconds
Display	320 x 240 dot LCD – white LED backlight
Datalog Window	From 10ms with no gap between each log
DATALOG
Current Shunt	External or N4L active head or IAI (Impedance Analysis Interface)
Current Shunt	External or use N4L power adaptor
Current Accuracy	As Voltage + external shunt tolerance
Coupling	ac or ac+dc
Connectors	Dual Grounded BNC
Connector	Grounded BNC
Conductance (G) resistive part of admittance (Siemens)	+/- 2nS to 1KS
Clock Rate	150MHz
Channels	2
Capacitance Value (Cp & Cs)	1pF to 1mF
Buffer	8000 results
Basic Accuracy (ac)	0.5% range + 0.05% reading + 0.05mV < 1kHz Basic + 0.001%/kHz < 10kHz Basic + 0.002%/kHz < 1MHz Basic + 1.6% + 0.4%/MHz < 35MHz
Basic Accuracy (ac)	As VVM + 0.05mV
Basic Accuracy	0.1% + tolerance of selected current shunt
Basic Accuracy	0.1% <1kHz 0.2% + 0.0005% / kHz <35MHz
Alarm	Any displayed function Hi, Lo, Inside Window or Outside Window
Admittance (Y) reciprocal of impedance (Siemens)	+/- 2nS to 1KS
Accuracy Open Loop (with no trim)	Frequency ±0.05% ±10% < 10MHz ±20% < 35MHz
Accuracy Closed Loop (with trim)	±1% < 10MHz ±5% < 35MHz
Accuracy (dc)	0.01% VA range + 0.1% reading + 0.5mV

Resmi büyüt

Newtons4th PSM1735 10uHz ila 35MHz Frekans Tepkisi Analizörü

Teklif İsteyinFİYAT TEKLİFİ İÇİN TIKLAYIN!

İngiliz Malı
DATA SHEET

Newtons4th PSM1735 10uHz ila 35MHz Frekans Tepkisi Analizörü 10µHz–35MHz Çok Yönlü Yüksek Performanslı Kazanç/Faz Frekans Tepkisi Analizörü Hem doğrudan dijital analiz hem de heterodyning tekniklerini içeren yenilikçi bir tasarım kullanan PSM1735, günümüzde mevcut diğer tüm cihazlardan daha geniş bir frekans aralığında çok çeşitli ölçüm işlevleri sağlar. Bu ürün için tipik… Devamı

Kategoriler: SFRA Test, Trafo Test Cihazları Etiketler: Analizör, Newtons4th, Trafo Test Cihazı

Açıklama

MEASUREMENT SPECIFICATIONS
Window	660μs to 1s Synchronized to waveform
Weight	4Kg approx
Waveforms	Sine, Square (1MHz)
Watts Accuracy	0.1% VA range + 0.1% reading + external shunt tolerance
Voltage Bias	+/- 10V
VECTOR VOLTMETER
Type	Direct Digital Synthesis
TRUE RMS VOLTMETER
Temperature	5 to 35⁰C
Tan Delta (Reciprocal of Q, also known as Dissipation Factor D)	+/- 0.00001 ~ 9999.99
SYSTEM SPECIFICATIONS
Sweep Stores	30, all parameters in any sweep function
Sweep Capability	All ac functions
Susceptance (B) reactive part of admittance (Siemens)	+/- 2nS to 1KS
Speed	Up to 100 readings per second
Size	170H x 350W x 250D mm approx
SIGNAL GENERATOR
Scan	Single or Series
Scaling	1 x 10^-9 to 1 x 10^9
Resolution	5 or 6 digits
Resistance (R)	1mOhm to 500MOhm
Remote Operation	Full capability, control and data
Reactance (X)	1mOhm to 500MOhm
Rate	1500 readings/s max
Ranging	Full auto, Up only or manual
Ranges-LCR Head	Inductance – 100nH to 10kH Capacitance – 10pF to 1000μF Resistance – 10mΩ to 100MΩ
Ranges-IAI	Inductance – 10nH to 10kH Capacitance – 1pF to 1000μF Resistance – 1mΩ to 500MΩ
Q. Factor	+/- 0.00001 ~ 9999.99
Program Stores	100, prog 1 loaded on power up
Power Supply	90-264V rms 47-63Hz 30VA max
Power Source	90-264V rms 47-64Hz
POWER METER
Phase Angle	0 to 360 deg with 0.001 degree resolution
Phase Accuracy	0.02⁰ < 10kHz 0.05⁰ + 0.0001⁰ / kHz < 35MHz
Output Voltage (Open Circuit)	0V to ±10Vpk
Output Resolution	50μV to 5mV level dependant
Offset Resolution	±10VmV
Offset	0V to ±10Vpk
Memory	RAM or non – volatile up to 8,000 records
Measurements	W, VA, PF, V, A, -total, fundamental and integrated, power harmonics
Measurement	Magnitude, Gain (CH1/CH2 or CH2/CH1), Gain (dB), Offset Gain (dB), Phase (⁰)
Measurement	Real Time DFT, no missing data
Measurement	In-Phase, Quadrature, Tan Φ, Magnitude, Phase, In-Phase Ratio, rms, rms ratio, LVDT Differential, LVDT Ratiometric
Measurement	rms, ac, dc, peak, cf, surge, dBm
Measurement	Harmonic, series THD or difference THD
Max Input	10Vpk from earth
Max Harmonic	50
LCR METER
LCR Measurement Functions
Internal Shunt Phase Accuracy	Low 5Ω 0.1deg + 0.01deg / kHz Normal 50Ω 0.05deg + 0.005deg / kHz High 5kΩ 0.05deg + 0.005deg / kHz Very High 500kΩ 0.1deg + 0.05deg / kHz
Inputs	2 Balanced Differential
INPUT RANGES
Input Ranges	10V, 3V, 1V, 300mV, 100mV, 30mV, 10mV, 3mV, 1mVpk
Input Impedance	1M // 30pF (exc leads)
Impedance (Z)	1mOhm to 500MOhm
Impedance	50Ω ±2%
IAI Impedance Analysis Interface
HIGH SPEED DATA STREAMING
HARMONIC ANALYSER
GENERAL
Gain Accuracy in dB	0.01dB + 0.001dB/kHz < 1MHz 0.1dB + 0.04dB/MHz < 35MHz
Functions	L, C, R (ac), Q, tan delta, impedance, phase – Series or Parallel circuit
Functions	Up to 4 measured functions user selectable
Frequency Source	Generator or CH1 Input
FREQUENCY RESPONSE ANALYSER
Frequency Range	10μHz to 35MHz 20mHz to 35MHz with External Source
Frequency Range	10μHz to 35MHz 20mHz to 35MHz with External Source
Frequency Range	10μHz to 35MHz
Frequency Range	10μHz to 35MHz
Frequency Range	DC to 1MHz 1MHz to 35MHz fundamental only
Frequency Range	20mHz to 1MHz 1MHz to 35MHz fundamental only
Frequency Range	10μHz to 1MHz
Frequency	10μHz to 35MHz
Filter	Selectable from 0.2 seconds
Display	320 x 240 dot LCD – white LED backlight
Datalog Window	From 10ms with no gap between each log
DATALOG
Current Shunt	External or N4L active head or IAI (Impedance Analysis Interface)
Current Shunt	External or use N4L power adaptor
Current Accuracy	As Voltage + external shunt tolerance
Coupling	ac or ac+dc
Connectors	Dual Grounded BNC
Connector	Grounded BNC
Conductance (G) resistive part of admittance (Siemens)	+/- 2nS to 1KS
Clock Rate	150MHz
Channels	2
Capacitance Value (Cp & Cs)	1pF to 1mF
Buffer	8000 results
Basic Accuracy (ac)	0.5% range + 0.05% reading + 0.05mV < 1kHz Basic + 0.001%/kHz < 10kHz Basic + 0.002%/kHz < 1MHz Basic + 1.6% + 0.4%/MHz < 35MHz
Basic Accuracy (ac)	As VVM + 0.05mV
Basic Accuracy	0.1% + tolerance of selected current shunt
Basic Accuracy	0.1% <1kHz 0.2% + 0.0005% / kHz <35MHz
Alarm	Any displayed function Hi, Lo, Inside Window or Outside Window
Admittance (Y) reciprocal of impedance (Siemens)	+/- 2nS to 1KS
Accuracy Open Loop (with no trim)	Frequency ±0.05% ±10% < 10MHz ±20% < 35MHz
Accuracy Closed Loop (with trim)	±1% < 10MHz ±5% < 35MHz
Accuracy (dc)	0.01% VA range + 0.1% reading + 0.5mV

Ürün Özellikleri

Teknik Özellikler

Aksesuarlar

Fiyat Teklifi

Etiketler: Analizör, Newtons4th, Trafo Test Cihazı
