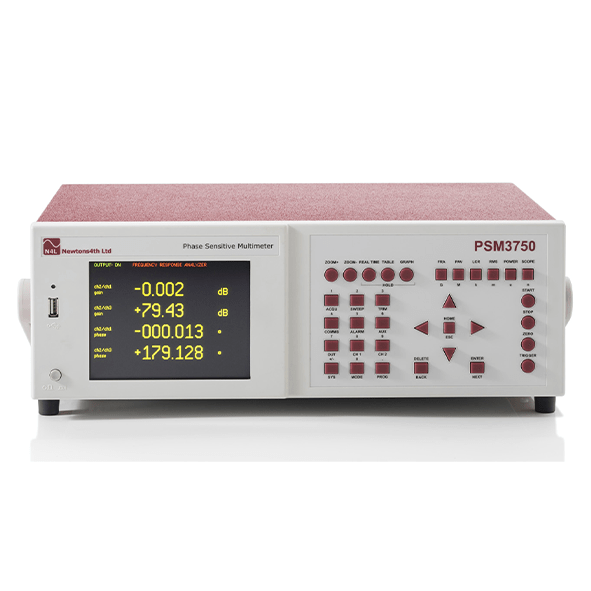

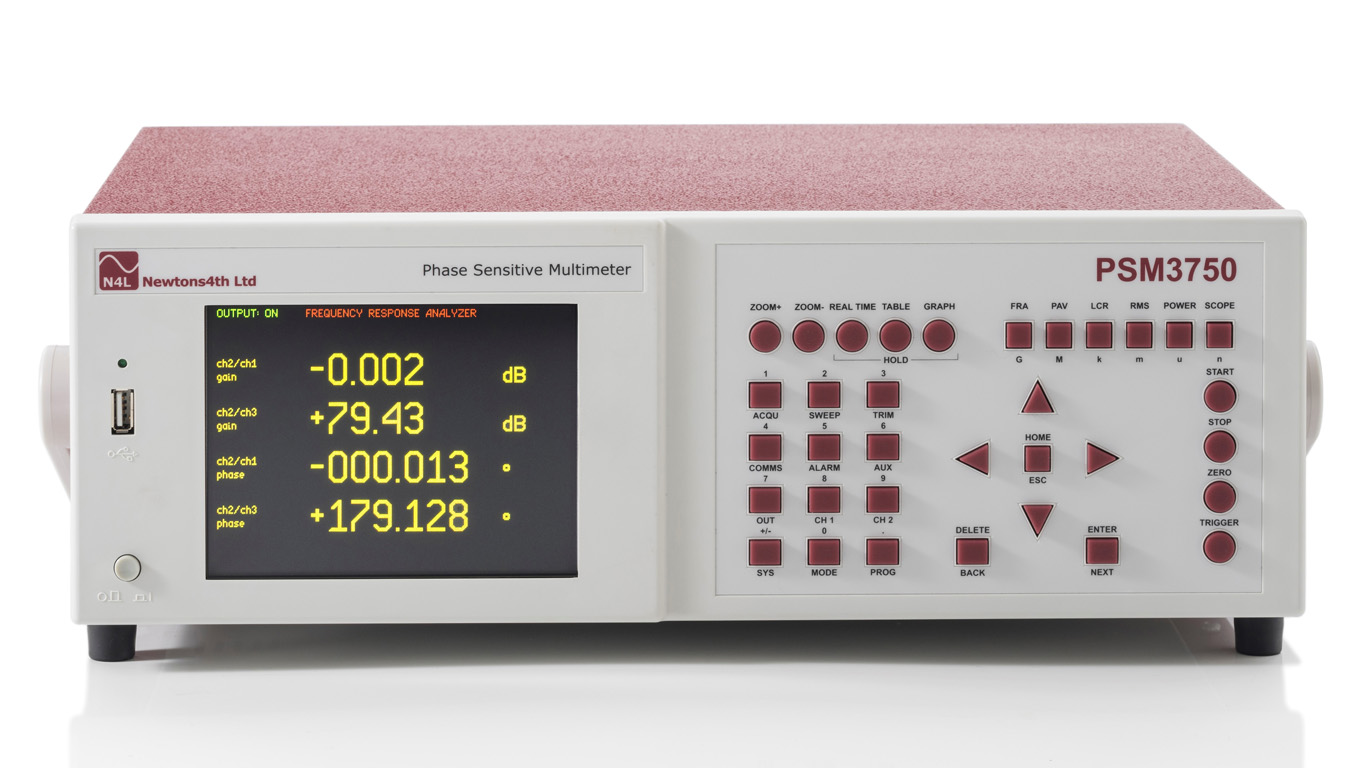

Newtons4th PSM3750 Frekans Tepkisi Analizörü

10µHz–50MHz, Isolated Inputs (500Vpk), Isolated AC+DC Coupled Generator

PSM3750, PSM2200 ve PSM17xx serisi frekans yanıtı analizör serilerinin başarısını temel alır ve yüksek gerilim, yüksek doğruluk, izole edilmiş güç analizörü serimizin tasarım ve geliştirmesinden elde edilen deneyimi birleştirir. kazanç ve faz ölçümü. 500Vpk galvanik olarak izole edilmiş giriş/çıkış kanallarında hem doğrudan dijital analiz hem de heterodyning tekniklerini içeren yenilikçi bir tasarım kullanan PSM3750, günümüzde mevcut olan diğer tüm cihazlardan daha geniş bir frekans aralığında geniş bir ölçüm işlevleri yelpazesi sunar.

Diğer N4L ürünlerinde olduğu gibi PSM3750 NumetriQ, her ölçüm işlevinin performansından ödün vermeden hız ve ölçüm esnekliği sağlayan analog donanımının kullanımını optimize etmek için en son DSP ve FPGA teknolojisini kullanır.

Control Loop

Stability

Analysis

Transistor

Performance

Analysis

Filter Design

Audio Amplifier

Design

OptoCoupler

Evaluation

Coax Cable

Frequency

Response

LDO Regulator

Evaluation

Signal Transformer

Performance

Evaluation

Cross Talk

Testing

RFI/EMC Filter

Design

MEASUREMENT SPECIFICATION

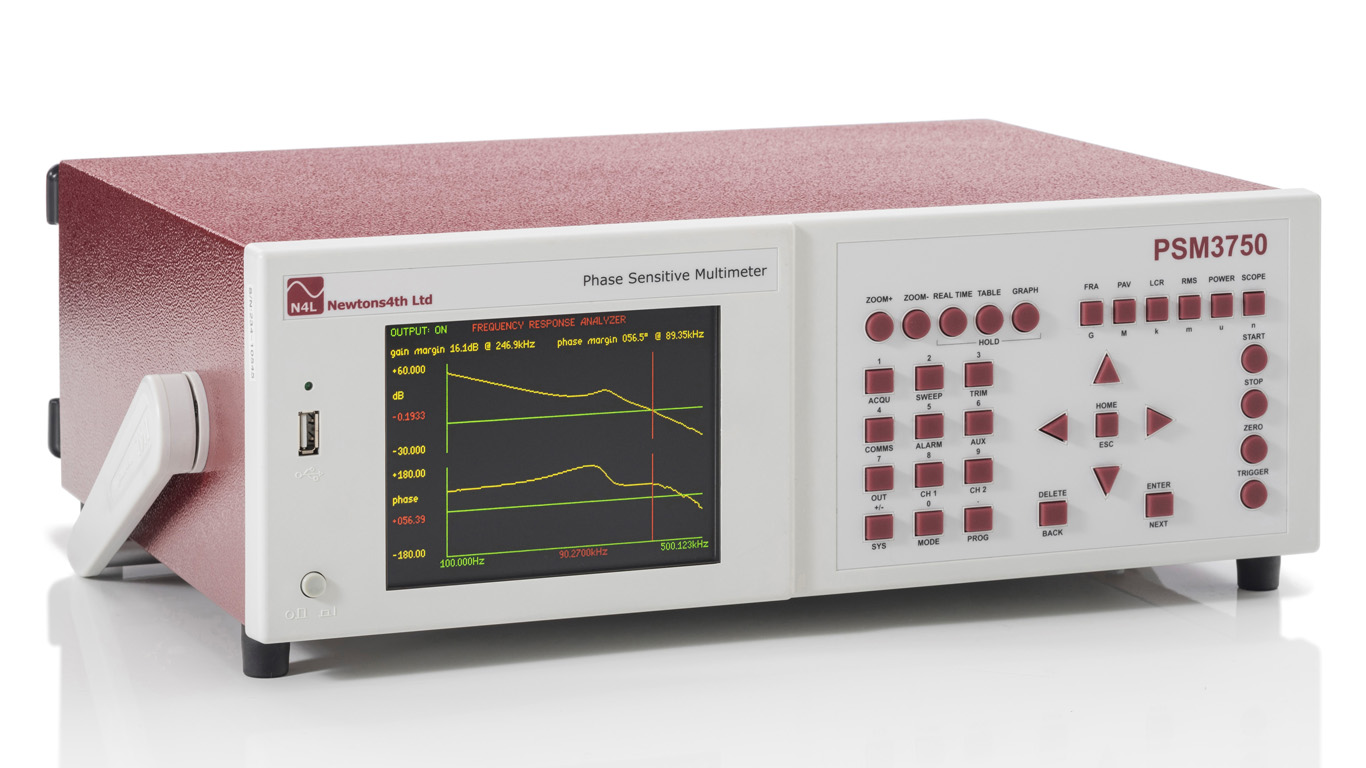

Frequency Response Analyser
Measurement	Magnitude, Gain (CH1/CH2, CH2/CH1), Gain (dB), Offset Gain (dB), Phase (º)
Frequency Range	10µHz – 50MHz
Gain Accuracy in dB	0.01dB + 0.1dB / MHz < 5MHz 0.31dB + 0.04dB / MHz < 50MHz
Phase Accuracy	0.025º < 10kHz 0.05deg + 0.00025deg / kHz < 50MHz
Frequency Source	Generator or CH1 Input
Measurement	Real Time DFT, no missing data
Speed	Up to 100 reading per second
Filter	Selectable from 0.2 seconds
Phase Angle Voltmeter
Measurement	In Phase, Quadrature, Tan Ø, Magnitude, Phase, In-Phase ratio, rms, rms ratio, LVDT differential, LVDT ratiometric
Frequency Range	10µHz – 50MHz
Basic Accuracy (AC)	0.075% range + 0.075% reading + 50µV < 10kHz 0.075% range + 0.25% + 0.001% / kHz rdg + 50µV < 1MHz 0.075% range + 0.01% + 0.00025% / kHz rdg + 50µV < 50MHz
L C R Meter
Functions	L,C,R (AC), Q, Tan Delta, Impedance, Phase – Series or Parallel Circuit
Frequency Range	10µHz – 50MHz (35MHz – 50MHz reference only)
Current Shunt	External or Optional IAI2 Impedance Interface
LCR Measurement Functions
Resistance (R)	1mOhm to 500MOhm
Reactance (X)	1mOhm to 500MOhm
Impedance (Z)	1mOhm to 500MOhm
Capacitance Value (Cp & Cs)	1pF to 1mF
Phase Angle	0 to 360 deg with 0.001 degree resolution
Q. Factor	+/- 0.00001 ~ 9999.99
Tan Delta (Reciprocal of Q, also known as Dissipation Factor (D)	+/- 0.00001 ~ 9999.99
Admittance (Y) reciprocal of impedance (Siemens)	+/- 2nS to 1KS
Conductance (G) resistive part of admittance (Siemens)	+/- 2nS to 1KS
Susceptance (B) reactive part of admittance (Siemens)	+/- 2nS to 1KS
Voltage Bias	+/- 10V
Ranges (External Shunt)	Inductance 1H to 100 H Capacitance 100pF to 100F Resistance 1Ω to 1MΩ
Basic Accuracy	0.1% + Tolerance of Shunt
Sweep Capability	all AC functions
True RMS Voltmeter
Channels	2 (Optional 3rd Channel Available)
Frequency Range	DC to 5MHz 5MHz to 50MHz fundamental only
Measurement	RMS, AC, DC, PEAK, CF, SURGE, dBm
Basic Accuracy (AC)	As PAV + 0.05mV
Basic Accuracy (DC)	0.1% range + 0.1% reading + 0.5mV
Power Meter
Measurements	W, VA, PF, V, A, Total, Fundamental and Integrated, Power Harmonics
Frequency Range	DC to 5MHz 5MHz to 50MHz fundamental only
Current Shunt	External
Current Accuracy	As Voltage + External Shunt Tolerance
Watts Accuracy	0.1% VA range + 0.1% reading + External Shunt Tolerance
Signal Generator
Type	Fully isolated 10Vrms output protected to 500Vpk, Direct Digital Synthesis
Frequency	10µHz – 50MHz
Waveforms	Sine, Square, Triangle, Sawtooth, White Noise
Accuracy (no trim)	Frequency 0.05% Amplitude ±5% < 10MHz, Amplitude ± 10% < 50MHz
Impedance	50 Ohm ± 2% 100pF to Chassis
Output Level (Open Circuit)	35mVrms to 10Vrms
Offset	±10vdc, Resolution 20mV
Harmonic Analyser
Scan	Single or Series
Frequency range	20mHz to 5MHz 5MHz to 50MHz Fundamental only
Measurement	Harmonic, Series, THD, Difference THD
Max Harmonic	100
Input Ranges
Differential Inputs	2 or 3 x Isolated Inputs 500Vpk
Connectors	Isolated BNC
Coupling	AC+DC, AC (<10VDC), AC (< 500VDC)
Ranges	3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 500V,300mV∗, 1V∗, 3V∗, 10V∗ ∗ High Voltage Attenuator
Scaling	1 x 10^-9 to 1 x 10^9
Ranging	Full auto, Up only or Manual
Input Impedance	1M Ohm Differential / 100pF to Chassis
Model Numbers
Available Packages
PSM3750 – 2C PSM3750 – 3C PSM3750 – 2C + IAI2 PSM3750 – 3C + IAI2	2 Channel PSM3750 3 Channel PSM3750 2 Channel PSM3750 + IAI2 3 Channel PSM3750 + IAI2

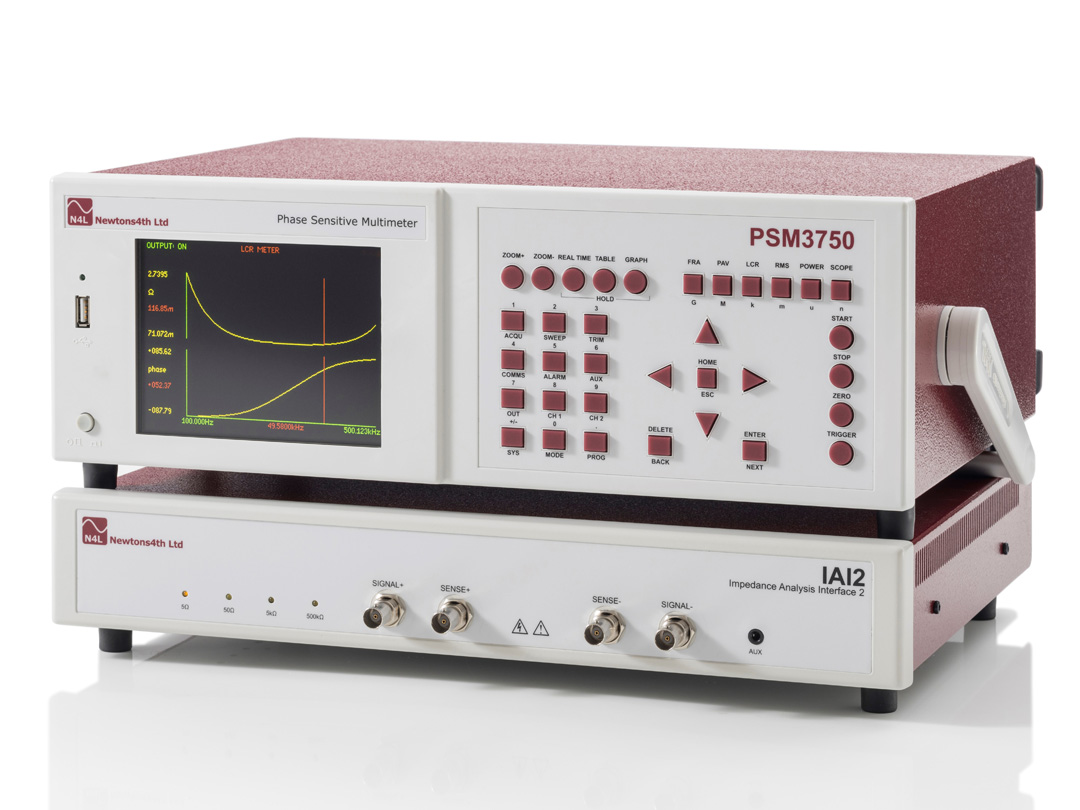

IAI2 – Impedance Analysis Interface
Specification
Frequency Range	10µHz – 50MHz
Measurement Parameters	L, C, R, Z, Phase, QF, Tan (δ), Series and Parallel Circuit
Basic Accuracy	0.1% 1kHz 0.2% + 0.002% / kHz < 1MHz 0.2% + 0.0005% / kHz < 35MHz 0.2% + 0.001% / kHz < 50MHz
Measurement Ranges	10nH to 10kH, 1pF to 1000F, 1mΩ to 500MΩ
Phase Accuracy of Internal Shunts	Low Shunt 5Ω, 0.1deg + 0.01deg / kHZ Medium Shunt 50Ω, 0.05deg + 0.005deg / kHz High Shunt 5kΩ, 0.05deg + 0.005deg / kHz Very High Shunt 500kΩ 0.1deg + 0.05deg / kHz
Accessories and Ports
Accessories
Probes	4 off with 2 Channel Version. 6 off with 3 Channel Version
Leads	Output, RS232, Power
Software	CommView, PSMComm2
Documentation	Calibration Certificate, User Manual

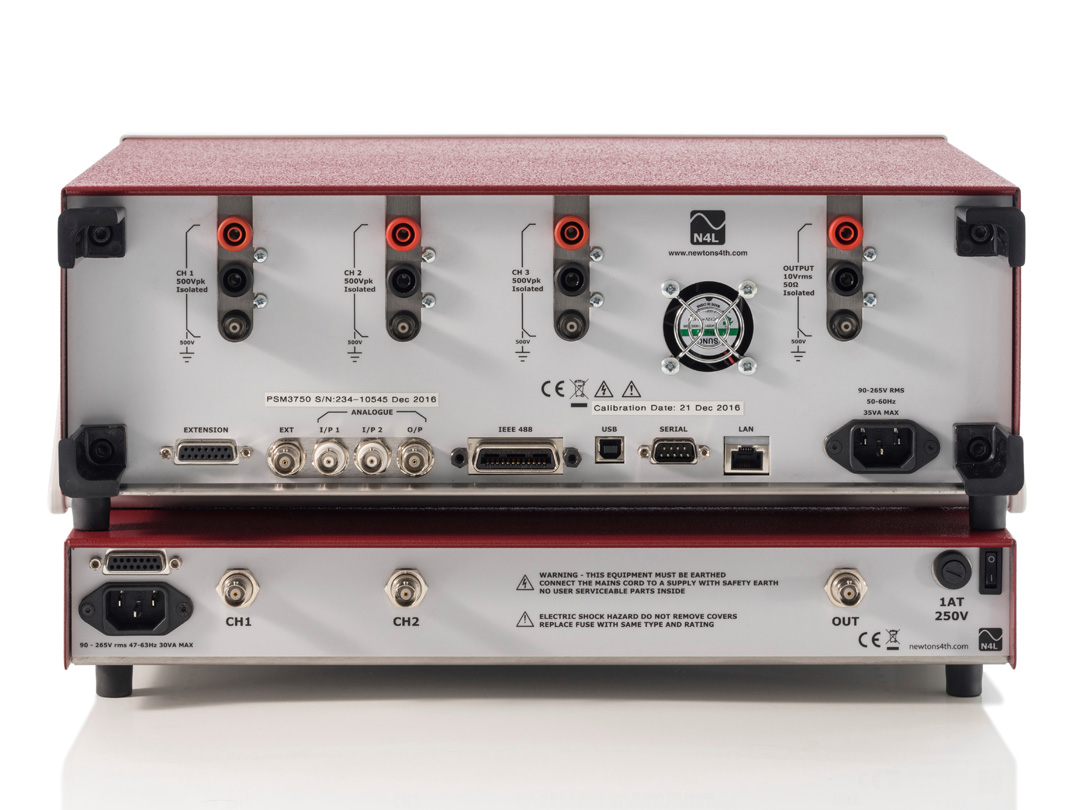

Ports
RS232	Baud Rate to 19200, RTS/CTS flow control
Analog Output	Bipolar ±10V on any measured function – BNC
Sync Output	Pulse Synchronised to Generator
Extension Ports (N4L Accessories)	2 15 pin female D type
LAN (Standard)	10 / 100 base-T Ethernet auto sensing RJ45
GPIB (Standard)	IEEE488.2 Compatible
System Specifications
Datalog
Functions	Up to 4 measured functions, User Selectable
Datalog Window	From 10mS with No Gap between each log
Memory	RAM or Non Volatile Memory up to 16,000 records
General
Display	320 x 240 QVGA full colour TFT, White LED backlit
Dimensions	130H x 400w X 315D mm excluding feet
Weight	3.3kg (2Channel), 3.5kg (3 Channel)
Program Stores	100, Location 1 Loaded upon Power Up
Sweep Stores	2000, all parameters in any sweep function
Remote Operation	Full Capability, Control and Data
