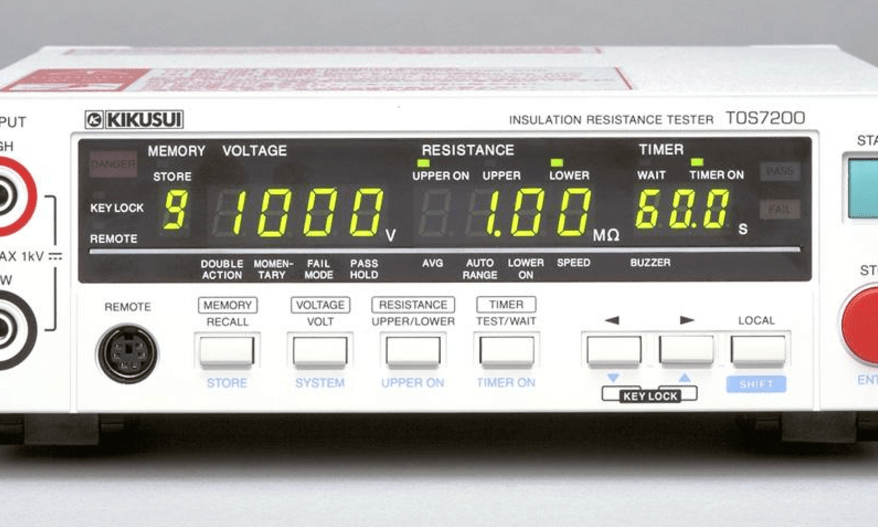

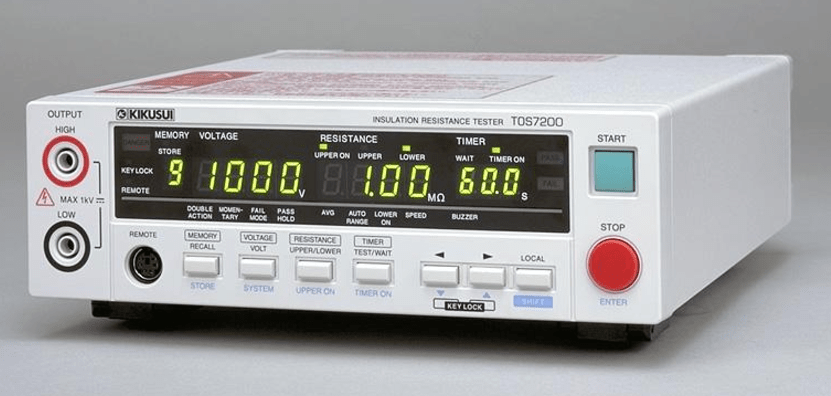

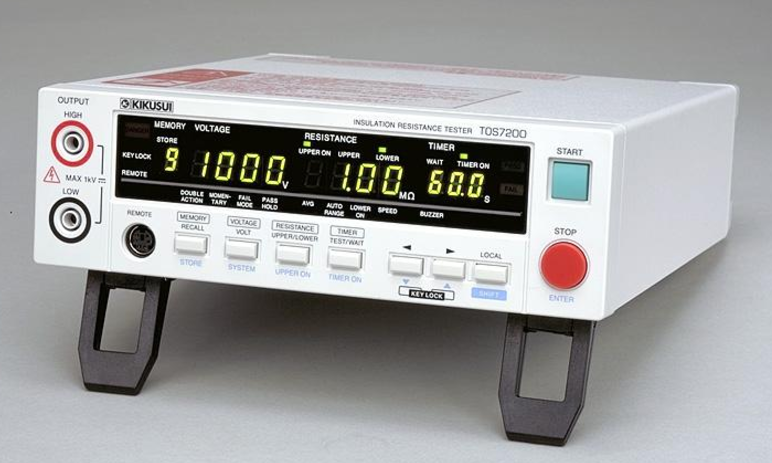

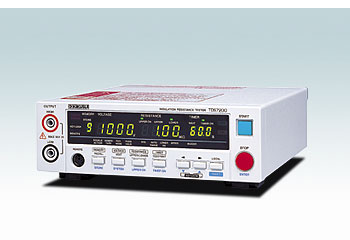

Kikusui TOS7200 DC delinme test Cıhazı

Teklif İsteyin

DC delinme test Cıhazı

safety testers DATASHEET

TOS7200 elektriksel güvenlik standartlarına uygun olarak elektronik cihazlar ve aksamları üzerinde DC delinme testleri için tasarlanmıştır 1kV DC İzolasyon test cihazıdır. TOS 7200 1kV DC’ye kadar ayarlanabilir test voltajına ve  5.000MOhm  izolasyon direnci okuma özelliğine sahiptir. Özellikleri: DC 1000V'a Kadar Ayarlanabilir Test Gerilimi 01 MOhm dan 5.000MOhm a Kadar İzolasyon… Devamı

Kategoriler: AC/DC HiPot Yüksek Gerilim/Delinme Test Cihazları
Paylaş
Facebook Twitter Pinterest linkedin WhatsApp WhatsApp
  • Açıklama
  • Ürün Özellikleri
  • Teknik Özellikler
  • Aksesuarlar
Açıklama

ıntro

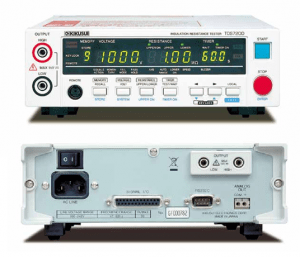

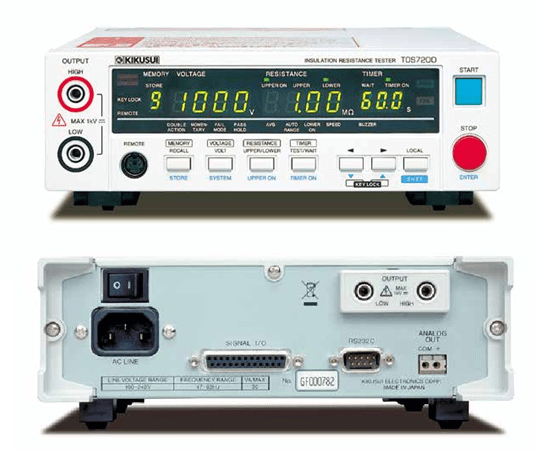

TOS7200 elektriksel güvenlik standartlarına uygun olarak elektronik cihazlar ve aksamları üzerinde DC delinme testleri için tasarlanmıştır 1kV DC İzolasyon test cihazıdır. TOS 7200 1kV DC’ye kadar ayarlanabilir test voltajına ve  5.000MOhm  izolasyon direnci okuma özelliğine sahiptir.

Özellikleri:

  • DC 1000V’a Kadar Ayarlanabilir Test Gerilimi
  • 01 MOhm dan 5.000MOhm a Kadar İzolasyon Direnci Ölçüm Aralığı
  • Zamanlayıcı Fonksiyonu
  • Artış ve Düşüş Zamanı Kontrol Özelliği
  • Otomatik Deşarj Fonksiyonu
  • PASS/FAIL Özelliği
  • Renkli Ekran
  • RS232 Arayüzü, Signal I/O
  • Japon Malı



Ürün Özellikleri

Ürün Özellikleri

  • Provided with the discharge function
  • Equipped with the window comparator
  • Hold function (which holds the measured resistance at the end of testing while PASS judgment is being output)
  • Provided with the timer function

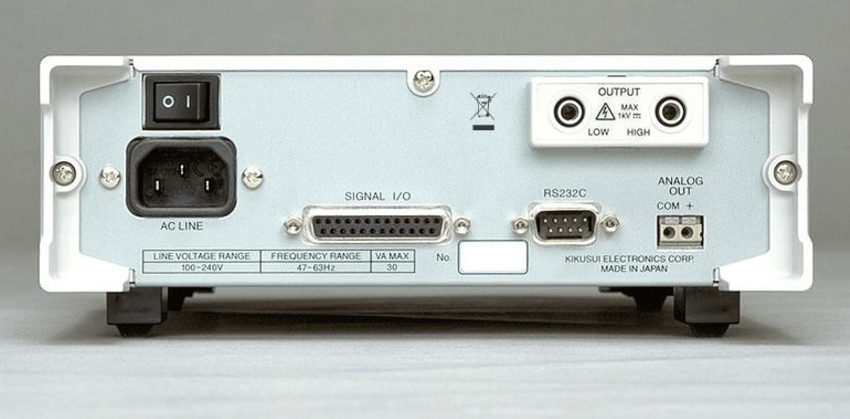

  • Rear output terminals
  • Measured-value monitoring terminals
  • Equipped with the panel memory (enabling 10 different settings to be stored)
  • Equipped with the SIGNAL I/O connector and remote control terminal
  • Equipped with the RS-232C interface as standard
Teknik Özellikler

Teknik Özellikler

LINE UP

ModelSpecification
TOS7200Output voltage setting range: -25 to -1000V, Resistance measurement range: 0.01 M Ω to 5000 M Ω, Equipped with the SIGNAL I/O connector, remote control terminal and RS-232C interface as standard.

SPECIFICATIONS

Output section
Output voltage range-25 V to -1000 V
Resolution1 V
Accuracy±(1.5 % of setting + 2 V)
Maximum rated load1 W (1 000 V/1 mA)
Maximum rated current1 mA
Output terminalsOutput typeFloating
Isolation voltage±1000 VDC
Ripple1000 V / under no load2 Vp-p or less
Maximum rated load10 Vp-p or less
Short-circuiting current12 mA or less
Output rise time50 ms or less (10 % to 90 %) [no load]
Discharge functionForced discharge at the end of test (discharge resistance: 25 kΩ)
Voltmeter
Measurement range0 V to -1200 V
Resolution1 V
Accuracy±(1 % of reading +1 V)
Resistance meter
Measurement range0.01 MΩ to 5000 MΩ (In the range of over 100 nA to a maximum rated current of 1 mA)
Display□.□□ MΩ R < 10.0 MΩ□□.□ MΩ 10.0MΩ ≤ R < 100.0MΩ□□□ MΩ 100.0MΩ ≤ R < 1000MΩ□□□□ MΩ 1000MΩ ≤ R ≤ 5000MΩR = measured insulation resistance
Accuracy± (10 % of reading) 100 nA < i ≤ 200 nA± (5 % of reading) 200 nA < i ≤ 1 µA± (2 % of reading) 1 µA < i ≤ 1 mAi =measured output-voltage value/measured resistance value[In the humidity range of 20 %rh to 70 %rh (no condensation), with no disturbance such as swinging of the test leadwire]
Measurement rangeThe current measurement range is selectable between AUTO and FIX.
AUTOAutomatically changes the current measurement range according to the measured current value.
FIXFixes the current measurement range based on the output voltage set value and LOWER set value (in UPPER OFF status).
Holding functionHolds the resistance value obtained at the end of testing while a PASS judgment is being output.
Time
Setting range for the test duration (TEST TIME)0.5 s to 999 s (TIMER OFF function provided)
Setting range for the wait time (WAIT TIME)0.3 s to 10 s [TEST TIME > WAIT TIME]
Accuracy±(100 ppm + 20 ms)
Environment
Installation locationIndoors and at altitudes up to 2000 m
Warranty rangeTemperature5 °C to 35 °C
Humidity20 %rh to 80 %rh (no condensation)
Operating rangeTemperature0 °C to 40 °C
Humidity20 %rh to 80 %rh (no condensation)
Storage rangeTemperature-20 °C to 70 °C
Humidity90 %rh or less (no condensation)
Nominal voltage range (allowable voltage range)100 V to 240 V AC(85 V to 250 V AC)
Power consumption At rated load30 VA maximum
Allowable frequency range47 Hz to 63 Hz
Insulation resistance30 MΩ or more (500 V DC) [AC LINE to chassis]
Hipot1390 V AC for 2 seconds, 10 mA or less [AC LINE to chassis]
Ground bond25 A AC / 0.1 Ω or less
Electromagnetic compatibility (EMC) *1Conforms to the requirements of the following directive and standard. EMC Directive 2004/108/ECEN 61326-1 (Class A) EN 55011 (Class A, Group 1)EN 61000-3-2EN 61000-3-3Under following conditions1.Used HV test lead wires TL08-TOS which is supplied.2.No discharge occurs at outside of the tester.3.Used the shielded cable which length is less than three meters when the SIGNAL I/O is used.
Safety *1, *2Conforms to the requirements of the following directive and standard.Low Voltage Directive 2006/95/ECEN 61010-1 Class IPollution degree 2
Dimensions (maximum)215[8.46 inch]  W ×66[2.60 inch] (85[3.35 inch]) H ×230[9.06 inch] (260[10.24 inch]) D  mm
WeightApprox. 2 kg (Approx.4.41 lbs)
AccessoriesAC power cable 1 pc.TL08-TOS high-voltage test leadwires (1.5 m)1 set OperationManual 1 copy
  • *1: Only on models that have CE marking on the panel. Not applicable to custom order models.
  • *2: This instrument is a Class I equipment. Be sure to ground the protective conductor terminal of the instrument. The safety of the instrument is not guaranteed unless the instrument is grounded properly.
Aksesuarlar

Aksesuarlar

OPTIONS

RC01-TOS

Remote control box (For one hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX

O1

RC02-TOS

Remote control box (For both-hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX

O2

DD-5P/6P

Conversion cable(DIN to Mini DIN) for connecting the remote control box (RC01-TOS or RC02-TOS) with TOS7200

O3

TL08-TOS

Test lead for TOS7200, cable length: 1.5m/max. operating voltage: 1 kV

O4

HP11-TOS

High-voltage test probe for Insulation Resistance Tester, Cable Length 1.8m (DC1kV Max. 100mA) Note: This product requires that the ROM version of the TOS7200 be 1.07 or later.

O5
