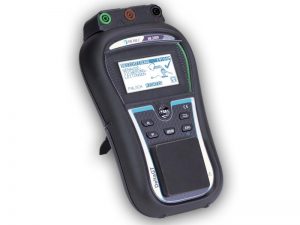

The new MI 3309 BT DeltaGT is both battery and mains powered multifunctional instrument intended to perform measurements for testing the electrical safety of portable electrical equipment.

Özellikleri

Toprak Sürekliliği Testi (Continuity Test 200mA)
İzolasyon Testi (250V – 500V DC)
Kaçak Akım Testi (Sub Leakage, Touch Leakage,Differential Leakage)
Fonksiyon Güç Ölçümü (0-4kVA)
IEC kablo polarite testi
Trms Voltaj ölçümü
Akım klambı ile TRMS kaçak akım ve yük olçümü(Opsiyonel)
Bilgisayar yazılımı Pat Link Pro ile kaydedilen sonuçları raporlama özelliği
RS232 ,USB, Bağlantısı
Üretici Kalibrasyon Belgesi ile Birlikte
Avrupa malı

Ürün Özellikleri

Toprak Sürekliliği Testi (Continuity Test 200mA)
İzolasyon Testi (250V - 500V DC)
Kaçak Akım Testi (Sub Leakage, Touch Leakage,Differential Leakage)
Fonksiyon Güç Ölçümü (0-4kVA)
IEC kablo polarite testi
Trms Voltaj ölçümü
Akım klambı ile TRMS kaçak akım ve yük olçümü(Opsiyonel)
Bilgisayar yazılımı Pat Link Pro ile kaydedilen sonuçları raporlama özelliği
RS232 ,USB, Bağlantısı
Üretici Kalibrasyon Belgesi ile Birlikte
Avrupa malı

Teknik Özellikler

Measuring Range	Resolution	Accuracy
Earth continuity (200 mA in to 2.00 Ω)
0.00 Ω to 19.99 Ω 20.0 Ω to 199.9 Ω 200 Ω to 1999 Ω	0.01 Ω 0.1 Ω 1 Ω	± (5 % of reading + 3 digits) Indication only Indication only
Insulation resistance, Insulation – S resistance (250 VDC, 500 VDC)
0.00 MΩ to 19.99 MΩ 20.0 MΩ to 49.9 MΩ 50.0 MΩ to 199.9 MΩ	0.01 MΩ 0.1 MΩ 0.1 MΩ	±(5 % of reading + 3 digits) ±(5 % of reading + 3 digits) Indication only
Differential leakage current (230 VAC)
0.00 mA to 19.99 mA	0.01 mA	±(5 % of reading + 5 digits)
Touch leakage current (230 VAC)
0.00 mA to 7.0 mA	0.01 mA	±(10 % of reading + 5 digits)
Substitute leakage current (30 VAC)
0.00 mA to 9.99 mA 10.0 mA to 20.0 mA	0.01 mA 0.1 mA	±(5 % of reading + 3 digits) ±(5 % of reading + 3 digits)
(P)RCD testing (10 mA, 15 mA, 30 mA)
0 ms to 300 ms (½xI∆N) 0 ms to 300 ms (I∆N) 0 ms to 40 ms (5xI∆N)	0.1 ms 0.1 ms 0.1 ms	±3 ms ±3 ms ±1 ms
Power measurement (230 VAC)
0.00 kVA to 4.00 kVA	0.01 kVA	±(5 % of reading + 3 digits)
Voltage TRMS measurement
80 to 300 V	1 V	±(2 % of reading + 2 digits)
Clamp current
0.00 mA to 9.99 mA 10.0 mA to 99.9 mA 100 mA to 999 mA 1.00 A to 9.99 A 10.0 A to 16.0 A	0.01 mA 0.1 mA 1 mA 0.01 A 0.1 A	±(5 % of reading + 10 digits) ±(5 % of reading + 5 digits) ±(5 % of reading + 5 digits) ±(5 % of reading + 5 digits) ±(5 % of reading + 5 digits)
General data
Power supply voltage	9 VDC (6x1.5 V battery or accu, size AA), 230 VAC
Operation	10 h
Working temperature range	0 °C to 40 °C
Maximum relative humidity	95 % RH (0 °C to 40 °C), non-condensing
Display	128 x 64 dots matrix display with backlight
Memory	1500 memory locations
Communication port	RS232 (PS/2 connector, female), USB (connector Typ B)
Overvoltage category	CAT II / 300 V
Protection classification	Double insulation
Protection degree	case IP 40 /connectors IP 20
Dimensions (w x h x d)	14 cm x 8 cm x 23 cm
Weight	1,2 kg

Aksesuarlar

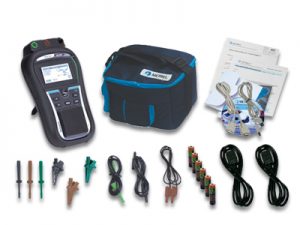

MI 3309 BT Standard set

Graphic LCD with resolution of 128 x 64 dots, with backlight.
Support for optional aPAT android application.
Bluetooth communication via aPAT android application with printer, barcode scanner and PC.
The graphic display offers easy reading of results, indications, measurement parameters and messages.
Large green and red lights for additional PASS / FAIL indication placed at the sides of the LCD.
Large data flash memory for storing test results & parameters (about 1500 tests with parameters can be stored in average).
Built-in real time clock.
QR coding system for quick test code selection and identification of device under test.
Programmable limits for PASS / FAIL evaluation.
Fully compatible with Metrel PATLink PRO PC software package, included in standard set (download, view, print and export of test results).
Optional PC SW PATLink PRO Plus (advanced test result analysis and professional test report creation).
Portable and lightweight design.
Rechargeable battery powered instrument with built-in charging circuit.
The instrument can operate from mains power or batteries.
