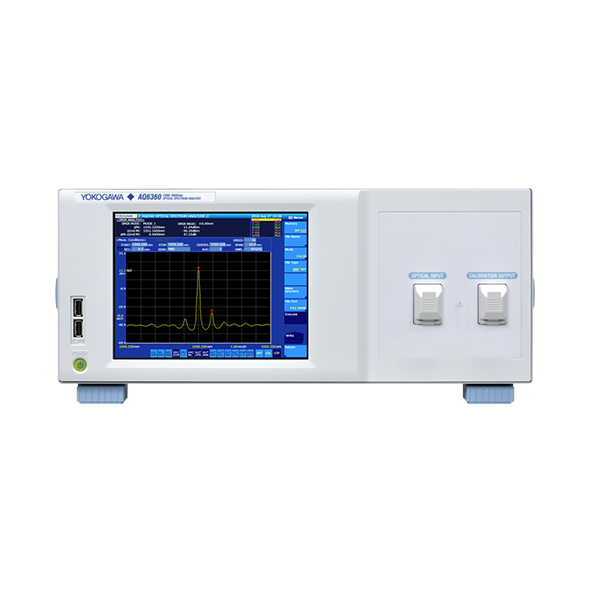

YOKOGAWA AQ6360 Telecom Production Optical Spectrum Analyzer 1200 – 1650 nm
YOKOGAWA AQ6360 Telecom Production Optical Spectrum Analyzer 1200 – 1650 nm hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The AQ6360 optical analyzer is the fastest optical spectrum analyzer for optical device manufacturing offered by Yokogawa. It is a cost-effective optical spectrum analyzer ideal for industrial manufacturing of telecom devices such as lasers, optical transceivers, and optical amplifiers.
The AQ6360 features a wavelength range of 1200 to 1650 nm for ideal manufacturing test performance. Its free-space optical input structure design allows for guaranteed high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analysis functions and Ethernet and GPIB remote interfaces.
JAPON MALI
FEATURES Ideal performance for manufacturing tests The AQ6360 optical analyzer satisfies the typical measurement needs of industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers. Wavelength range: 1200 to 1650 nm Wavelength resolution: 0.1 to 2 nm High wavelength accuracy: ±0.02 nm High dynamic range: 55… Devamı
FEATURES
Ideal performance for manufacturing tests
The AQ6360 optical analyzer satisfies the typical measurement needs of industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers.
- Wavelength range: 1200 to 1650 nm
- Wavelength resolution: 0.1 to 2 nm
- High wavelength accuracy: ±0.02 nm
- High dynamic range: 55 dB
- Wide measurement range: +20 to −80 dBm
Sweep up to two times faster
The AQ6360 can sweep up two times faster than our models designed for R&D purposes.
Free space optical input
The free space optical input structure is the most effective to guarantee high coupling efficiency and measurement repeatability.
Dual-purpose
Accepts both single-mode and multimode optical fibers
Versatile
Accepts both flat and angle polished connectors
Worry free
Damage proof internal input connector
Maintenance-free
No internal fiber to clean
Built-in wavelength reference source
(Factory option)
Space saving 4U height
(1U lower than AQ6370 Series)
AQ6370D
AQ6360
AQ6370 series compatible operation
The AQ6360 inherits the screen and menu layout from our OSA lineup, which is recognized by thousands of users all over the world as the most intuitive and easy-to-use.
Multi-touch touchscreen
Tap, drag, pinch in and pinch out. The high resolution, responsive 8.4-inch multi-touch capacitive touchscreen makes the operation of the instrument simple and intuitive.
Built-in analysis functions to increase productivity
More than ten data analysis functions are available, including WDM (OSNR), SMSR, DFB-LD, EDFA, and Spectral width.
Ready for remote operation
Ethernet and GPIB remote interfaces
The AQ6360 is equipped with GP-IB, and Ethernet interfaces for remote access and for building automated test systems.
AQ6370D compatible remote commands
It is compatible with both AQ6370D and AQ6317 commands
