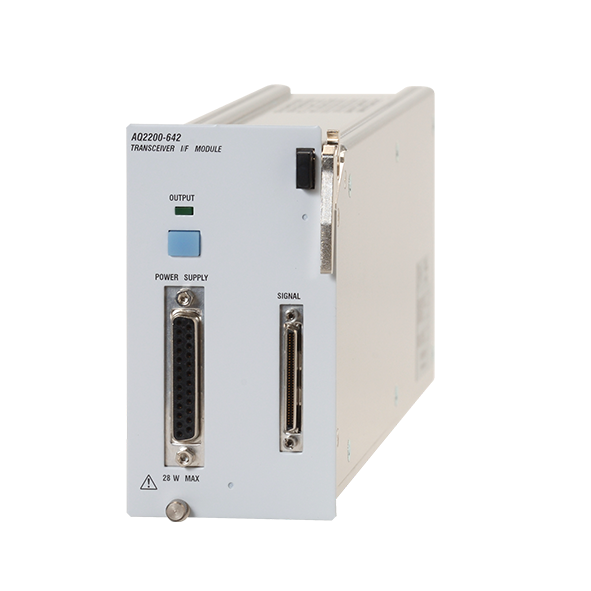

YOKOGAWA AQ2200-642 Transceiver I/F Module
YOKOGAWA AQ2200-642 Transceiver I/F Module için uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!The AQ2200-642 reduces the complexity and cost of 10G optical transceiver testing by combining bus and power control features into the same mainframe that performs Signal Generation, BERT and Optical testing. This allows a single programming interface to control all aspects of the transceiver test, simplifying test setup, decreasing test time and increasing productivity. The wiring complexity and test bench size are reduced by replacing separate Digital Multi-Meters, Programmable Power supplies and Serial I/F controllers with a single module.
JAPON MALI
FEATURES Power supply, signal control, monitoring for 10G transceiver in one module Support 10G optical transceivers XFP, SFP+, XENPAK Power supply and power current monitoring Equipped with current limiter I2C/MDIO interface Signal Control User can define the signal names Voltage monitoring of status signals Threshold adjustment for High/Low decision Resistance… Devamı
Açıklama
FEATURES
Power supply, signal control, monitoring for 10G transceiver in one module
- Support 10G optical transceivers
- XFP, SFP+, XENPAK
- Power supply and power current monitoring
- Equipped with current limiter
- I2C/MDIO interface
- Signal Control
- User can define the signal names
- Voltage monitoring of status signals
- Threshold adjustment for High/Low decision
- Resistance monitoring for APS SET
Ürün Özellikleri
Ürün Özellikleri
Teknik Özellikler
Teknik Özellikler
Aksesuarlar
Aksesuarlar
YOKOGAWA Hakkında
Japonya merkezli küresel bir teknoloji lideri olan Yokogawa, endüstriyel tesisler için gelişmiş proses otomasyonu ve kontrol sistemleri sağlamanın yanı sıra, Ar-Ge ve üretim süreçleri için yüksek hassasiyetli güç analizörleri, osiloskoplar ve veri toplama sistemleri gibi test ve ölçüm ekipmanları üreten bir markadır.
