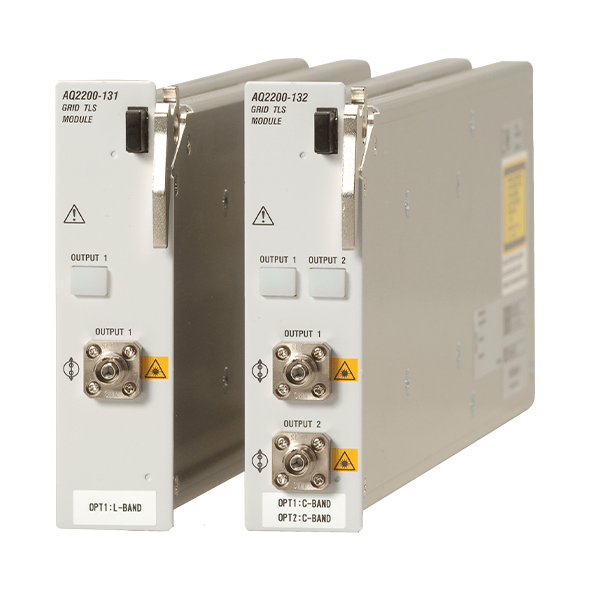

YOKOGAWA AQ2200-131/132 Grid TLS Module (C/L band, 1-channel / 2-channel)
YOKOGAWA AQ2200-131/132 Grid TLS Module (C/L band, 1-channel / 2-channel) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The AQ2200-131 and AQ2200-132 are single and dual channel tunable light source modules. The output wavelength can be conveniently set to the predefined DWDM grid channels.
JAPON MALI
FEATURES Flexible Frequency/ Wavelength Selection Frequency (Wavelength): C-band, L-band Tunable to arbitrary grid frequency with min. 100 MHz steps Fine-tuning capability with min. 1 MHz steps (at grid setting mode) Narrow-line width: 100 KHz High-Stability Optical Output and High SMSR High-stability output level: ± 0.03dB High-stability frequency(wavelength): ± 0.3GHz (±… Devamı
Açıklama
FEATURES
Flexible Frequency/ Wavelength Selection
- Frequency (Wavelength): C-band, L-band
- Tunable to arbitrary grid frequency with min. 100 MHz steps
- Fine-tuning capability with min. 1 MHz steps (at grid setting mode)
- Narrow-line width: 100 KHz
High-Stability Optical Output and High SMSR
- High-stability output level: ± 0.03dB
- High-stability frequency(wavelength): ± 0.3GHz (± 2.4pm)
- Output level: +12.5dBm or more
- High SMSR: 45dB
Examples of Measurement Application
- Optical fiber amplifier measurement system
Ürün Özellikleri
Ürün Özellikleri
Teknik Özellikler
Teknik Özellikler
Aksesuarlar
Aksesuarlar
YOKOGAWA Hakkında
Japonya merkezli küresel bir teknoloji lideri olan Yokogawa, endüstriyel tesisler için gelişmiş proses otomasyonu ve kontrol sistemleri sağlamanın yanı sıra, Ar-Ge ve üretim süreçleri için yüksek hassasiyetli güç analizörleri, osiloskoplar ve veri toplama sistemleri gibi test ve ölçüm ekipmanları üreten bir markadır.
