Electronic and Automatic Primary Injection Test System (eKAM)

Teklif İsteyinFİYAT TEKLİFİ İÇİN TIKLAYIN!

eKAM is the new fully automatic electronic primary injection test equipment.

eKAM Datasheet

Açıklama

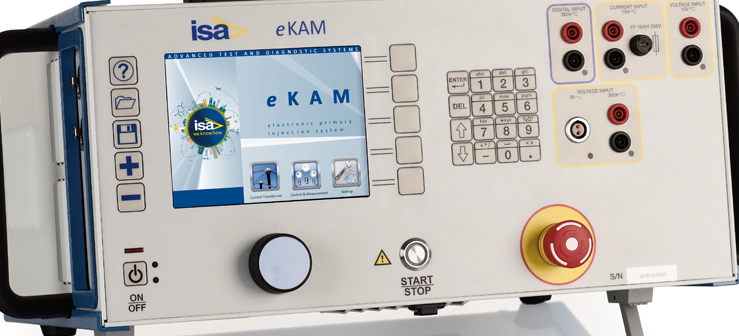

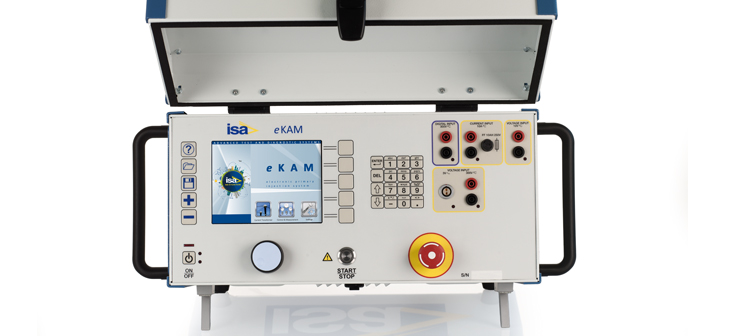

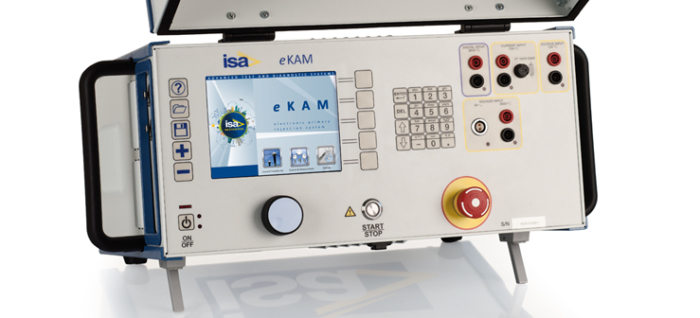

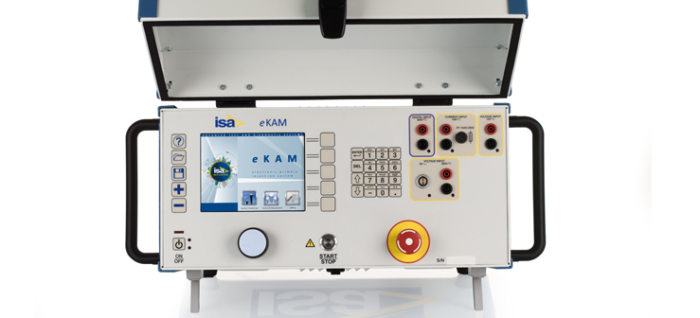

eKAM test system includes two portable units: one control unit
with a large graphical display that adjusts the AC voltage output
(up to 220 V) and one current unit (up to 2000, 3000, 5000A).
BUX 2000 (2000 A) – BUX 3000 (3000 A) – BUX 5000 (5000 A):
one or more BUX current unit can be connected to eKAM (not
simultaneously), they can be ordered separately when the order
is placed or at a later moment.
With the control knob and the LCD display, it is possible to enter
the MENU mode, that allows to set many functions, making
eKAM a very powerful testing device, with manual and automatic
testing capabilities and with the possibility to transfer test
results to a PC via ETHERNET or Pen Drive.
The TDMS software, which comes with the test set, allows to
download, display and analyze test results obtained in local
mode. Remote maintenance and diagnostic of the instrument
are available via Ethernet. TDMS software operates with all Windows
® versions. The ease of operation has been the first goal of
eKAM. This is why the LCD display is so large and the dialogue in
the MENU mode is made easy.
eKAM includes three measurement inputs:

. DC voltage (10 V DC).
. AC voltage:
.. High range (300 V AC)
.. Medium range (10 V AC)
.. Low range (3 V AC)
. Current (10 A AC or DC).

All these inputs are independent among them (unless 3V and
300V) and allow the measurement of CT outputs or of another
source. In addition, a digital input (up to 300 V) is available: it
can measure the timing of a wet or dry contact. The instrument
is housed in a transportable aluminium box, which is provided
with a cover and handles for ease of transportation. A transport
case can also be supplied upon request.

Ürün Özellikleri

eKAM is the new fully automatic electronic primary injection test equipment. e KAM test system includes two portable units: one control unit with a large graphical display, that adjusts the output, and one current unit (up to 2000, 3000, 5000A). It can also perform Step and Touch tests with the optional modules STLG-STSG and ground grid accessories kit.

Fully automatic
Two portable units: control and current units
High current output: up to 2000 A, 3000 A and 5000 A
Variable output frequency: 15 - 500 Hz
CT ratio, burden and polarity test
Large graphic display
Advanced Test & Data Management Software for test set control, results storage and analysis
Step & touch plus ground resistance tests with STLG option
Reduced timing test
USB interface and Ethernet interface for PC connection
IEC 61850-9-2 sample values protocol interface
Compact and lightweight

Teknik Özellikler

GENERATOR OUTPUTThe internal generator has one high power - AC voltage output, notinsulated from the mains. The adjustment is performed by the localThe generated frequency can be userdefined or synchronized to thesupply frequency (with optional power line synchronizer). The followingspecification applies to the output.

MAX VOLTAGE OUTPUT V	OUTPUT POWER VA	MAX TESTs	DURATION	FRECUENCYHz
220	1500	Steady	15 to 500
220	4000	300	15 to 500
220	5000	25	15 to 50

Output frequency. AC output frequency range: 15÷500 Hz.. Frequency resolution : 10 mHz. INPUT MEASUREMENTSCurrent and VoltageIt is possible to meter the current and the voltage of an external input. Three metering groups are available:. AC or DC current, up to 10 A. AC voltage, with two connections: o High range, up to 300 VAC.o Low range, up to 3 V AC.. AC/DC voltage up to 10 V DC. Resolution and accuracyBinary Input - Timer

INPUT	RANGE	ACCURACYreading & range
AC CURRENT	1 A; 10 A	<%0.05 <%0.05
DC CURRENT	1 A; 10 A	<%0.03 <% 0.08
	300 mV; 3 V;30 V; 300 V	<%0.15 <%0.05<%0.05 <%0.05
	30 mV300 mV3 V	<%0.1 <%0.25<%0.08 <%0.08<%0.03 <%0.08
DC VOLTAGE	10 mV; 100 mV <%0.05 <%0.151 V;10V <%0.03<%0.08

The test set allows testing protection relays. The test current or voltage can be ramped or stepped. As the output changes, a timer is started; the timer stops as the Digital input senses that the relay has tripped or the output cut is cut. Characteristics of the Digitalinput:

The input may be selected as Normal Open, NormalClosed
The timer can start from an analog input ( current orvoltage)
The timer can start and stop at the changing of the digital input, both dry or wetcontact
Type of input: either dry or under voltage. Maximum input: 300 V AC orDC
Voltage thresholds: 5 V, 24 V, 48 V or > 80V
Timer resolution: 1ms

Phase angle measurementThe test set measures the phase angle between the two AC selected parameters which are used during the test.

MEASUREMENT	RANGE	RESOLUTION	ACCURACY
PHASE	0 - 360	0.01°	< 0.15°

Starting from the internal and external measurements, the test set computes the following parameters:

CTRATIO
CTPOLARITY
CTBURDEN

Other measurement: Z, P, R, X, S, Q, cos(φ) For the CT ratio measurement, the following applies:. Range: 0÷9.999. Resolution: 1. Accuracy: ±0.15% of the reading ± 0.15% of the range

DISPLAY

The large graphic display has the following characteristics:. Pixels: 640 x 480, coloured. LCD type: TFT. View area: 132 x 99 mm. Backlight

LOCAL TEST CONTROL

Local test control: by the START/STOP pushbutton. AGer test selection, pressing it, the output is generated, according to the type of test. During ON, if a manual control test is selected, the operator adjusts the output at the desired value. Test saving:. Automatic save.. AGer operator conﬁrmation.

OTHER CHARACTERISTICS

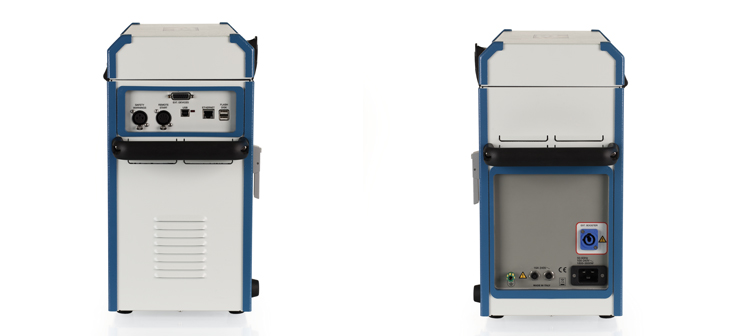

Communication interfaces:. ETHERNET for the PC connection. USB port for the USB key. Interfaces to external modules:. Alarms to a ﬂashing light. Remote start input. Mains supply100-230 V ± 15%; 50-60 Hz. Maximum supply current: 16 A. Dimensions: 450 (W) x 400 (H) x 230 (D) mm.Weight: 17 kg. APPLICABLE STANDARTSThe test set conforms to the EEC directives regarding Electromagnetic Compatibility and Low-Voltage instruments. Electromagnetic Compatibility: Directive no. 2014/30/UE. Applicable Standard: EN61326-1:2013. Low Voltage Directive: Directive n. 2014/35/UE. Applicable standards: CEI EN61010-1:2010. In particular:. Input/output protection: IP 2X - IEC69529.. Operating temperature: -10° to 55 °C; storage: -20 °C÷70 °C. Relative humidity: 5-95% without condensing BUX TECHNICAL SPECIFATION

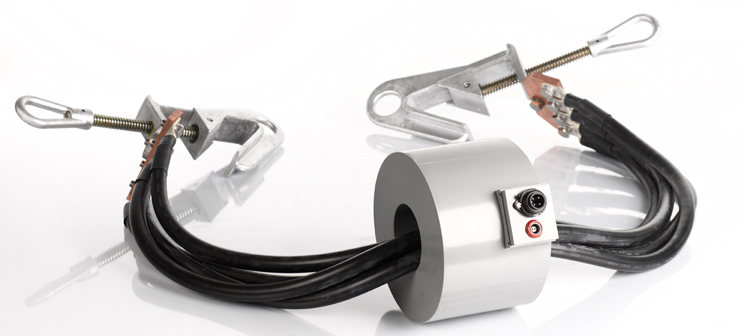

BUX 2000, BUX 3000 and BUX 5000 - VERY HIGH CURRENT BOOSTER

The current boosters allows performing tests up to 2000A, 3000 A and 5000A.The option is made of a module, which incorporates:

A power transformer, which generates a low-voltage, highcur- rentoutput.

•A metering CT, which measures the output current and sends the metering to eKAM.

BUX 2000

TEST CURRENT A	OUTPUT POWER VA	TEST DURATIONs
500	700	INFINITE
1000	1500	60
2000	5000	25

BUX 3000

TEST CURRENT A	OUTPUT POWER VA	TEST DURATIONs
1000	900	INFINITE
2000	2400	300
3000	4800	60

BUX 5000

TEST CURRENT A	OUTPUT POWER VA	TEST DURATIONs
1000	700	INFINITE
2000	1500	300
3000	2700	30
4000	4200	20
5000	5500	10

Frequency: 15 Hz ÷ 500Hz.*
Weight:BUX300015kg,BUX200018kg,BUX500019kg

without current cables and clamps.

Dimensions for models BUX 2000 and BUX 3000: external diameter 190 mm; height 120mm.
Dimensions for model BUX 5000: external diameter 200 mm; height 170mm.
All high current boosters are supplied with:
. high current cable, made of 4 cables, 95 sq. mm, 1.2 m long, with 2 high current clamps for BUX3000
. 4 cables, 95 sq. mm, 2 m long, with 2 high current clamps for BUX 2000
. 12 cables, 95 sq. mm, 0.8 m long, with 4 high current clamps for BUX 5000
. one power supply cable , 20 m long
. one measurement cable, 20 m long, with the output current measurement.
* The output amplitude may decrease for frequency below 50 Hz and above 60 Hz.

Aksesuarlar

STANDARD CONNECTION CABLES

NOTE: standard cables can also be ordered separately.

. One mains supply cable, 2 m long.
. One grounding cable, 6 m long.
. One interface cable for the USB port.
. One ETHERNET interface cable.
. One USB pen drive.
. One cable for the 10A measurement to be connected to the secondary of the CT 2.5 sq. mm, 10 m long .
. Four crocodiles for measurements connections (two red and two black).
. One cable for voltage measurements 1 sq. mm, 10 m long .
. two short cables, 2m long (red and black), for other measure- ments.
. One adaptor for 10V input - measuring BUX cable.

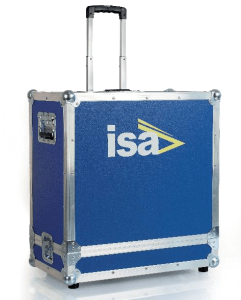

TRANSPORT CASES

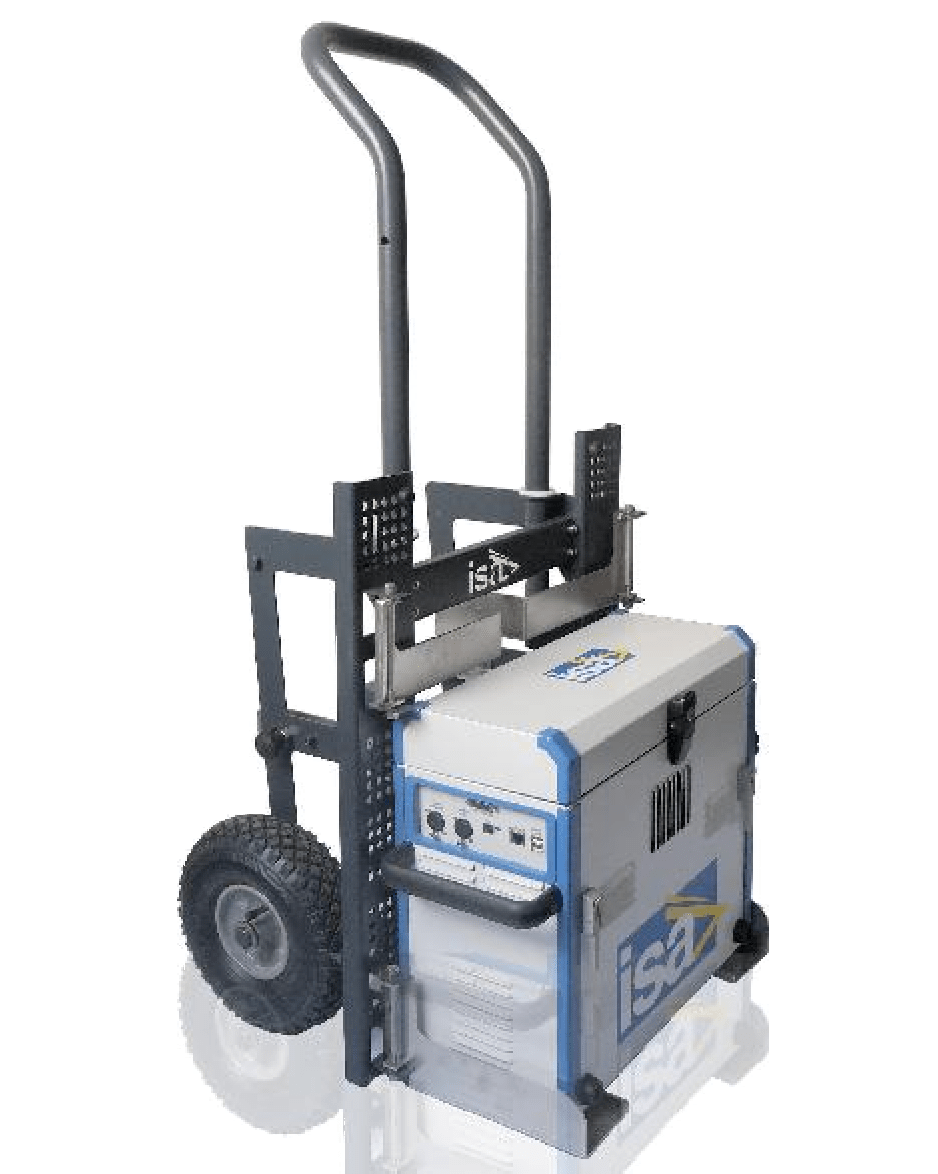

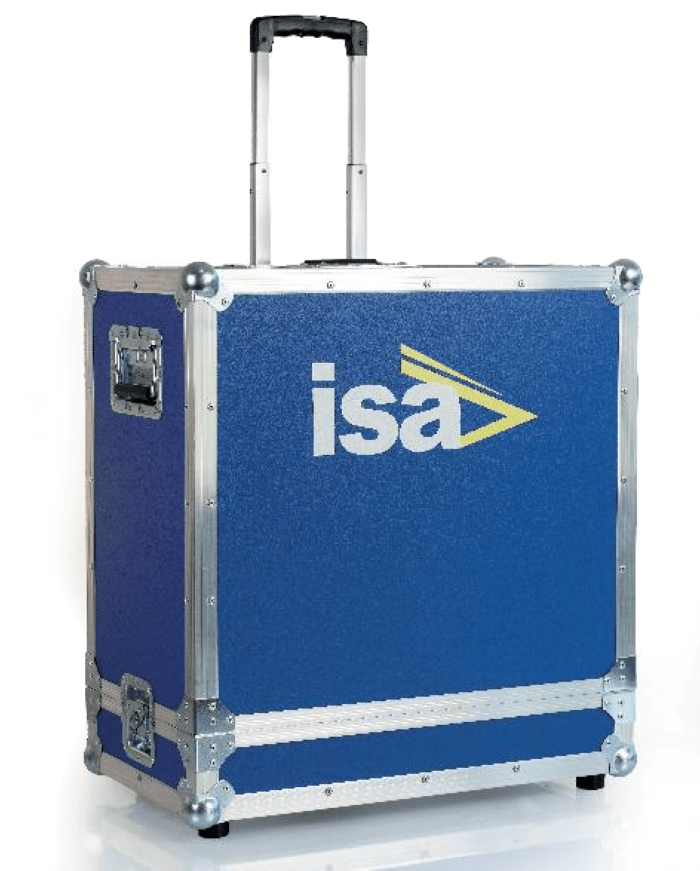

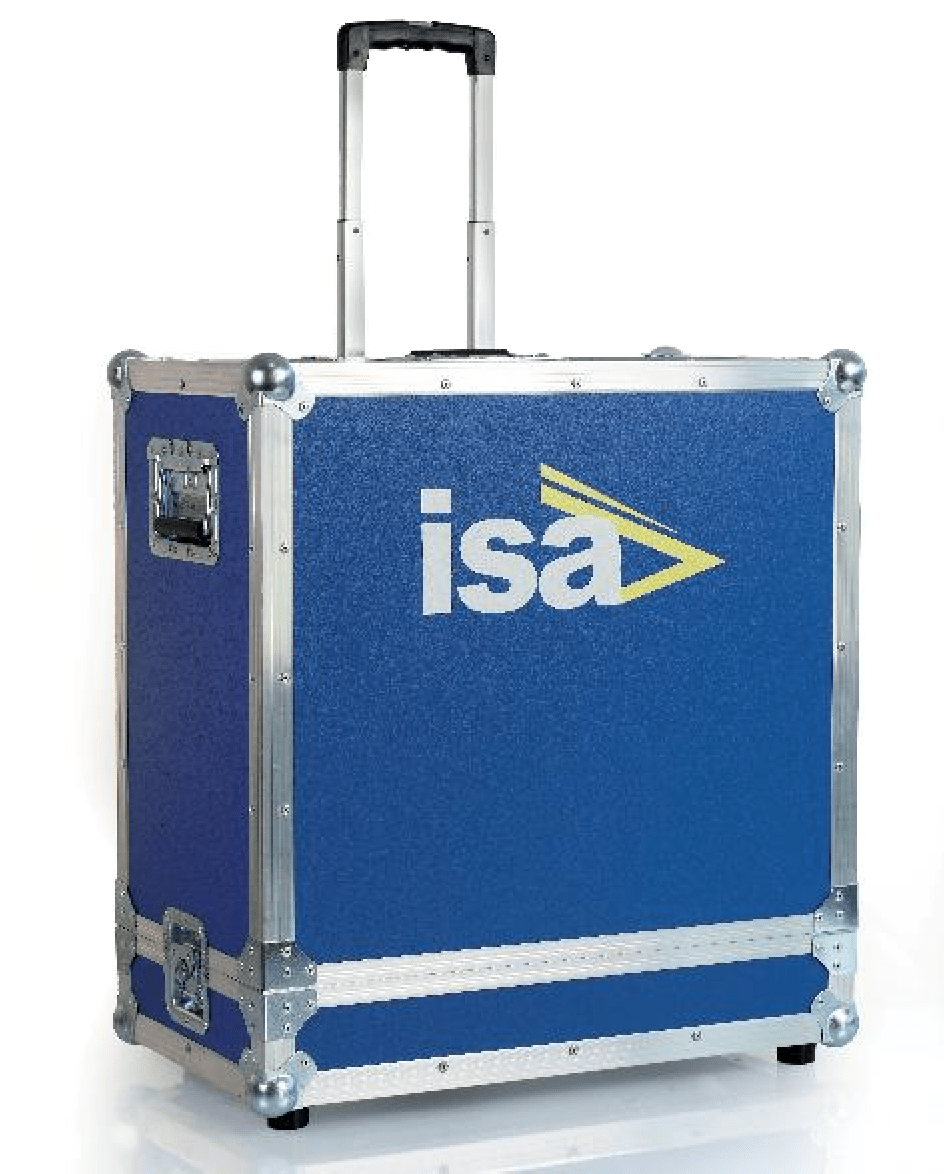

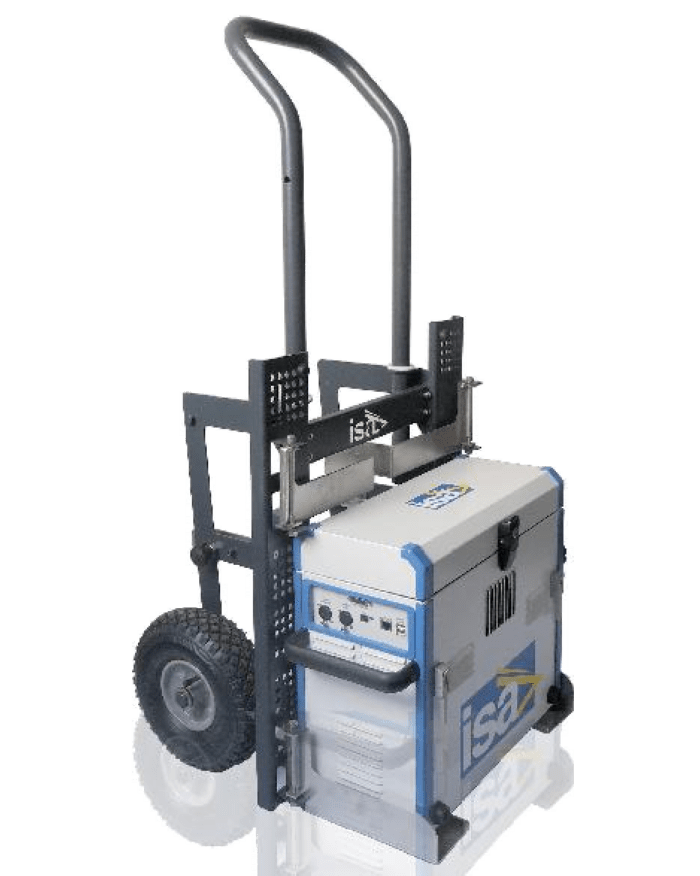

Transport cases for eKAM and BUX units are available; all of them allow transporting the device with no concern about shocks or falls up to 1 m. The case is supplied with handles and wheels. eKAM transport case protection degree: IP IEC60529 OPTIONAL ACCESSORIESTROLLEYThe trolley eases the transport of eKAM acc2

STEP & TOUCH TESTING KIT

STLG − MODULE FOR GROUND TESTING AND LINE IMPEDANCE MEASUREMENTTheoptionallowsperformingboththemeasurementof:ground grid resistance, step and touch tests, overhead lines zero sequence and mutual couplingcoefficients.STLG is a high power transformer, which increases the output current. A high current switch allows selecting the desired current range. A voltage meter displays the generated voltage. TheoptiontakesitspowerfromtheEXT.BOOSTERconnectorof eKAM. Output current and voltage are metered and sent back to eKAM measuring inputs; a third output allows eKAM toknow the selected range. Device characteristics are thefollowings.

. Input: from eKAM, via the booster connector
. Output current ranges: 11, 22, 35, 55, 105 A AC
. Output power: 1800 VA steady; 5200 VA peak for 10 s
. High current range selector switch
. Analogue output voltage meter. Meter range: 600 V AC
. Outputs to eKAM: selected current output range, output cur- rent and output voltage.

All necessary connection cables are included in the option. Current clamp provided: 400 A range.Weight: 25 kg. Dimensions: 23 x 33 x 44 cm. STSG − SAFETY GROUNDING MODULEDuring tests, STLG is connected to the overhead line to be tested. The purpose of the STSG optional device is to pro- tect the operator against possible high voltage spikes. STSG incorporates three voltage suppressors and one high current switch, to connect three lines in parallel. This option applies in conjunction with STLG. Optioncharacteristics:

. Nominal AC spark-over voltage: 1000 V rms
. Impulse spark-over voltage: 2000 V peak
. Short-circuit proof with 25 kAeff / 100 ms; 36 kAeff / 75 ms
. Connection via three cylindrical ball studs 16, 20 or 25 mm diameter. The ball diameter must be specified at order.
. Weight: 9.1 kg. Dimensions: 41 x 21 x 13.5 cm
. Grounding cable included: 95sq.mm, 2m.

GROUND GRID TEST ACCESSORIES KITThe option is the kit of connection cables, auxiliary spikes and other accessories that allows connecting eKAM or STLG to the testingdevicesandperformingalltypesoftests.Thekitincludes:

. Four earth spikes for the soil resistivity test and for the earth resistance test.
. Two auxiliary earth spikes, for tests in small sites.
. Three cables, wound on wheels, 200 m long.
. One mains synchronizer device, to synchronize the eKAM ge- neration to the mains.
. Two test probes for the step and touch test.
. One voltage meter, digital, type true RMS, for the earth resi- stance and step and touch tests.
. One resistor box for the step and touch test.

LINE IMPEDANCE TESTING KIT

ThekitismadeofSTLG-LineandGridmoduleandSTSG-safety grounding module, without the line and gridaccessories.

OPTIONAL SOFTWARE

PADS - POWER APPARATUS DIAGNOSTIC SOFTWAREPADS - Power Apparatus Diagnostic Software is a powerful software application, included in TDMS software, that allowthe remote control of theeKAM
