Merytronic Ariadna IC1G

Teklif İsteyin

Ultraportable live network LV cable identifier

Ariadna IC1G-DATASHEET

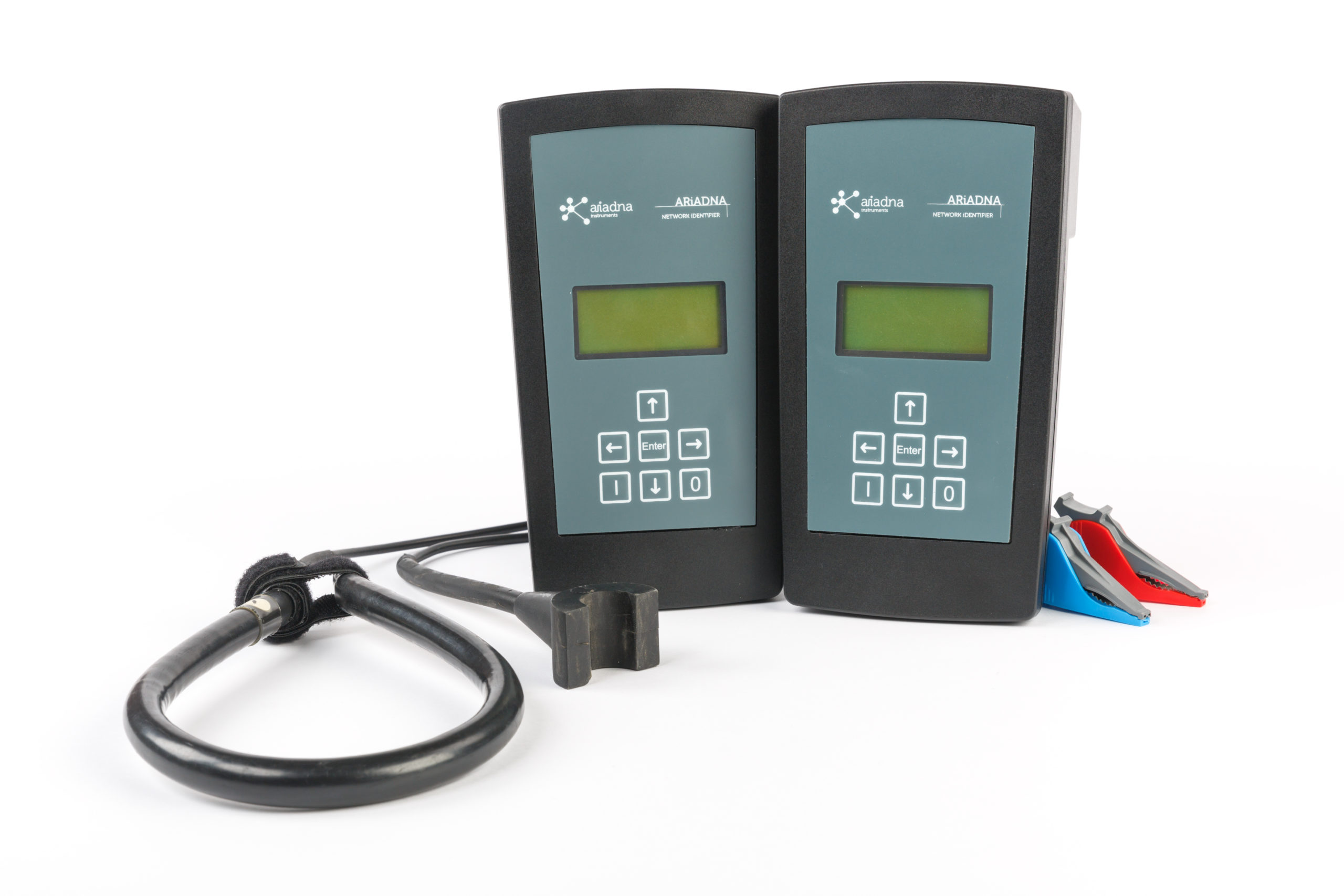

The IC1G Cable Identification Equipment, consists of a transmitter, IC1G-TX, and a receiver, IC1G-RX. Equipment operation is simple: once the transmitter has been connected to an accessible point of the network, the receiver can be used to identify the cable at any location, from the supply point to the MV/LV… Devamı

Kategoriler: Kablo Test Cihazları, Kablo Takip Cihazları, Fider Tespit / Kablo Tanımlama (Tefrik) Cihazları Etiketler: Kablo Takip, Kablo Test Cihazı
Paylaş
Facebook Twitter Pinterest linkedin WhatsApp WhatsApp
  • Açıklama
  • Ürün Özellikleri
  • Teknik Özellikler
  • Aksesuarlar
Açıklama

1

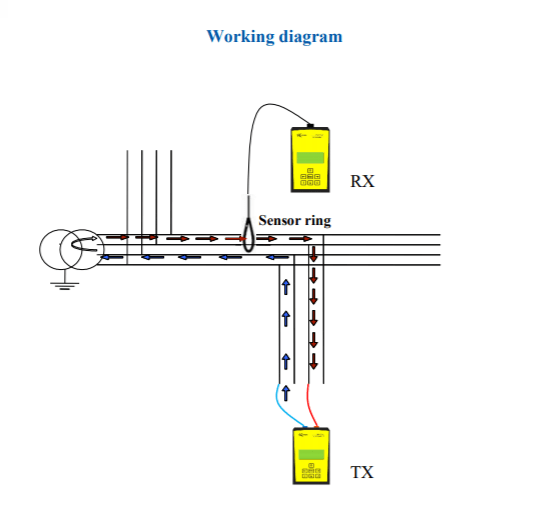

The IC1G Cable Identification Equipment, consists of a transmitter, IC1G-TX, and a receiver, IC1G-RX. Equipment operation is simple: once the transmitter has been connected to an accessible point of the network, the receiver can be used to identify the cable at any location, from the supply point to the MV/LV transformer.

Ariadna Instruments has developed the IC1G, an ultraportable Cable Identifier which is used in LV distribution cables for positive cable identification.



INTRO

Features

  • Positive cable identification without de-energizing the line.
  • Works on LV distribution cables up to 250 Vac (50 or 60 HZ networks).
  • Two different sensors: Sensor Ring; Identifies cables by placing a sensor ring around the cable (single core cables). “U” sensor; Identifies conductors by touching the cable (single and multi-core cables).
  • The identification algorithm works continuously, and positive identification is achieved in seconds.
  • Easy to use due to automatic synchronization between transmitter and receiver.
Ürün Özellikleri

Ürün Özellikleri

Electric utilities and their contractors need to identify live electric cables under certain circumstances: when opening a trench, making branch circuits, before and after distribution network maintenance duties, etc. This identification has to be quick and unambiguous due to possible consequences that could result when choosing the wrong cable (life threat, network failure, etc.).
  • Positive cable identification without de-energizing the line.
  • Works on LV distribution cables up to 250 Vac (50 or 60 HZ networks).
  • Two different sensors: Sensor Ring; Identifies cables by placing a sensor ring around the cable (single core cables). “U” sensor; Identifies conductors by touching the cable (single and multi-core cables).
  • The identification algorithm works continuously, and positive identification is achieved in seconds.
  • Easy to use due to automatic synchronization between transmitter and receiver.
Teknik Özellikler

Teknik Özellikler

IC1G-TX (Transmitter)

IC1G-RX (Receiver)

Dimensions (cm):

12 x 22 x 6,5

Protection:

IP54

Weight:

0,75 Kg

V working

100-250 Vac (50/60Hz)

-

Max. passive current (50/60Hz)-

250A

V connection max

480 Vac (50/60Hz)

-

Identification indication:

-

Acoustic and visual (display)

Power supply:

4x1,5V AA batteries

Output current:

70 A Peak

-

Sensors:

-

Rogowski coil

U sensor

Cable length

180 cm

-

S.C. protection

6A 10x38 mm fuse

-

Working temperature:

-10°C/ 55°C

Aksesuarlar

Aksesuarlar
