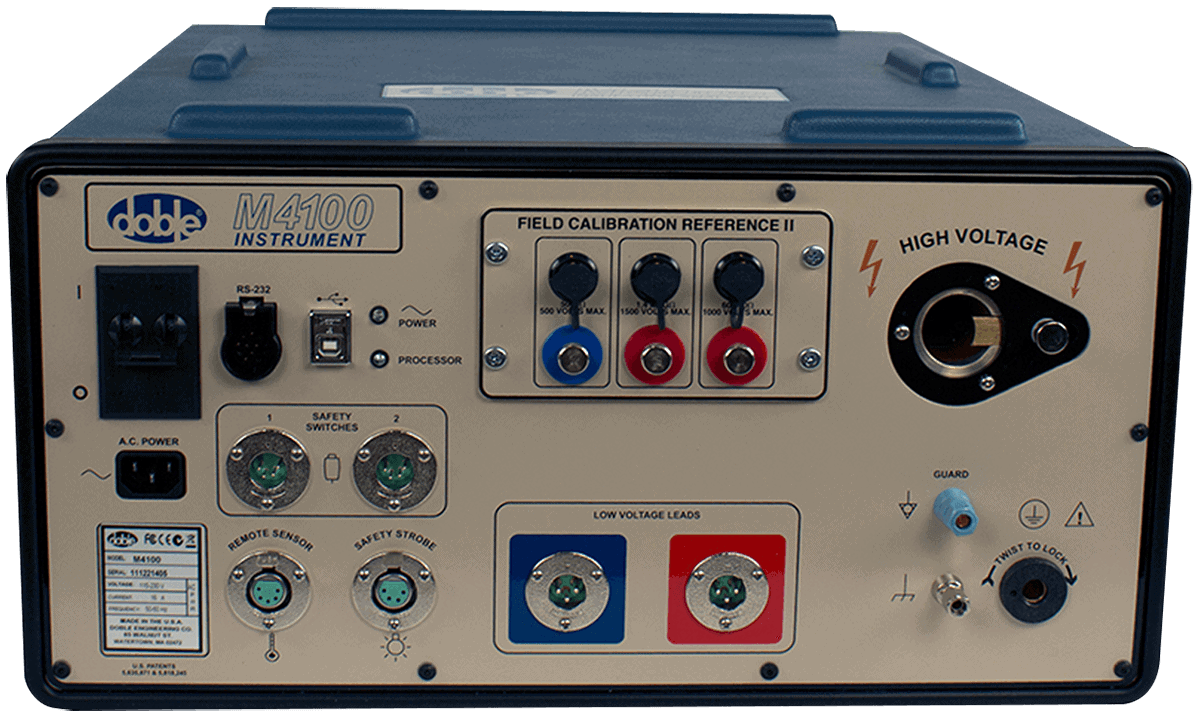

Doble M4100 Yüksek Gerilim Ekipmanları için Test Cihazı

Açıklama

The industry standard for commissioning, diagnostic, and preventative testing

The M4100’s unique combination of test capabilities and artificial intelligence analysis software makes it the power industry’s most trusted Power Factor/Tan-Delta instrument.

The M4100 instruments are used around the globe thanks to their comprehensive testing options, safety features and measurement accuracy.

Testing is simple and accurate with the M4100 and Doble Test Assistant (DTA) software. You can then analyze your test results with the help of FRANK™, the First Response Analytics Knowledgebase, which provides clear recommendations and explanations.

Ürün Özellikleri

Power Factor/Tan Delta testing to confirm insulation integrity and quality
Capacitance testing to measure physical changes that may have occurred to the apparatus
Turns ratio testing to detect shorted turns or winding damage
Leakage reactance/short circuit impedance testing to evaluate winding deformation
Single phase excitation current testing to evaluate the transformer magnetizing circuit
Capacitor bank testing to detect deteriorating or failed capacitors within a bank
Easy and accurate testing with Doble Test Assistant (DTA) software

Safety is our priority with safety switches, power strobes and ground earth relay interlocks
Eliminates the effect of varying electrostatic interference with patented Line Frequency Modulation, which makes measurements at a frequency above and below the system frequency
Reliability & Accuracy – generates its own clean test signal using an internal waveform generator for reliable results and stable readings
Software firmware system senses abnormal current, temperature and voltage operation even before a user would notice
Instantly analyze your test results, providing clear recommendations and explanations with FRANK™, the First Response Analytics Knowledgebase

Teknik Özellikler

M4100 datasheet

Aksesuarlar

Laptop Computer

A PC (typically a laptop or tablet) running Microsoft® Windows 10 (or later) is required to operate the M4100 instrument using the latest version of Doble Test Assistant (DTA) Software. The PC must have one available USB or Serial port for communication with the M4100. Contact Doble for available options.

M4110 Leakage Reactance Interface

The M4110 Leakage Reactance Interface (Figure 1-7) provides a power source and signal conditioning that allows the M4100 to measure transformer leakage reactance, also known as short-circuit impedance. The Leakage Reactance test cannot be run without this interface. Current and voltage cables are provided for connection to the transformer. The safety switch and safety strobe are required for this interface.

M4140 Capacitor Bank Test Kit

The M4140 Capacitor Bank Test Kit (Figure 1-8) tests individual capacitors without disconnecting them from the capacitor bank. To use the M4140, the M4110 Leakage Reactance Interface is required.

M4151 Field Calibration Reference

The M4151 Field Calibration Reference module enables the M4100 to perform System Status, Calibration Verification, and Field Recalibration tests in the field. When included, the M4151 is integrated into to the body of the M4100.The M4150 Field Calibration Reference, with two sets of terminals instead of three, is no longer available.

Type C Resonating Inductor

The Type C Resonating Inductor is an adjustable reactor that extends the charging current range of the M4100 to test larger apparatus.

M4300 Transport

In one configuration, the M4300 Transport moves and stores the M4100 system.

Doble Test Assistant (DTA) Software

Doble Test Assistant (DTA) software provides standardized apparatus test procedures and templates, data management, and optional expert system software for apparatus condition assessment. For more information, see the Doble Test Assistant Field System User Guide and the Doble Test Assistant Web-Enabled Office System.

dobleTTR Capacitor

The TTR (Transformer-Turns-Ratio) Testing Capacitor is a small, portable capacitor that can be energized at up to 10 kV for performing turns-ratio tests with the M4100 at high voltages.

Transport Cases

Doble offers special high-impact padded cases for transporting the M4100 and associated components.
