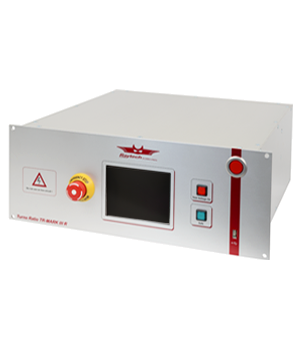

Turns Ratio Meter 3 Phase


The TR-MARK III R 250V is the successor of the famous TR-MARK III R. Besides an extended test voltage up to 250V, it offers new features and increased accuracy to make it a perfect system. A color LCD with back lighting and touch screen increases handling and user comfort. Two USB interfaces make it easy to store measurements on external storage devices and transfer easily to a personal computer or download nameplate data of xformer to test.

Model Features

  • Model: TR-MARK III R 250V
  • Size L: 490 mm (19.3”) W: 436 mm (17.2”) H: 177 mm (7”), Rack Unit: 4U
  • Weight 7.8 kg (17 lbs.) • Input Power 100 to 250 VAC 50/60 Hz auto ranging. Fuse: 2AT
  • Test Voltage User Selectable: 250, 100, 40, 10, and 1VAC
  • Max test current: 1A • Panel Display Color LCD with back lighting and touch screen
  • Front Panel Sealed, Anodized
  • Interfaces: 4 USB 2.0 full speed (3 host, 1 device) and 9 Pin RS232 serial
  • Memory Storage Internally stores more than 10 000 test results
  • Temperature Operating –10°C to +60°C, Storage –20°C to +70°C
