Stackable Modular DC Hipots

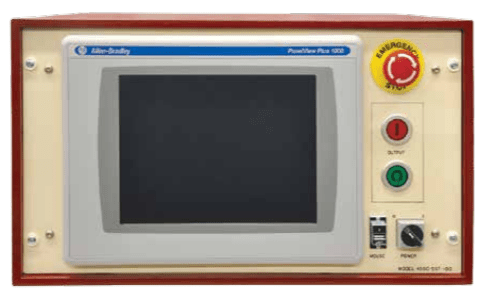

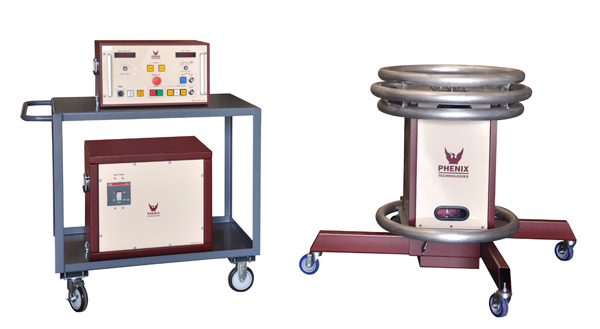

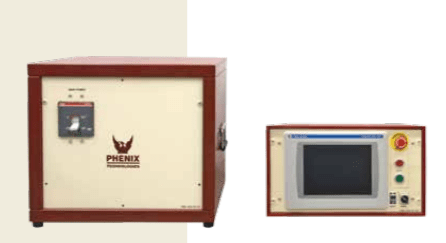

Phenix Technologies offers Modular DC Hipots with 1 to 6 stackable modules mounted on a mobile base that will generate a DC voltage in increments of 100 kV DC up to 600 kV DC. Each module is rated for 5 mA and is air insulated. Cooling AN (Air–Natural, Convection). Both models offer reversible polarity. Each model consists of a base with casters, corona rings, a control cabinet, a regulator cabinet, and the required number of modules to reach the desired voltage.

• Lightweight and rugged for ease of mobility
• Expandable
• Air insulated design

Key Features

• Stackable modules utilizing unique spring loaded contact design
• No wires between modules
• Expandable from 100 kV DC to 600 kV DC
• Reversible polarity
• Zero Start interlock
• External interlock provision
• Motorized control of output voltage
• Multi-range digital metering
• Guard circuit to eliminate stray leakage current from specimen under test
• Ripple <5%
• Operation/maintenance manual
