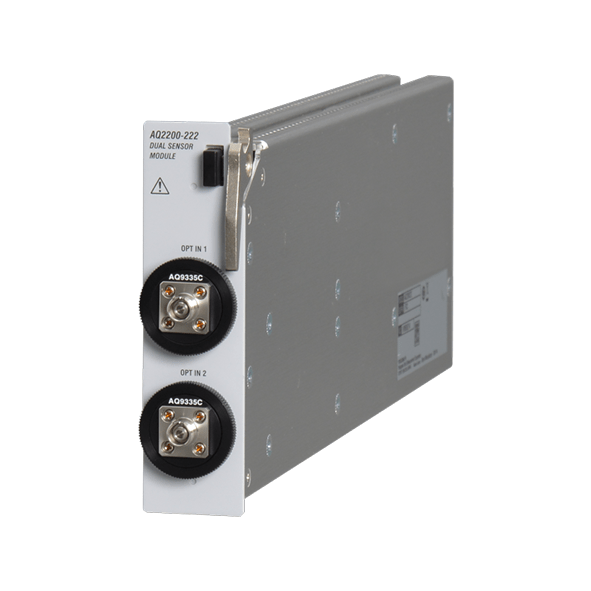

YOKOGAWA AQ2200-222 Dual Sensor Module (800 to 1700 nm)
YOKOGAWA AQ2200-222 Dual Sensor Module (800 to 1700 nm) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
The AQ2200-222 is a high-performance yet compact module equipped with two sensors. The module offers high-speed sampling, low polarization dependency, and rich data processing capabilities for improved measurement throughput and low-cost multi-port measurement. With two high-performance sensors in one slot, this Optical Power Meter Sensor Module is ideal for space-saving, multi-port measurements.
JAPON MALI
FEATURES Compact, the AQ2200-222 comes with two high-performance sensors in a module the size of just one slot. Ideal for powerful yet compact systems. Wide wavelength range: 800 to 1700 nm Wide power range: -90 to +15 dBm High-speed measurement: 100 µs (minimum sampling period) Optical connector compatibility: FC, SC,… Devamı
Açıklama
FEATURES
Compact, the AQ2200-222 comes with two high-performance sensors in a module the size of just one slot.
- Ideal for powerful yet compact systems.
- Wide wavelength range: 800 to 1700 nm
- Wide power range: -90 to +15 dBm
- High-speed measurement: 100 µs (minimum sampling period)
- Optical connector compatibility: FC, SC, MU, and LC
- Can be combined with various AQ2200 series modules or other Yokogawa’s optical communication measuring instruments to build versatile measuring systems.
Ürün Özellikleri
Ürün Özellikleri
Teknik Özellikler
Teknik Özellikler
Aksesuarlar
Aksesuarlar
YOKOGAWA Hakkında
Japonya merkezli küresel bir teknoloji lideri olan Yokogawa, endüstriyel tesisler için gelişmiş proses otomasyonu ve kontrol sistemleri sağlamanın yanı sıra, Ar-Ge ve üretim süreçleri için yüksek hassasiyetli güç analizörleri, osiloskoplar ve veri toplama sistemleri gibi test ve ölçüm ekipmanları üreten bir markadır.
