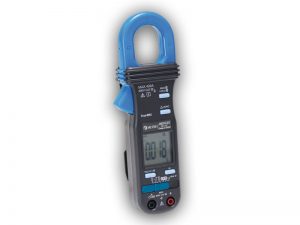

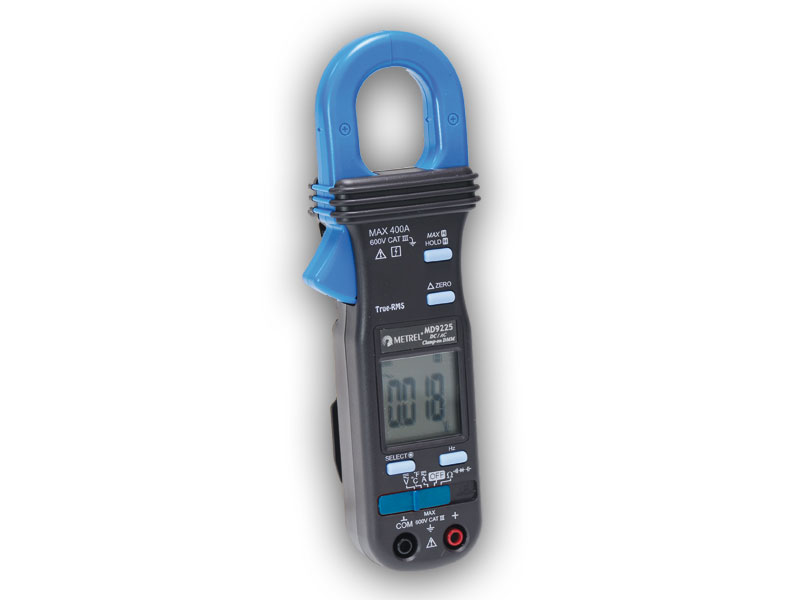

METREL MD 9225 CURRENT CLAMP

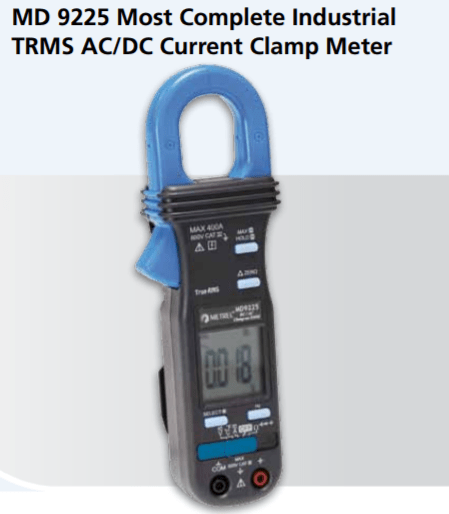

METREL MD 9225 CURRENT CLAMP için uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!Complete Industrial TRMS AC/DC Current Clamp Meter
The MD 9225 is a versatile current clamp meter with perfect combination of size and built-in functions. It measures AC/DC current and voltage, capacitance, temperature, full range resistance and captures In-rush current. Display with large easy-to-read figures and one-handed operation make MD 9225 an extremely easy-to-use. This compact instrument combines… Devamı
The MD 9225 is a versatile current clamp meter with perfect combination of size and built-in functions. It measures AC/DC current and voltage, capacitance, temperature, full range resistance and captures In-rush current. Display with large easy-to-read figures and one-handed operation make MD 9225 an extremely easy-to-use. This compact instrument combines a high level of functionality, small size and portability. All built-in features make MD 9225 a perfect tool for advanced applications.
TEST FUNCTIONS
- TRMS AC, DC voltage measurement;
- TRMS AC, DC current measurement;
- Capacitance measurement;
- Resistance measurement;
- Diode test;
- Frequency measurement;
- Continuity test (acoustic signaling);
- Temperature measurement.
Ürün Özellikleri
- Clamp on + Full Multimeter ranges: measures current up to 400 A AC/DC.
- Jaw size: 26 mm.
- In-rush: fast 30ms Crest-MAX mode to capture in-rush currents.
- Temperature: measures temperature in Celsius up to 537 °C and in Fahrenheit up to 999 °F.
- Transient protection: it protects user in case of lightning strike or switching surge up to 6.5 kV.
- High resolution: 4000 counts enable fast measurements.
- Relative zero mode: relative function for comparing the difference between signals or removing background noise.
- Hold: data hold function freezes the display for later view.
- Safe: CAT IV / 300 V, CAT III / 600 V over-voltage protection.
Teknik Özellikler
| Function | Range | Accuracy |
| DC Voltage | 400.0 mV…600 V | From ±(0.3% of reading + 3 digits) to ±(1.0% of reading + 4 digits) |
AC Voltage (50 Hz ~ 500 Hz) | 4.000 V…600 V | From ±(1.0% of reading + 4 digits) to ±(2.0% of reading + 4 digits) |
| DC Current | 0.0 A…400.0 A | From ±(1.0% of reading + 4 digits) to ±(2.5% of reading + 5 digits) |
AC Current (40 Hz ~ 400 Hz) | 0 A…400 A | From ±(1.0% of reading + 6 digits) to ±(2.5% of reading + 5 digits) |
| Diode Test | Open-circuit voltage < 1.6 V DC, Test current 0.4 mA | |
| Resistance | 400.0 Ω… 40.00 MΩ | From ±(0.8% of reading + 6 digits) to ±(2.0% of reading + 4 digits) |
| Capacitance | 500.0 nF…3000 µF | ±(3.5% of reading + 6 digits) |
| Temperature | -20 °C…537 °C | From ±(2.0% of reading + 3 digits) to ±(3.0% of reading + 3 digits) |
| -4 °F…1000 °F | From ±(2.0% of reading + 6 digits) to ±(3.0% of reading + 6 digits) | |
| Mains frequency | 5 Hz…100kHz | ±(0.5% of reading + 4 digits) |
| Power supply | 2 x 1.5 V batteries, type AAA | |
| Overvoltage category | CAT IV / 300 V, CAT III / 600 V | |
| Dimensions | 188 x 63 x 40 mm | |
| Weight | 218 g | |
Aksesuarlar

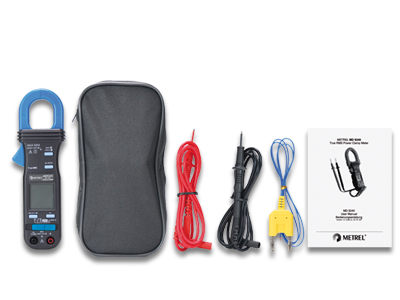

MD 9225 Standard set
- Current clamp MD 9225
- Test lead with probe, 2 pcs
- Thermocouple probe, type K
- Pouch
- 1.5 V battery, type AAA, 2 pcs
- Instruction manual
- Warranty
