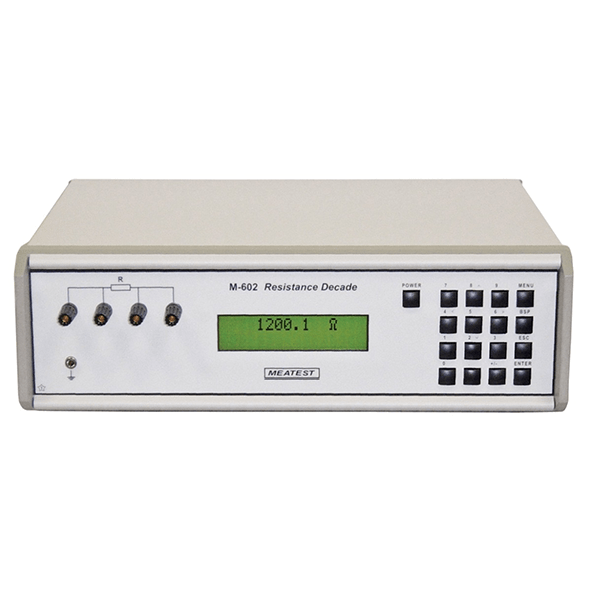

MEATEST M602/ M602A Legacy Real-Resistance Decades

MEATEST M602/ M602A Legacy Real-Resistance Decades

Similar to current M63x and M64x Real-Resistance series, these decades provide high accuracy and resolution over continuous resistance range. As opposed to latest models, user of legacy decades might be missing large dot-matrix LCD display, improved AC characteristics, free/cheaper options, timing function, USB and LAN interfaces, SCPI command support and other minor improvements. On the other hand, legacy decades are a bit more economical and can be battery operated.

Features

• Resistance range from 0.1Ω to 10 MΩ with accuracy 0.02 %
• Temperature coefficient < 25 ppm/°C
• Max. load 2W (120V or 0.6A)
• RTD (Pt, Ni) simulation with accuracy 0.2 °C
• 2, 3, 4 – wire connection
• Power supplying from power line adaptor or from internal battery
• Interface RS – 232 (IEEE488 optionally)
• Table version (19“ module as option)
