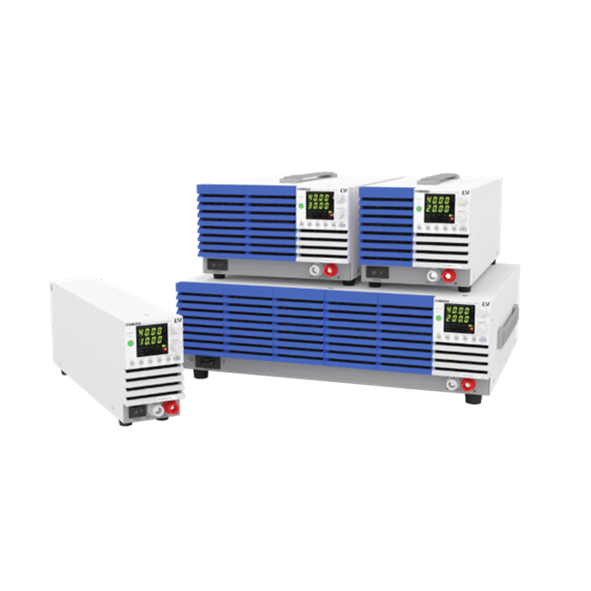

KIKUSUI PWR-01 Series bench-top DC power supply
FİYAT TEKLİFİ İÇİN TIKLAYIN!KIKUSUI PWR-01 Series bench-top DC power supply Sequence function(supports triggered synchronization) LAN(LXI compliant)/USB/RS232C as standard interface A virtual multi-channel bus (VMCB) function makes multi- channel operation more efficient All models are equipped with front-facing output terminals as standard (maximum 10A) Supporting universal input voltage (85V to 265V) Output ON/OFF… Devamı
KIKUSUI PWR-01 Series bench-top DC power supply
- Sequence function(supports triggered synchronization)
- LAN(LXI compliant)/USB/RS232C as standard interface
- A virtual multi-channel bus (VMCB) function makes multi- channel operation more efficient
- All models are equipped with front-facing output terminals as standard (maximum 10A)
- Supporting universal input voltage (85V to 265V)
- Output ON/OFF delay function
Specifications
| Voltage output | Ripple noise | Line regulation | Load regulation | Current (TYP) | ||||||
| Model | CV | CC | Power output | CV | CC | CV | CC | CV | CC | 100 Vac / 200 Vac |
| V | A | W | mVrms | mArms | mV | mA | mV | mA | AC(100 / 200V)A | |
| PWR401L | 0 to 40 | 0 to 40 | 400 | 5 | 80 | ±6 | ±6 | ±6 | ±13 | 5.6 / 2.8 |
| PWR401ML | 0 to 80 | 0 to 20 | 5 | 40 | ±10 | ±4 | ±10 | ±9 | ||
| PWR401MH | 0 to 240 | 0 to 5 | 20 | 12 | ±26 | ±2.5 | ±26 | ±6.0 | ||
| PWR401H | 0 to 650 | 0 to 1.85 | 50 | 6 | ±67 | ±2.2 | ±67 | ±5.4 | ||
| PWR801L | 0 to 40 | 0 to 80 | 800 | 5 | 160 | ±6 | ±10 | ±6 | ±21 | 11.2 / 5.6 |
| PWR801ML | 0 to 80 | 0 to 40 | 5 | 80 | ±10 | ±6 | ±10 | ±13 | ||
| PWR801MH | 0 to 240 | 0 to 10 | 20 | 24 | ±26 | ±3 | ±26 | ±7.0 | ||
| PWR801H | 0 to 650 | 0 to 3.70 | 50 | 12 | ±67 | ±2.4 | ±67 | ±5.7 | ||
| PWR1201L | 0 to 40 | 0 to 120 | 1200 | 5 | 240 | ±6 | ±14 | ±6 | ±29 | 16.8 / 8.4 |
| PWR1201ML | 0 to 80 | 0 to 60 | 5 | 120 | ±10 | ±8 | ±10 | ±17 | ||
| PWR1201MH | 0 to 240 | 0 to 15 | 20 | 36 | ±26 | ±3.5 | ±26 | ±8.0 | ||
| PWR1201H | 0 to 650 | 0 to 5.55 | 50 | 18 | ±67 | ±2.6 | ±67 | ±6.1 | ||
| PWR2001L | 0 to 40 | 0 to 200 | 2000 | 5 | 400 | ±6 | ±22 | ±6 | ±45 | 28.0 / 14.0 |
Features
Sequence function
The sequence function allows you to automatically execute programs that you have set in advance, one operation at a time. However, you cannot create sequences using only the panel. Sequence programs are created using commands from a PC.Once a sequence is executed via remote control, the program is saved onto the PWR-01’s internal memory and then can be executed directly from the front panel without a PC.
Standard communication interface
The series has been equipped with LAN (LXI), USB, and RS232C as standard interfaces, essential for system integration. When using RS232C, please order the D-sub 9P-RJ45 transformation cable (RD-8P/9P) option, sold seperately. The PWR-01 has also been equipped with J1/J2 connectors for analog control.
Safe and easy to use front-facing output terminals
All models are equipped with front-facing output terminals (up to 10 A) optimized for bench-top use. Please connect to the output terminals with a safety plug. *This product’s specifications were recorded using the back-side output terminals.
Synchronized operation
Synchronized operation allows for settings and sequence programs to be synchronized via trigger signals. Different PWR-01 models (e.g., 400 W model and 800 W model) can be easily mixed and matched with no difficulties. Synchronized operation is also possible in parallel operation. In order to successfully synchronize your power supplies, please configure various settings using remote control commands. After completing configuration, synchronized operation can be performed without a PC.
External analog control function
The PWR-01 series is equipped with external voltage/resistance control, which is necessary for external analog control and monitoring applications for power supply testing. The input external signal and the output status signal can be accessed through the J1/J2 connectors on the rear panel. When using the J1/J2, please purchase the J1/J2 connector plug kit (OP01-PWR-01) option, sold separately.
Controlling the output voltage & output current.
Control using an external voltage.
It is possible to control the output voltage/output current of the PWR-01 series by using an external voltage.
Control using an external resistance.
It is possible to control the output voltage/output current of the PWR-01 series by using an external variable resistor.
Turning output on and off using an external contact.
It is possible to turn the output ON/OFF of the PWR-01 series by using an external contact.
Output shutdown control using an external contact.
It is possible to turn the output OFF of the PWR-01 series by using an external contact.
Clearing alarms using an external contact.
It is possible to clear the alarm of the PWR-01 series by using an external contact.
Monitoring operation modes.
External monitoring of the output voltage and output current.
3 to 4 times ratio power operation
3 to 4 times ratio power operating range covers a wide variety of voltage and current setting combinations.For example, the 1200 W rated power output PWR1201ML is capable of seamless operation from 80 V/15 A to 20 V/60 A.
Variable internal resistance function
The variable internal resistance function enables you to easily simulate the internal resistance of rechargeable batteries, solar batteries, fuel cells, and the like.By setting the internal resistance value in constant v voltage (CV) mode, you can decrease the output voltage according to the output current. You can use a CONFIG setting to set the internal resistance.
