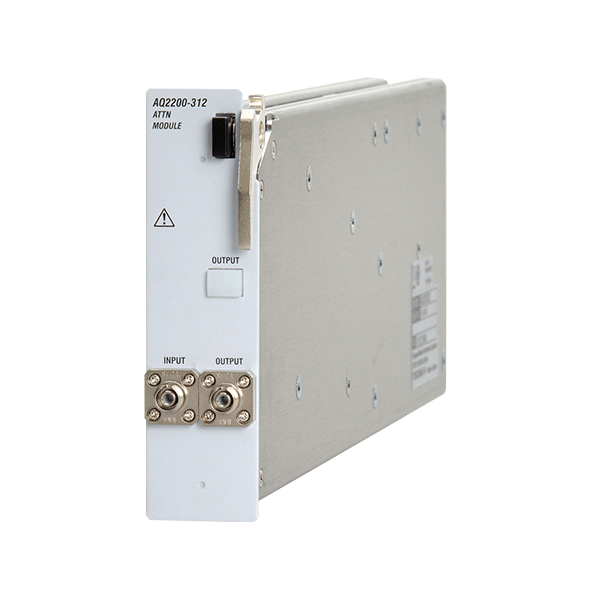

YOKOGAWA AQ2200-312 Optical Attenuator Module

Teklif İsteyinYOKOGAWA AQ2200-312 Optical Attenuator Module için uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!

The AQ2200-312 is a variable optical attenuator type for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.

  • Wide attenuation range:
    • 0 to 60 dB (SM version)
    • 0 to 45 dB (MM version)
  • Wide wavelength range:
    • 1200 to 1700 nm(SM version)
    • 800 to 1370 nm (MM version)
  • Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
  • Low insertion loss: 1.0 dB (typical)
  • Low polarization dependence loss: 0.1 dBp-p or less
  • Monitor output (optional)
  • Configure the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments
    JAPON MALI



FEATURES The AQ2200-312 ATTN module is a variable optical attenuator capable of adjusting optical output with high precision over the wavelength range of 1200 nm to 1700 nm (SM version). The ATTN module’s output can be varied in steps of 0.001 dB over a wide attenuation range of 0 to… Devamı

Kategoriler: Etiketler:
Açıklama

FEATURES

The AQ2200-312 ATTN module is a variable optical attenuator capable of adjusting optical output with high precision over the wavelength range of 1200 nm to 1700 nm (SM version). The ATTN module’s output can be varied in steps of 0.001 dB over a wide attenuation range of 0 to 60 dB (SM version). In addition, this attenuator provides the low insertion loss, low polarization dependence, and high return loss needed in a variable optical attenuator for optical system test. With the optional monitor output connected to a sensor module, it is possible to create programs to precisely control the optical output power.
Multi-mode version is also available.

Ürün Özellikleri

Ürün Özellikleri

Teknik Özellikler

Teknik Özellikler

Aksesuarlar

Aksesuarlar

YOKOGAWA Hakkında
Japonya merkezli küresel bir teknoloji lideri olan Yokogawa, endüstriyel tesisler için gelişmiş proses otomasyonu ve kontrol sistemleri sağlamanın yanı sıra, Ar-Ge ve üretim süreçleri için yüksek hassasiyetli güç analizörleri, osiloskoplar ve veri toplama sistemleri gibi test ve ölçüm ekipmanları üreten bir markadır.
