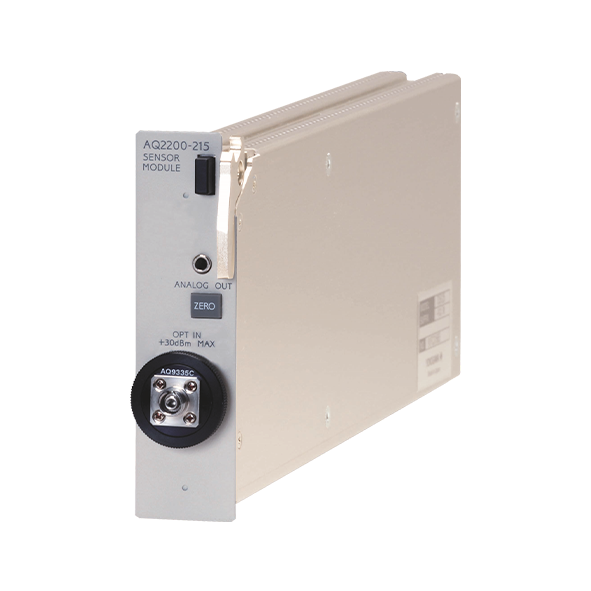

YOKOGAWA AQ2200-215 Sensor module (high Power up to +30dBm, 970 to 1660 nm) - Görsel 1
Resmi büyüt
YOKOGAWA

YOKOGAWA AQ2200-215 Sensor module (high Power up to +30dBm, 970 to 1660 nm)

Teklif İsteyin

YOKOGAWA AQ2200-215 Sensor module (high Power up to +30dBm, 970 to 1660 nm) hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!

The AQ2200-215 is an optical power meter designed specifically to measure high optical power up to +30dBm. It features high speed sampling and advanced data processing functions. The AQ2200-215 is an ideal measurement tool for optical output power measurement and margin test of WDM transmission equipment, as well as gain measurements of optical fiber amplifiers. It is commonly used in conjunction with other AQ2200 Series modules and the AQ6370C Optical Spectrum Analyzer to offer a flexible customized optical measurement system.
JAPON MALI

Specifications   Detector Wavelength Range Power Range AQ2200-215 InGaAs 970 to 1660 nm -70 to +30 dBm High Power Measurement: +30dBm High-Speed Sampling: 10,000 points per second Various Optical Connectors: FC/SC/MU/LC Fully Configurable: Create the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments   Devamı

Kategoriler: Etiketler:
Açıklama
  Detector Wavelength Range Power Range
AQ2200-215 InGaAs 970 to 1660 nm -70 to +30 dBm
  • High Power Measurement: +30dBm
  • High-Speed Sampling: 10,000 points per second
  • Various Optical Connectors: FC/SC/MU/LC
  • Fully Configurable: Create the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments



Ürün Özellikleri

Ürün Özellikleri

Teknik Özellikler

Teknik Özellikler

Aksesuarlar

Aksesuarlar

YOKOGAWA Hakkında
Japonya merkezli küresel bir teknoloji lideri olan Yokogawa, endüstriyel tesisler için gelişmiş proses otomasyonu ve kontrol sistemleri sağlamanın yanı sıra, Ar-Ge ve üretim süreçleri için yüksek hassasiyetli güç analizörleri, osiloskoplar ve veri toplama sistemleri gibi test ve ölçüm ekipmanları üreten bir markadır.
