ZERA MT400 THREE PHASE CURRENT SOURCE

Teklif İsteyin

THREE PHASE CURRENT SOURCE

MT400_DATA SHEET

While testing of metering installations on-site you can meet the problem, that you can not make a proper testing because of insufficient load conditions. The three phase MT400 system is a lightweight and portable current source based on newest technology and serves for solving this problem by simulating the required… Devamı

Kategoriler: Sayaç Test Cihazları, Taşınabilir Sayaç Test Cihazları (etalon) Etiketler: 3 fazlı Akım Kaynagı
Paylaş
Facebook Twitter Pinterest linkedin WhatsApp WhatsApp
  • Açıklama
  • Ürün Özellikleri
  • Teknik Özellikler
  • Aksesuarlar
Açıklama

OLYMPUS DIGITAL CAMERA

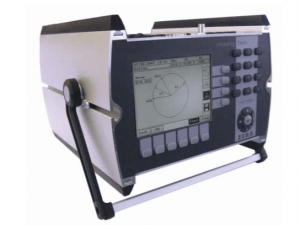

While testing of metering installations on-site you can meet the problem, that you can not make a proper testing because of insufficient load conditions. The three phase MT400 system is a lightweight and portable current source based on newest technology and serves for solving this problem by simulating the required load conditions. The MT400 system is offering a user friendly menu guided operation via built-in soft-keys and a 6.4″ LCD-Display.

Features

  • Individual load point setting
  • Adjustable phase shifting from 0 … 360°
  • Configuration of balanced and unbalanced load points
  • Simulation of load conditions via adjustable currents and angles
Ürün Özellikleri

Ürün Özellikleri

  • Three phase portable current source up to 12 A
  • Mains supply either via available voltage from the grid or via separate mains supply
  • Synchronization of the test currents on the existing test voltage phases of the meter under test
  • All test values are generated synthetically
  • Powerful unit with single phase mains supply
  • Easy user guidance
  • User friendly menu guided operation via built-in soft-keys
  • External control via PC possible
  • Clearly arranged indication of test values via 6.4“ LCD Display
Teknik Özellikler

Teknik Özellikler

GENERAL
Power supply85 … 132 VAC / 170 … 265 VAC, 47… 63 Hz
Current range4 mA … 12 A
Frequency range45 … 65 Hz
Temperature range-15° … +45° C
Rel. humidity (not condensing)max. 95 %
Max. dimensions (HxWxD)220 x 290 x 320 mm
Weightapprox. 8 kg
SOURCE
Current circuit harmonic distortion< 1 %
Current circuit max. output power*max. 15 VA
Current source accuracy0.2 % (> 50 mA)
Angle range for I-output-180° … +180°
*at maximum current and ohmic load
Aksesuarlar

Aksesuarlar

  • Stable trolley transport case with wheels
  • Quick-connecting cable set for current and voltage circuit
