ZERA MT680s Single-phase Test System

Single-phase Test System with Integrated Current Source

Açıklama

OLYMPUS DIGITAL CAMERA

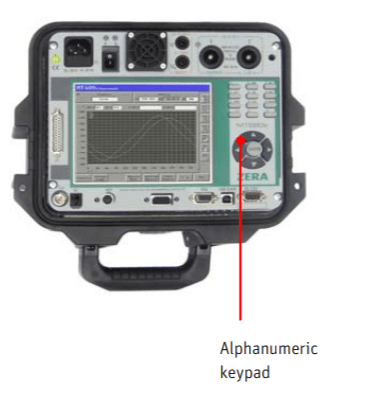

The state of the art test system MT680s consists of a class 0.1 reference meter with built-in current source (up to 120 A). The system is particularly designed for analysis of complete metering installations and local mains conditions. The equipment offers high functionality combined with an excellent menu guided operation via colored 6.5” touch screen or externally via interface.

Features

  • Testing meter installations in two-wire systems
  • Power and energy measurements for active, reactive and apparent power
  • Measuring frequency, phase shift and power factor
  • Harmonic spectrum analysis for voltage and current up to the 40th order
  • Measuring the distortion factor
  • Vector representation of the measuring values
  • Oscilloscope function for curve scanning
  • Energy dosing with built-in current source



Ürün Özellikleri

MT680s-1 MT680s-2
  • Accuracy class 0.1
  • Direct measurement up to 120 A and 500 V
  • Calibration under real load conditions
  • Verification of the energy registration
  • 4 quadrant measurement
  • Harmonic spectrum analysis
  • Wave form analysis

Teknik Özellikler

GENERAL
Power supply85 … 265 V, 47 … 63 Hz
Power consumptionmax. 135 VA
Temperature range, operation-10° … + 50° C
Temperature range, storage-15° … + 65° C
Relative humidity (not condensing)max. 95 %
Dimensions (DxWxH)248 x 300 x 196,2 mm
Weight~ 8.4 kg
SAFETY
IP class according to DIN EN 60529IP30
Declaration of conformityCE conform
Protection class according to DIN EN 61140I
Overvoltage category voltage measurement 16)CAT III 300 V / CAT II 600 V
Overvoltage category current measurementCAT III 300 V / CAT II 600 V
REFERENCE METER
Measuring modes2WA / 2WR / 2WAP
Fundamental frequency45 ... 65 Hz
Bandwidth3000 Hz
Sampling16 bit 504 samples/period
Accuracy class for measuring of power / energy0.1
Angle measurement accuracy 3) 4)< 0.015°
Frequency measurement deviation± 0.01 Hz
Voltage Measurement
Voltage measurement5 mV ... 500 V
Voltage range(s)250 mV, 5 V, 60 V, 125 V, 250 V, 420 V
Voltage measurement accuracy 5)< 0.05 % @ 30 V ... 500 V< 1 % @ 50 mV ... < 30 V< 3 % @ 5 mV ... < 50 mV
Voltage measurement temperature drift 3)< 15 x 10 E-6 / K
Voltage measurement stability 1) 3)< 60 x 10 E-6
Voltage measurement long term stability 2) 3)< 100 x 10 E-6 / Year
Current measurement
Current measurement1 mA ... 120 A
Current range(s)100 A, 50 A, 20 A, 10 A, 5 A, 2 A, 1 A, 500 mA, 200 mA, 100 mA, 50 mA, 20 mA
Current measurement accuracy 5)< 0.05 % @ 10 mA ... 120 A< 0.2 % @ 5 mA ... < 10 mA
Current measurement temperature drift 4)< 20 x 10 E-6 / K
Current measurement stability 1)< 70 x 10 E-6
Current measurement long term stability 2) 4)< 100 x 10 E-6 / Year
Power Measurement
Power/energy measurement accuracy 3) 6)< 0.1 % @ 10 mA ... 120 A < 0.25 % @ 5 mA ... < 10 mA
Power/energy measurement temperature drift 3) 4)< 35 x 10 E-6 / K
Power/energy measurement stability 1) 3) 4)< 100 x 10 E-6
Power/energy measurement long term stability 2) 3) 4)< 200 x 10 E-6 / Year
Source
Current min. max.1 mA … 120 A
Current range(s)100 A, 50 A, 20 A, 10 A, 5 A, 2 A, 1 A, 500 mA, 200 mA, 100 mA, 50 mA, 20 mA
Current max. voltage per range600 mV (100 A .. 20 A), 2.0 V (10 A), 4.0 V (5 A) 8.0 V (2 A .. 20 mA)
Current max. output power 8)60 VA
Current accuracy  4)< 0.1 %
Current distortion 4)< 0.5 %
Frequency range45 … 65 Hz
Phase angle setting range0.00 … 359.99°
Phase angle stability 4) 9)< 0.15 °

  • 1: Stability over 1 hour (every minute one measurement with ti = 60 s)
  • 2: Stability over 1 year (every month one measurement over one hour )
  • 3: From 30 V … 500 V
  • 4: From 10 mA … 120 A
  • 5: Related to the read value at optimum range selection
  • 6: Related of apparent power
  • 7: of range 30 % … 120 %
  • 8: Related of end of maximum range and end of range and ohmic load
  • 9: Stability over 1 hour (measurement with ti = 10 s)
Subjects to alteration.

Aksesuarlar

Temperature Sensor MT3450 (OPTIONAL)

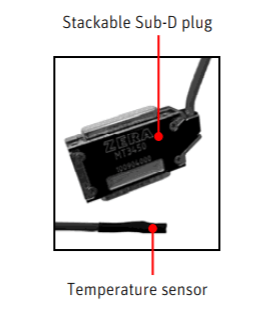

The temperature sensor MT3450 can be used with the devices of the MT-series. It serves for temperature registration on-site. The temperature will be indicated on the MT-display and will be recorded every time data are stored.

SENSOR

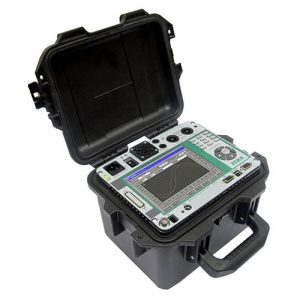

MT680s Suitcase and Meter
