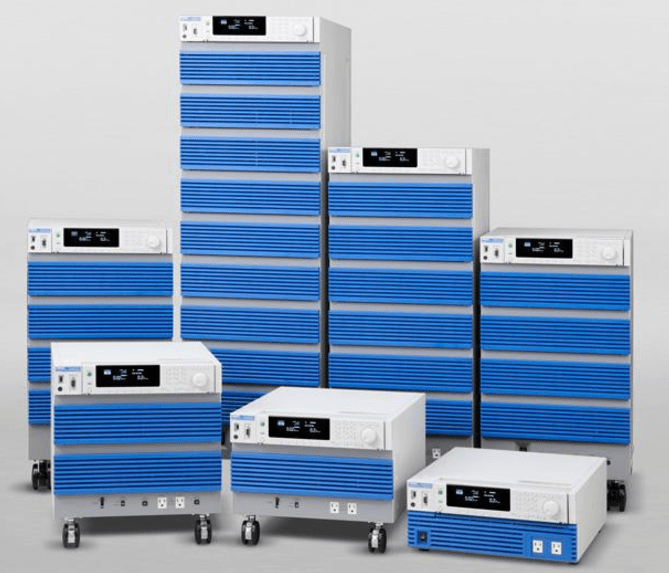

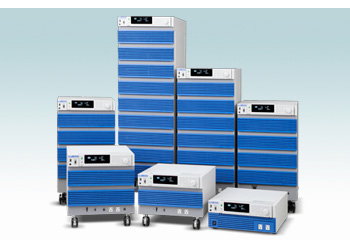

Kikusui PCR-LE Series

The PCR-LE Series is a new line of advanced multi-functional AC power supply that has been developed from our PCR-L/LA Series (linear amplifier type). The PCR-LE Series provides high reliability and can be applied to various applications, by taking advantage of the features that can control broadband waveform freely. Moreover, the PCR-LE Series can be configured as a core device of a test system combined with E-loads and Power Analyzers for “Grid Connection Testing” in regard to dispersed power generation, such as Solar Power, Wind Power, Fuel Cell, and Gas Engine referred to as “New Energy Field”.
With various options, the low frequency immunity test and various power environment tests are supported. The options for parallel operation and three-phase operation enable you to expand a single-phase system up-to 27kVA, single-phase three wires up-to 54kVA, and a three-phase system up to 81kVA. The system can be applied to a large-scale EMC site for testing of industrial high-capacity air conditioners.

• Wide-ranging specs DC output also supported
• Selectable response mode
• Power line abnormality simulation
• Various measuring functions
• Sequence function
• Sensing, Regulation adjustment
• Output current control
• Eco-friendly function (Power-conservation function)

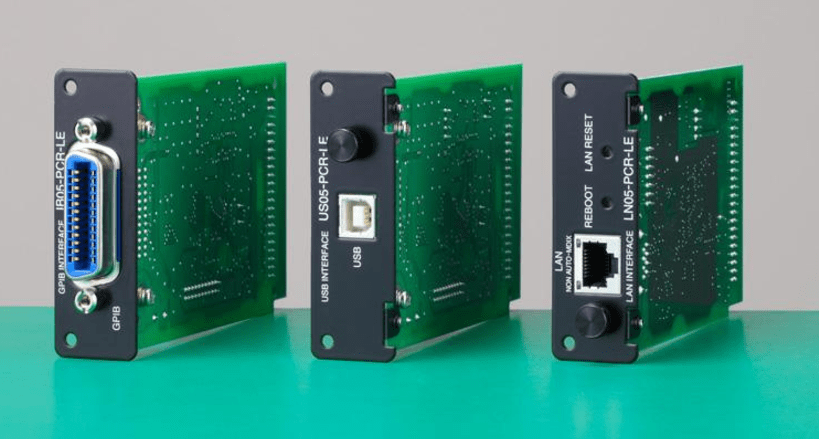

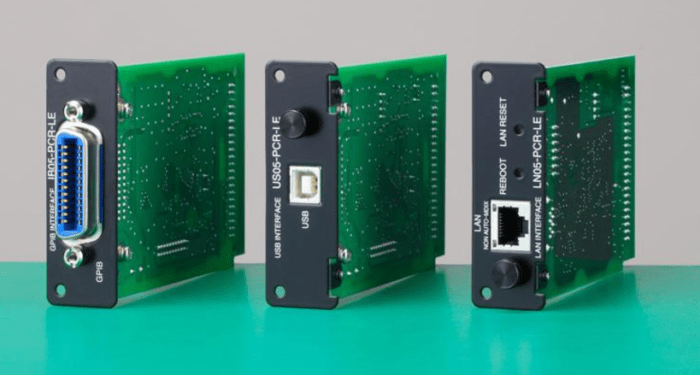

• External communication
• Memory function
• Standard supported

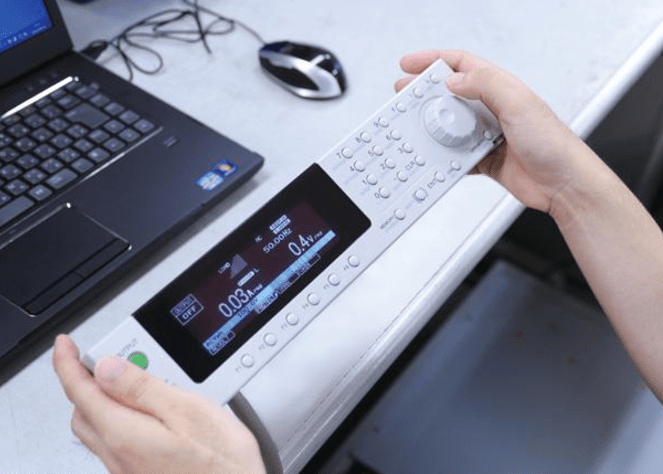

• Front panel serving as a remote control
• Downsizing
• For “system interconnection tests” with reverse load flow
• Specifications for large capacity
• Excellent maintenance ability due to the unit configuration
• Setting output impedance
• Measuring harmonics current
• Soft start (Rise time control)
• Internally fixed Vcc

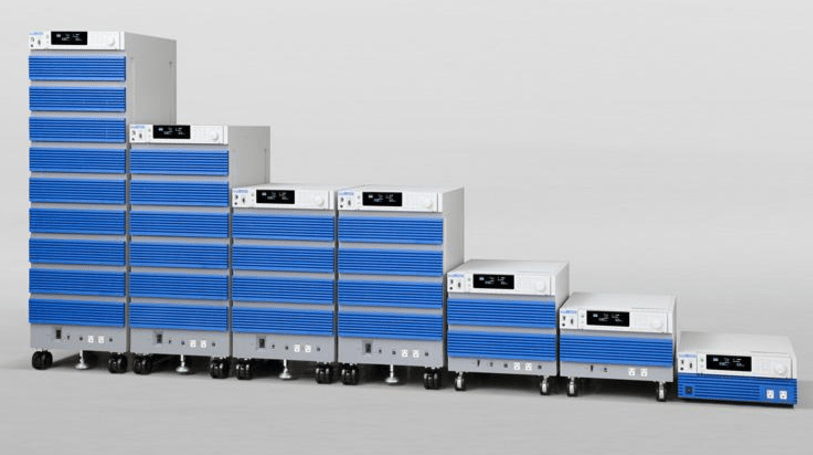

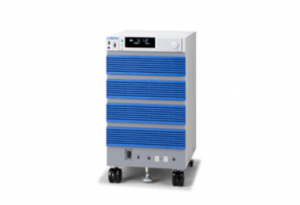

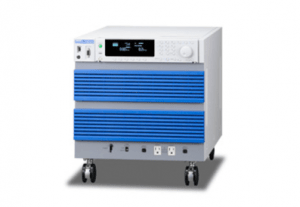

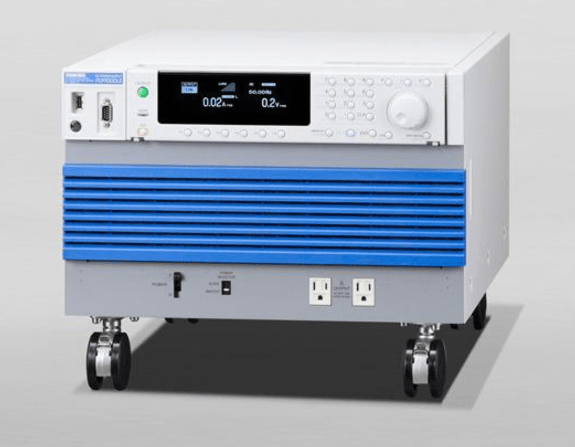

PCR500LE

PCR1000LE

PCR2000LE

PCR3000LE

PCR4000LE

PCR6000LE

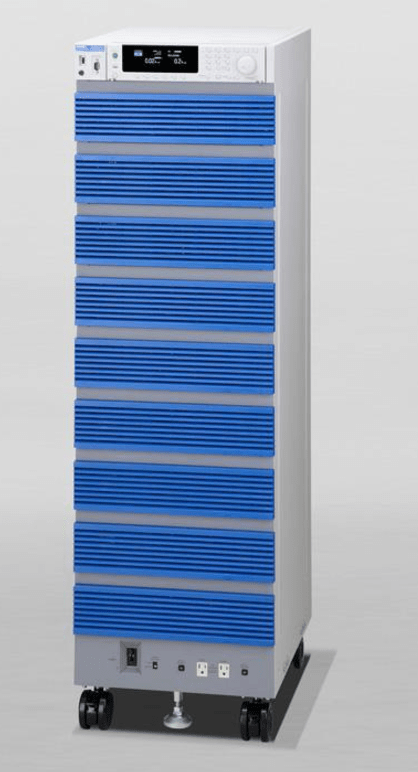

PCR9000LE
