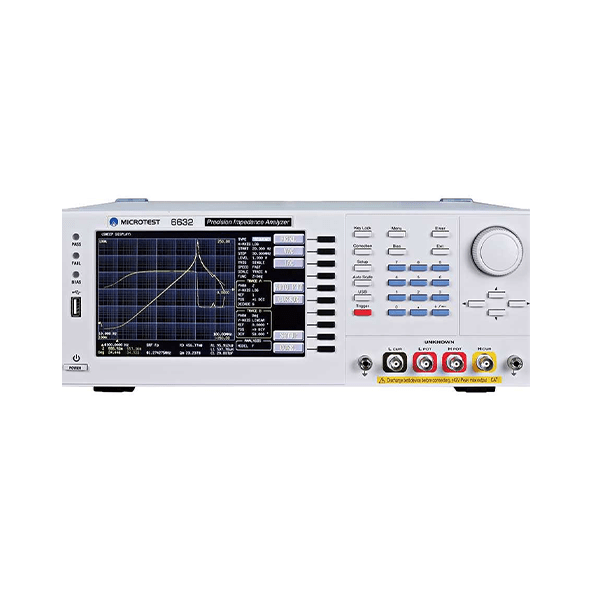

Microtest 6632 Empedance Analyzer Frequency range : DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
FİYAT TEKLİFİ İÇİN TIKLAYIN!Frekans aralığı: DC, 10Hz – 1/3/5/10/20/30MHz/50MHz ±%0,08’e kadar temel doğruluk (tipik ±%0,05) Otomatik Seviye Kontrolü (ALC) Çıkış empedansı 25Ω/100Ω, değiştirilebilir Destek metre modu ve liste modu, süpürme modu Eşdeğer Devre Analizi Dahili DC Bias Gerilimi ±12V Ultra yüksek ölçüm hızı < 3ms Açık devre/kısa devre/yük düzeltme fonksiyonu Karşılaştırıcı işlevi BIN… Devamı
Açıklama
- Frekans aralığı: DC, 10Hz – 1/3/5/10/20/30MHz/50MHz
- ±%0,08’e kadar temel doğruluk (tipik ±%0,05)
- Otomatik Seviye Kontrolü (ALC)
- Çıkış empedansı 25Ω/100Ω, değiştirilebilir
- Destek metre modu ve liste modu, süpürme modu
- Eşdeğer Devre Analizi
- Dahili DC Bias Gerilimi ±12V
- Ultra yüksek ölçüm hızı < 3ms
- Açık devre/kısa devre/yük düzeltme fonksiyonu
- Karşılaştırıcı işlevi
- BIN sınıflandırma işlevi
- Dahili Geçirgenlik-μr
- Dahili Dielektrik sabiti-εr
Specifications
Selection
| Model | 6632-1 | 6632-3 | 6632-5 | 6632-10 | 6632-20 | 6632-30 | 6632-50 |
| Frequency | 10Hz- 1MHz | 10Hz- 3MHz | 10Hz- 5MHz | 10Hz- 10MHz | 10Hz- 20MHz | 10Hz- 30MHz | 10Hz- 50MHz |
| Equivalent Circuit Analysis | 6632-1S | 6632-3S | 6632-5S | 6632-10S | 6632-20S | 6632-30S | 6632-50S |
SPEC
| Model | 6632 | |
| Frequency Range | 10Hz-50MHz | |
| Frequency Setting | Continuity | |
| Frequency Resolution | 100mHz, 6-bit Frequency Input | |
| Frequency Output Accuracy | ±0.01% | |
| Basic Accuracy | ±0.08% (typical ±0.05%) | |
| AC Drive Level | Test Signal Voltage Level | 10mV – 2Vrms(100Ω) 10mV – 1Vrms(25Ω) |
| Voltage Minimum Resolution | 1mV | |
| Accuracy | ALC ON：6％ * Voltage ±2mV ALC OFF：10％ * Voltage ±2mV | |
| Test Signal Current Level | 200µA – 20mArms | |
| Current Minimum Resolution | 10µA | |
| Accuracy | ALC ON：6％ * Current ± 20µA ALC OFF：10％ * Current ± 20µA | |
| DC Drive Level | 1V (fixed) | |
| Output Impedance | 25Ω/100Ω (switchable) | |
| DC Bias Voltage | Built-in ±12V (100Hz-50MHz) | External Voltage Bias (±12V/±40V/±2000V) |
| DC Bias Current | Option DC Bias Current Source (20A/60A/120A/320A) | External Voltage Bias (100mA/1A) |
| Measurement Mode | Meter mode, list mode, sweep mode, and optional equivalent circuit analysis function (S model) | |
| Measurement Parameters | |Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C、 ESR、εr 、μr | |
| Test Time (Fastest) | < 3mS | |
Measurement Parameters
| Parameters | Range |
| |Z| | 0.000 mΩ to 9999.99 MΩ |
| R, X | ± 0.000 mΩ to 9999.99 MΩ |
| |Y| | 0.00000 μS to 999.999 kS |
| G, B | ± 0.00000 μS to 999.999 kS |
| θRAD | ± 0.00000 to 3.14159 |
| θDEG | ± 0.000° to 180.000° |
| Cs, Cp | ± 0.00000 pF to 9999.99 F |
| Ls, Lp | ± 0.00 nH to 9999.99 kH |
| D | 0.00000 to 9999.99 |
| Q | 0.00 to 9999.99 |
| Δ | ± 0.00% to 9999.99% |
| Rdc | 0.00 mΩ to 99.9999 MΩ |
| εr’ εr” | 0 to 100000 |
| μr’ μr” | 0 to 100000 |
System
| Measurement Circuit | Series/Parallel |
| Correction | Open Circuit/Short Circuit/Load correction |
| Cable Compensation | 0 / 0.5 / 1 /2 (m) |
| BIN | ABS、ΔABS、Δ%、OFF |
| Comparator | 9 |
| List Mode | 50 groups of Multi-steps setting (Each group contains up to 15 steps) |
| Bulit-in Storge | 100 sets LCR setting documents, 50 groups of list mode setting |
| USB Host Storge | LCR setting documents, list mode setting document, BMP graphics, Sweep screen and test result data |
| Trigger Test | Auto, manual, RS-232, GPIB, Handler |
| Power Supply | Voltage：90-264Vac |
| Frequency：47-63Hz | |
| Power consumption | 30VA |
| Environment | Temperature：10℃-40℃ |
| Humidity：20-90%RH | |
| Dimension | 336x147x340 mm (W*H*D) |
| Weight | 3.95 Kg |
| Interface | RS-232、Handler、LAN、USB Host、USB Device |
| Display | Color Screen, 7″ TFT (800*480) |
