LCR Pro1 Plus

An ideal device with excellent sensitivity; ultra low noise design and 100kHz testing frequency.

Açıklama

LCR Pro1 Plus are the best LCR tweezers we have ever made. It has all the great features that come with the LCR Pro1, plus an additional LED testing function and excellent sensitivity to measure very small inductance down to just a couple of nHs thanks to the ultra low noise design and 100kHz testing frequency.

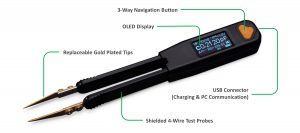

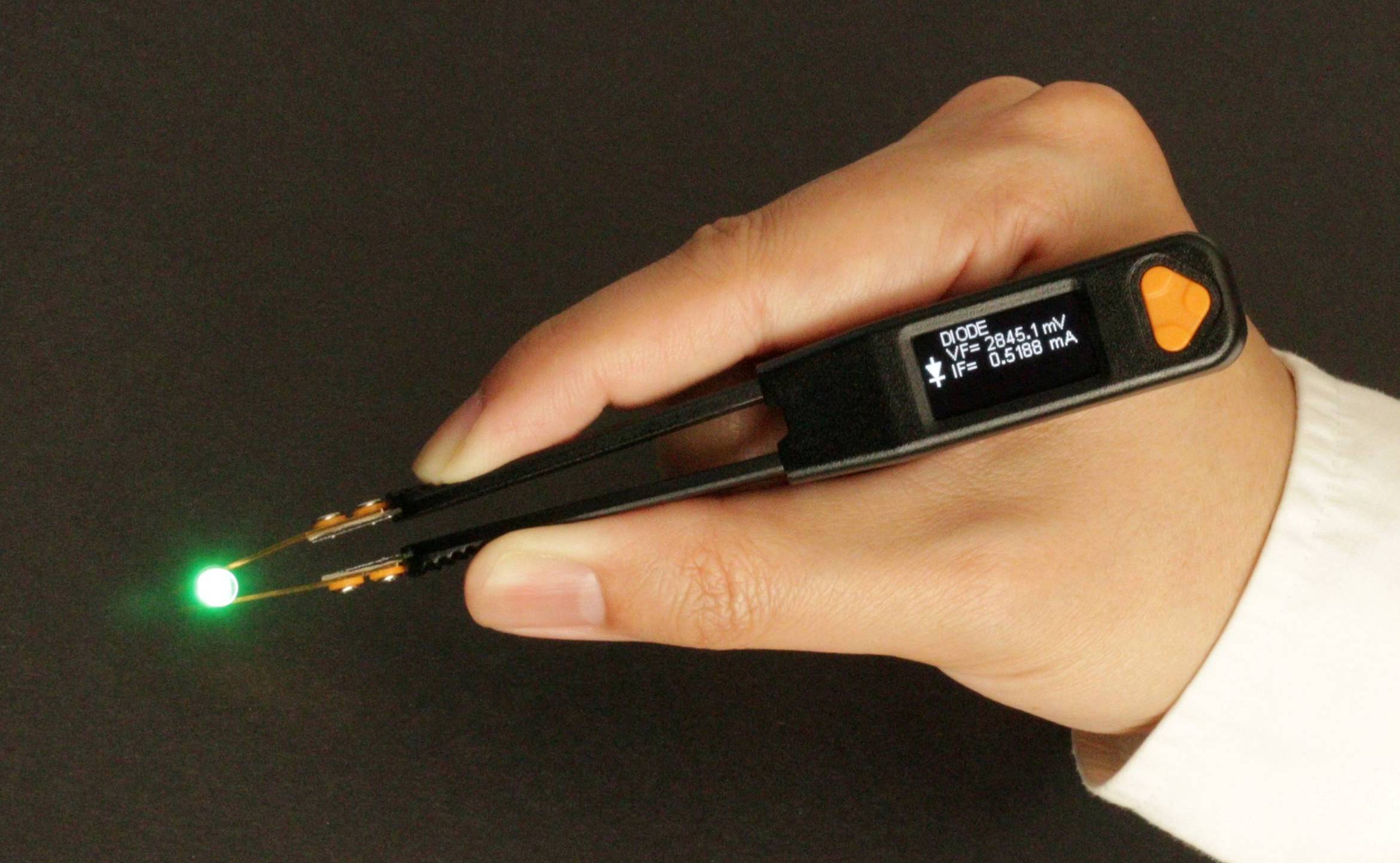

In LED testing, LCR Pro1 Plus lights up the LED and displays its electrical parameters, such as polarity, forward voltage and forward current. When testing bi-directional LEDs, the electrical parameters will be displayed in each direction.

Key Features

  • Automatic LED testing – display polarity, voltage and current
  • Wide measurement range – R: 20mΩ to 10MΩ, C: 0.2pF to 10mF, L: 1nH to 1H
  • Easy operation – one hand use, full set of shortcuts
  • Fully auto/manual selection
  • High accuracy – R: 0.1%, L: 0.2%, C: 0.2%
  • 5 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
  • 3 test voltages – 0.2Vrms, 0.5Vrms, 1.0Vrms
  • Multiple functions – R, L, C, Z, ESR, DCR, D, Q, θ, etc.
  • Small size – 151 x 19 x 15mm
  • Large OLED display – 0.96″, 128 x 64 resolution
  • Ultra precise gold plated tips
  • Rechargeable LiPO battery with USB charging
  • PC remote control for data logging and programming
  • Additional functions – sorting, recording, diode and continuity

Ürün Özellikleri

A Breakthrough in Accuracy

LCR Pro1 delivers high accuracy once found only in high-end desktop LCR meters. It provides basic accuracy 0.1% for resistance and 0.2% for capacitance and inductance with 5-digit resolution. Each device is fully calibrated during production and shipped with NIST (National Institute of Standards and Technology) traceable calibration certificate.

The test frequencies can be selected from 100Hz to 100kHz. 100kHz is ideal for measuring small inductance under 1uH. The test voltage can be selected from 0.2Vrms to 1.0Vrms. 1.0Vrms allows precision measurements of ceramic capacitors with high dielectric constant (K), such as  X5R type. 0.2Vrms is specially designed for in-circuit debugging because it is low enough to prevent the silicon chips from being active during measurement.

Ultra-Precise Tips

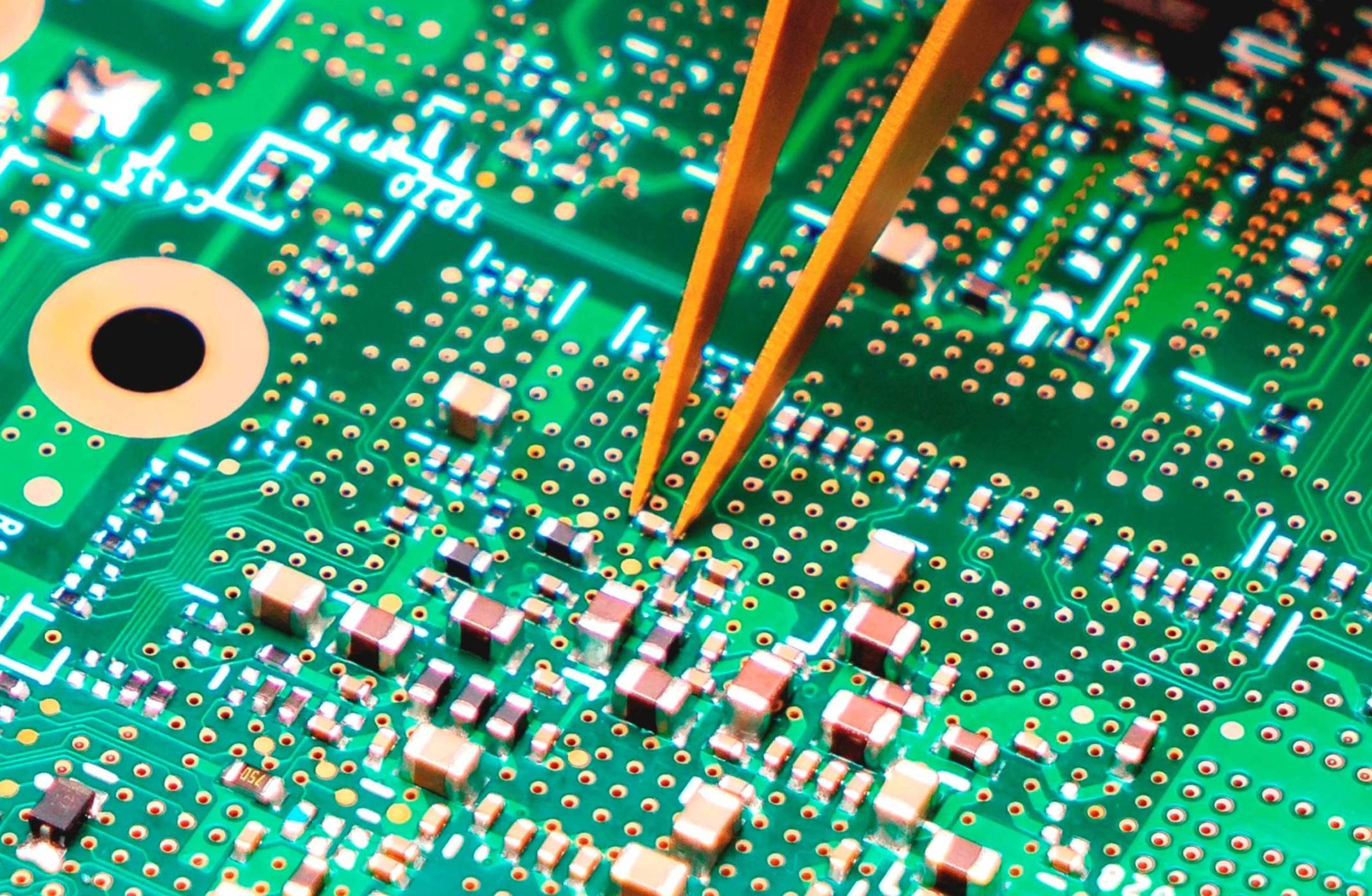

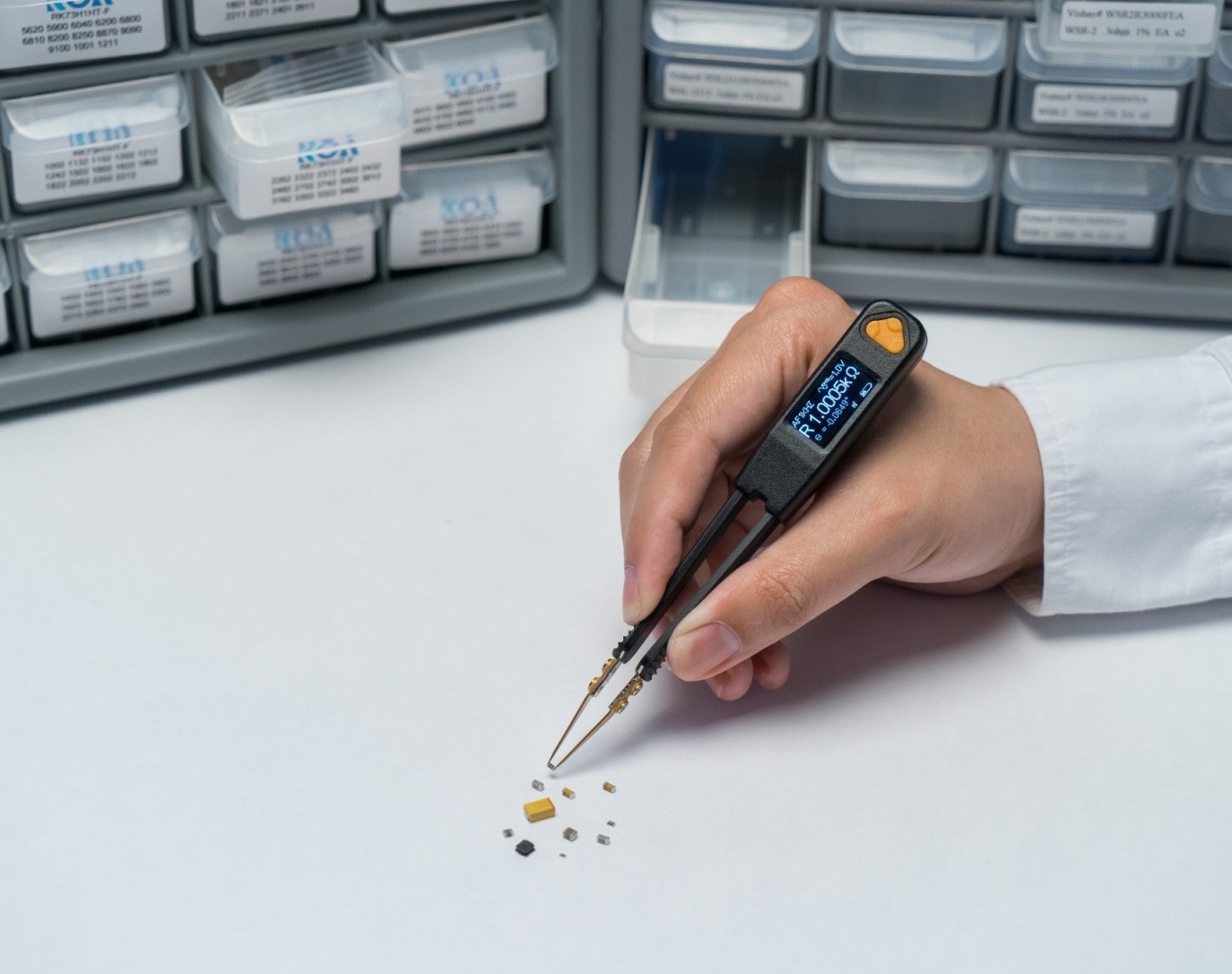

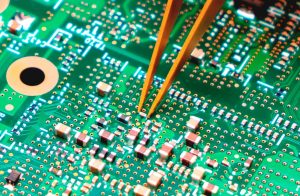

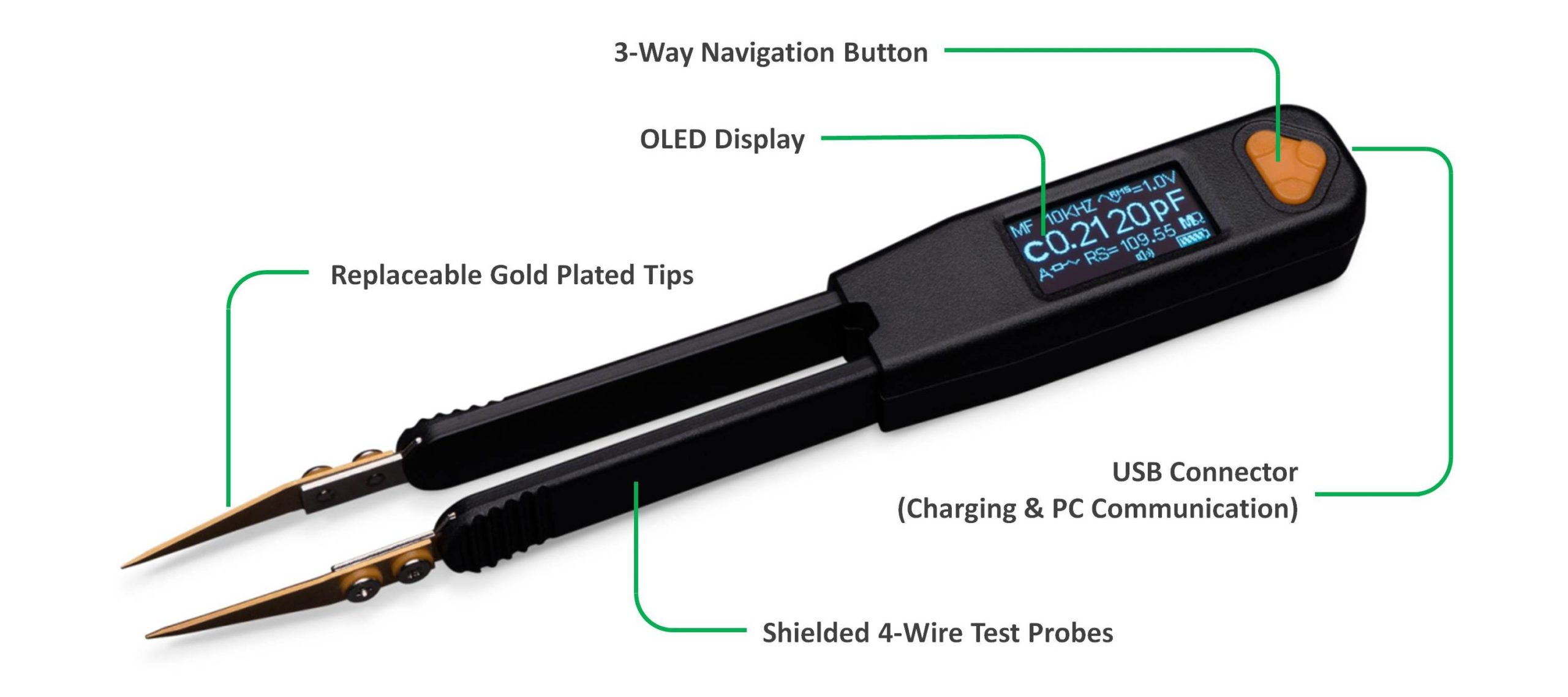

The redesigned gold-plated tips are more precise than ever. You can use them to pick up and measure SMD components quickly and reliably, even for parts down to sizes of 01005. Thanks to the precise tips, you can easily reach the component under test without touching the adjacent components during in-circuit troubleshooting even in a very crowded area.

High Definition User Interface

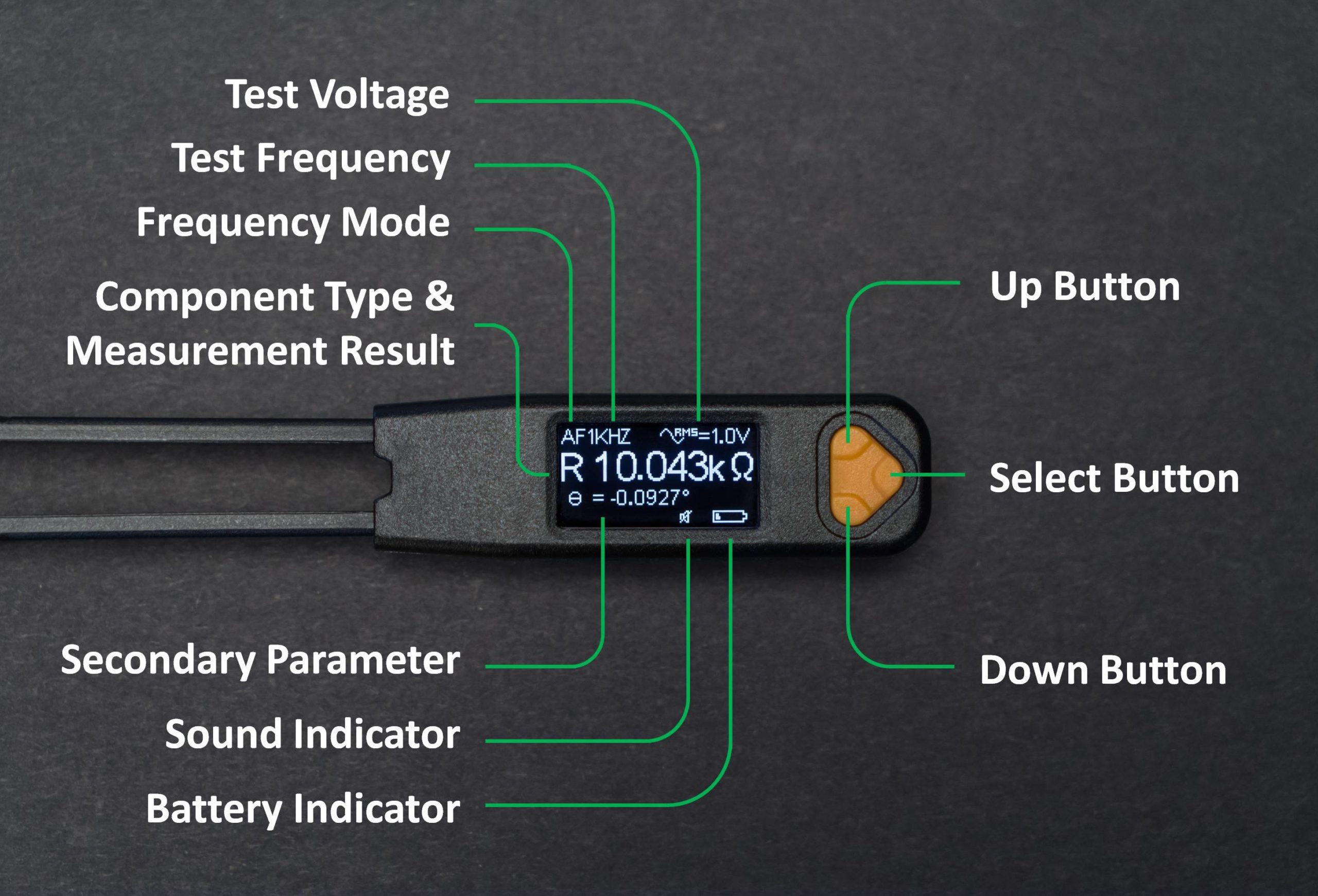

LCR Pro1 comes with a 0.96″ OLED display, doubling the size of its predecessor’s 0.91″ display. The pixels are doubled as well from 128*32 to 128*64. Larger font and more information can be displayed for you to read the results and navigate the menu more conveniently.

LCR Pro1 is full of handy shortcuts to help you switch all kinds of parameters faster and easier. During measurements, you can quickly select different settings by single clicking, double clicking or holding the navigation button.

PC Communication

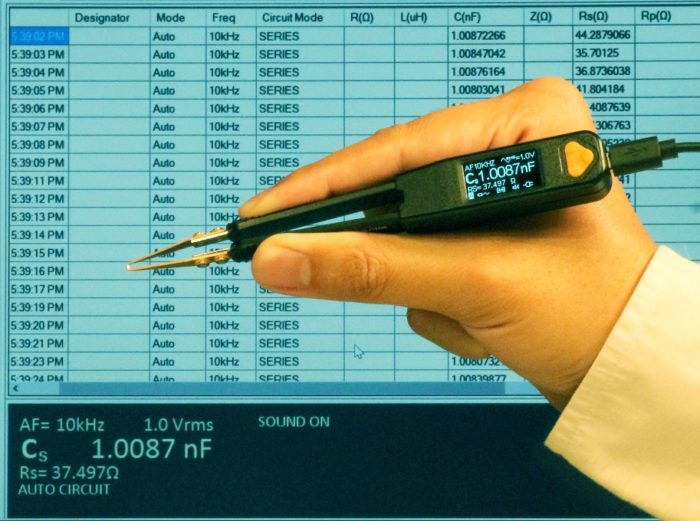

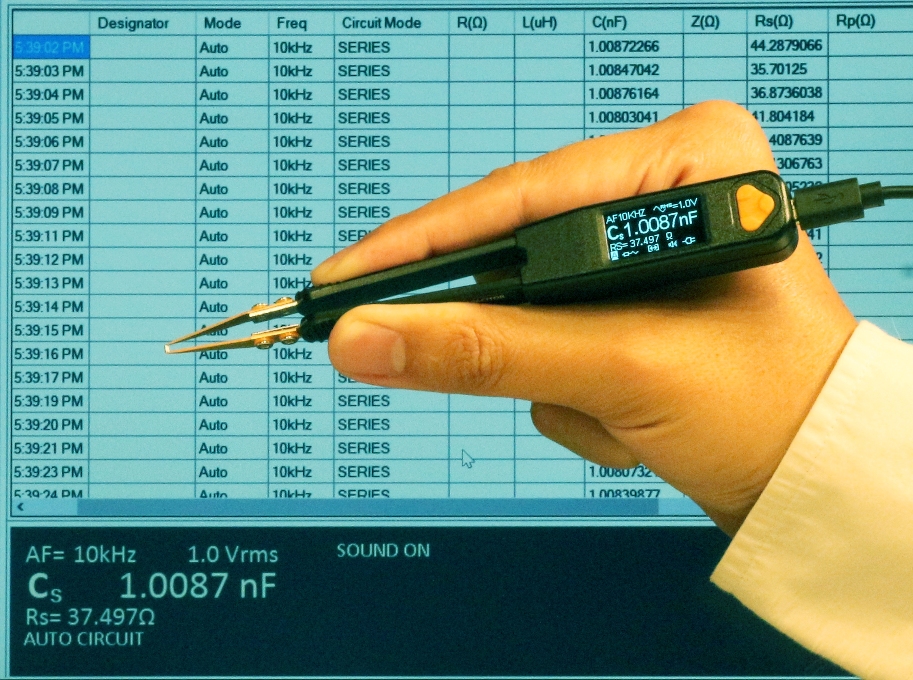

LCR Pro1 is able to make measurements and charge its battery simultaneously when it connects to a PC via the Link1, a USB dongle style communication module. Using the LCR Data Logger software, you can remote control the device from a PC for parameter setup, programming and data logging.

Teknik Özellikler

Test Signal Specification
Test Frequency100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Test Voltage0.2Vrms/0.5Vrms/1.0Vrms
Source Impedance100Ω
Measurement Range
Resistance20mΩ to 10MΩ
Capacitance0.2pF to 10mF
Inductance1nH to 1H
Basic Accuracy
Resistance0.1%
Capacitance0.2%
Inductance0.2%
Product Characteristics
Dimensions (L x W x H)151 x 19 x 15mm
Weight30g
Battery LifeAll day in typical use, one year in standby
Charging Time2.5 hours (typical)

Aksesuarlar

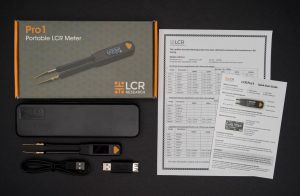

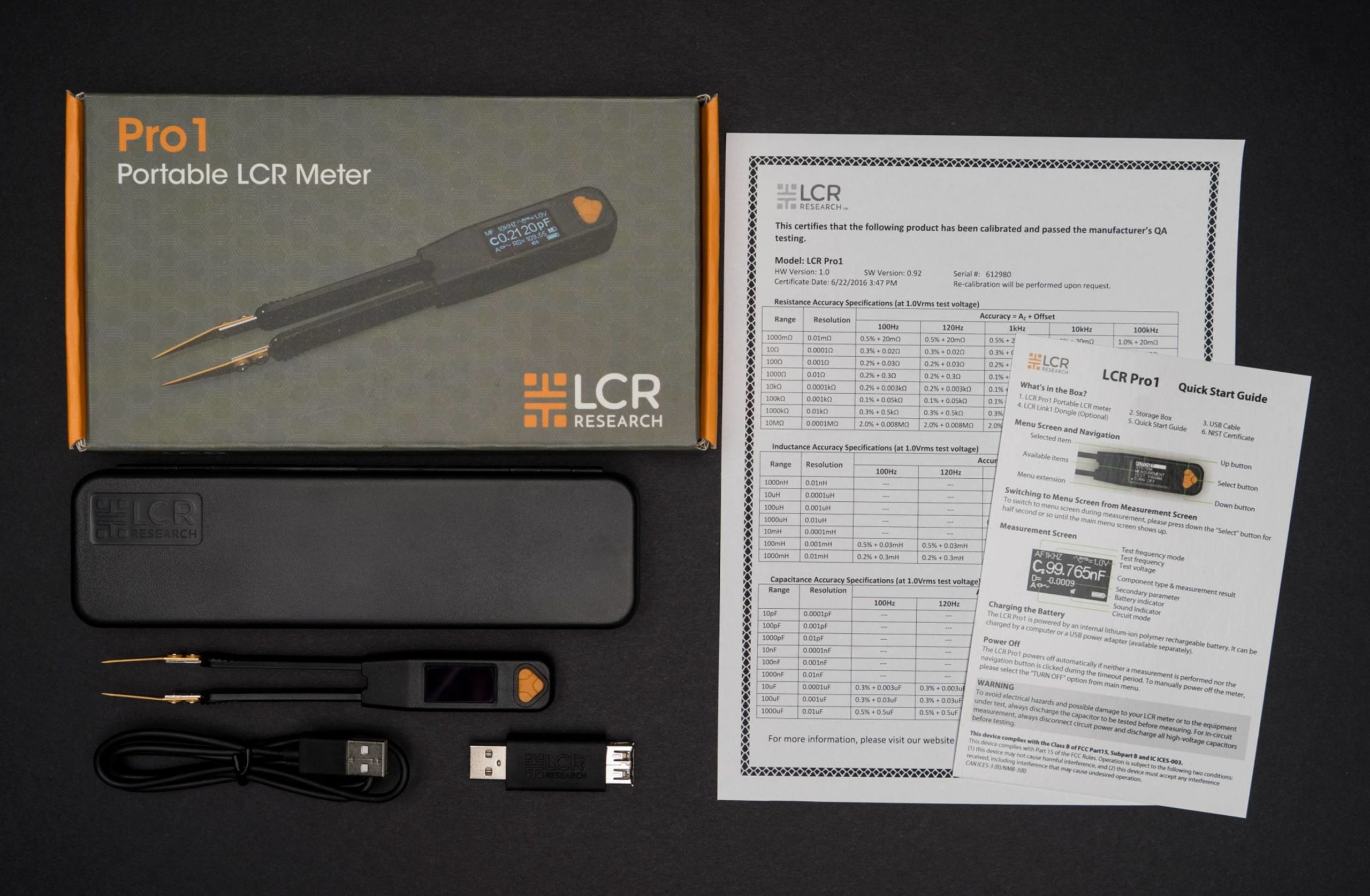

SCOPE OF SUPPLY

  • LCR Pro1 Portable LCR Meter
  • Storage Box
  • Quick Start Guide
  • NIST Certificate
  • USB Cable
  • LCR Link1 (Optional)
