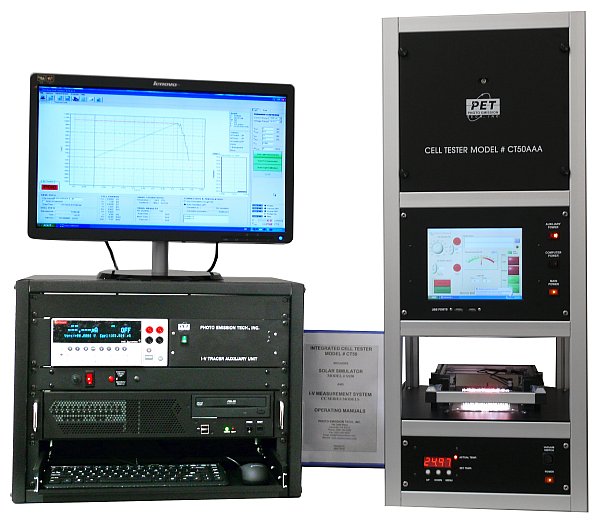

PET CT30AAA CELL TESTER

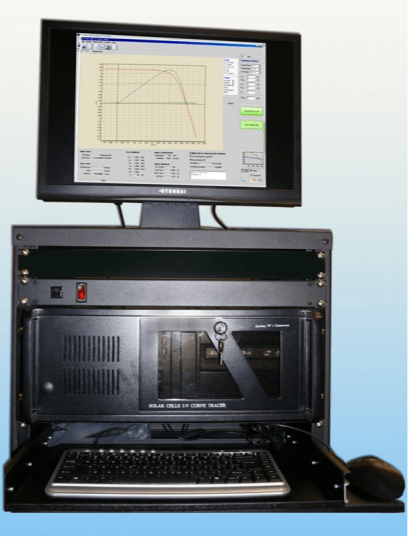

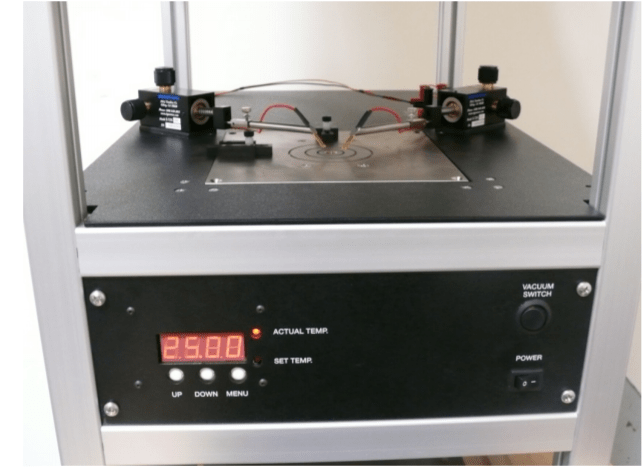

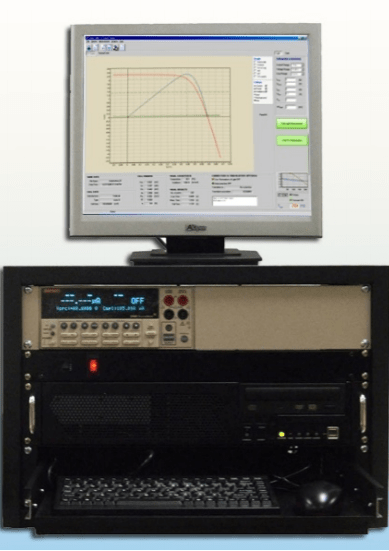

The Solar Cell I-V Curve Data Acquisition System characterizes the current-voltage (I-V) characteristics of photovoltaic devices with currents up to 20.0 amperes. It calculates the solar cell parameters, generates printable test reports and saves test data in text files. Curves are measured using classic four probes (Kelvin) technique. The system includes electronics, software, rack-mount computer, chuck and cell testing fixture with irradiance monitoring and optional temperature control. It interfaces with the customers’ Solar Simulator or a Solar Simulator can be supplied.

SS30AAA-TP TOUCH PANEL SYSTEM FEATURES

• Light intensity feedback for stable output intensity
• Computer based Controller
• Manual / automatic shutter control
• External lamp alignment with lamp on
• Manual/Automatic/External/ Remote shutter control
• Forced air cooling
• Lamp life display
• Selectable and adjustable constant intensity or constant lamp current
• Safety Interlock override warning
• Shutter Status Indicator
• Lamp status indicator
• Remote Trouble Shooting via Internet
• Two (2) year factory warranty

SS30AAA-EM ELECTRO-MECHANICAL SYSTEM FEATURES

• Light intensity feedback for stable output intensity
• Electro-Mechanical Controller
• Lamp life display
• External lamp alignment with lamp on
• Manual/Automatic/External/ Remote shutter control
• Forced air cooling
• Lamp Life Meter
• Lamp Current Meter
• Selectable and adjustable constant intensity or constant power mode
• Safety Interlock override LED
• Over Temperature Warning LED
• Shutter Status Indicator
• Lamp status indicator
• Two (2) year factory warranty
