KIKUSUI TOS9301 Hipot ELECTRICAL SAFETY TESTER
FİYAT TEKLİFİ İÇİN TIKLAYIN!KIKUSUI TOS9301 Max. output-voltage of AC hipot testing : 5kV/100mA (500VA) Max. output-voltage of DC hipot testing : 5kV/20mA, 7.2kV/13.9mA(100W) Measurement range of insulation resistance testing : 0.001MΩ to 100.0GΩ(DC-25V to -1000V/DC+50V to +7200V) Electrical breakdown inspection setting available LAN/USB/RS232C standard digital interface Easy to read LCD display for real… Devamı

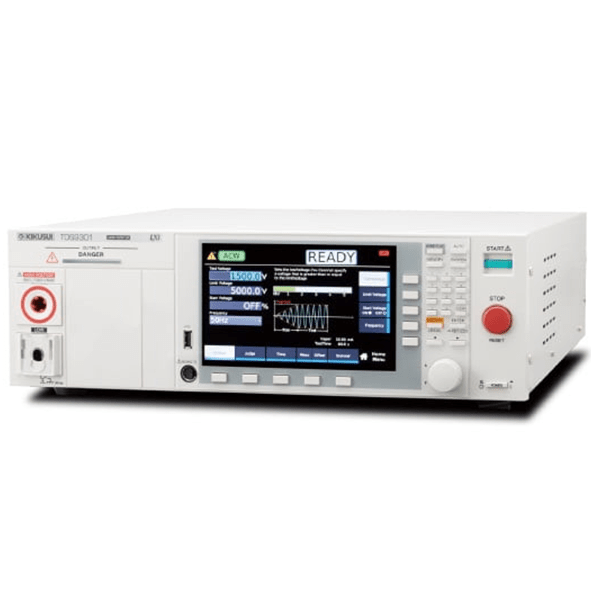

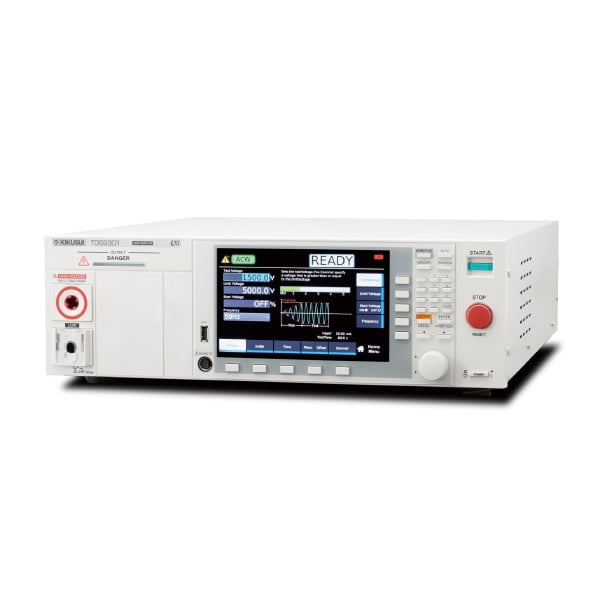

KIKUSUI TOS9301
- Max. output-voltage of AC hipot testing : 5kV/100mA (500VA)
- Max. output-voltage of DC hipot testing : 5kV/20mA, 7.2kV/13.9mA(100W)
- Measurement range of insulation resistance testing : 0.001MΩ to 100.0GΩ(DC-25V to -1000V/DC+50V to +7200V)
- Electrical breakdown inspection setting available
- LAN/USB/RS232C standard digital interface
- Easy to read LCD display for real time monitoring during tests.
All measurement values and standard outlines displayed in each test
ÖZELLİKLER

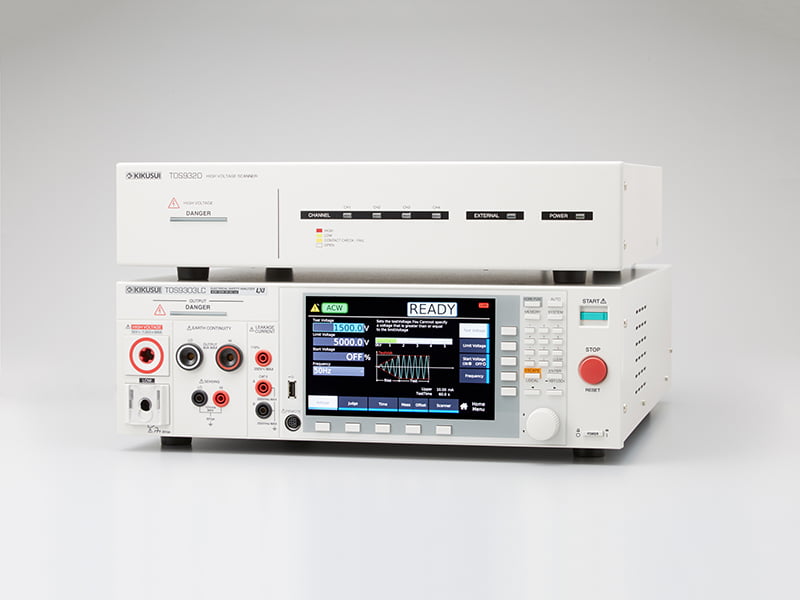

The TOS9300 series is a high performance electrical safety analyzer that complies to a wide range of universal standards. Hipot, Insulation Resistance, Ground Bond, Leakage Current (touch current and protective conductor current) and partial discharge can all be tested. A total of 6 models are available for standard compliance tests in a wide variety of applications including R&D, quality assurance manufacturing lines and laboratory tests.
| Model | Test items | |||||
| AC Withstanding Voltage (AC Hipot) | DC Withstanding Voltage (DC Hipot) | Insulation Resistance | Earth Continuity (Ground Bond) | Leakage Current | Partial Discharge | |
| TOS9300 | ● | ● | ||||
| TOS9301 | ● | ● | ● | |||
| TOS9301PD | ● | ● | ● | ● | ||
| TOS9302 | ● | ● | ||||
| TOS9303 | ● | ● | ● | ● | ||
| TOS9303LC | ● | ● | ● | ● | ● | |
