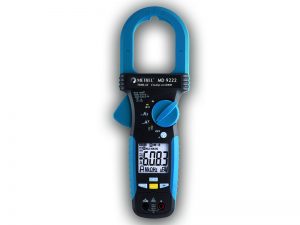

METREL MD 9222 CURRENT CLAMP
METREL MD 9222 CURRENT CLAMP hakkında uzman ekibimizden bilgi almak ve fiyatlar için hemen iletişime geçin!
TRMS AC Current Clamp Meter
The MD 9222 is a professional TRMS AC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A. It has the ability to measure capacitance and frequency and is equipped with a built-in VFD feature that makes the instrument capable of measuring… Devamı
The MD 9222 is a professional TRMS AC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A. It has the ability to measure capacitance and frequency and is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency. The MD 9222 has a wide range of extra features, including data and MAX hold functions, auto power off, auto-ranging and a relative zero function. It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case.
MEASURING FUNCTIONS
- DC and TRMS AC voltage up to 1000 V;
- TRMS AC current measurement up to 1000 A;
- Resistance measurement;
- Acoustic continuity test;
- Diode test;
- Frequency measurement;
- Capacitance measurement.
APPLICATION
- System maintenance;
- Power system checking;
- High level industrial testing;
- High level electrical testing.
Ürün Özellikleri
- Auto-ranging.
- LCD display with backlight, 3-5/6 digit, 6000 count.
- Automatic, non-contact detection of electromagnetic fields to locate and trace live conductors.
- Data hold function.
- MIN/MAX/AVG function.
- Relative zero.
- 51 mm jaw opening.
- CAT IV / 600 V, CAT III / 1000 V overvoltage categories.
Teknik Özellikler
| Fonksiyon | Ölçüm aralığı | Doğruluk |
| DC Gerilim | 600,0 V … 1000,0 V | ±(0.8% of reading + 5 digits) |
AC Gerilim (50 Hz ... 400 Hz) | 600,0 V ... 1000,0 V | ±(0.8% of reading + 5 digits) --±(10% of reading + 5 digits) |
| CREST (Tepe-Tut) | Accuracy: Add 250 digits to specified accuracy for changes > 5ms | |
| Audible Continuity Tester | Audible Threshold: 10 Ω - 250 Ω Tepki Süresi: 32 ms yak. | |
| Direnç | 600,0 Ω, 6.000 kΩ, 60,00 kΩ | ±(1.0% of reading + 5 digits) |
| Kapasitans | 200.0 μF, 2500 μF | ±(2.0% of reading + 4 digits) |
| Diyot Test Cihazı | 2.000 V | ±(1.5% of reading + 5 digits) |
AmpTipTM clamp-on ACA (40 Hz … 400 Hz) | 00.00 A … 60.00 A | From ±(1.5% of reading + 5 digits) to ±(3.0% of reading + 5 digits) |
Regular Clamp-on ACA (40 Hz … 400 Hz) | 60.00 A … 1000 A | From ±(1.8% of reading + 5 digits) to ±(2.2% of reading + 5 digits) |
| Hz Line Level Frequency | 5.00 Hz … 999.9 Hz | ±(1.0% of reading + 5 digits) |
| Non-Contact EF-Detection | 20 V … 440 V | Tolerance: 10 V … 1000 V |
| Algılama Frekansı | 50/60Hz | |
| Geçici koruma | 8.0 kV (1.2/50 µs surge) | |
| Aşırı Yük Koruması | Current & Hz functions via jaws: 1000 ADC/AAC rms at < 400 Hz Voltage & 3-Phase Rotation functions via terminals: 1100 VDC/VAC rms Other functions via terminals: 1000 VDC/VAC rms | |
| Güç kaynağı | 1.5 V AAA Size battery X 2 | |
| Güç tüketimi | 4.3 mA | |
| Boyutlar(LxWxH) | 258 x 94 x 44 mm | |
| Ağırılık | 312 g | |
| Jaw opening & Conductor diameter | 51 mm max | |
Aksesuarlar

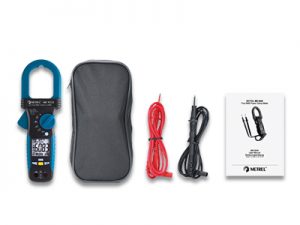

MD 9222 Standard set
- MD 9222 Current clamp
- Test lead, 2 pcs
- Battery, 2pcs
- Pouch, 1 pcs
- User manual
