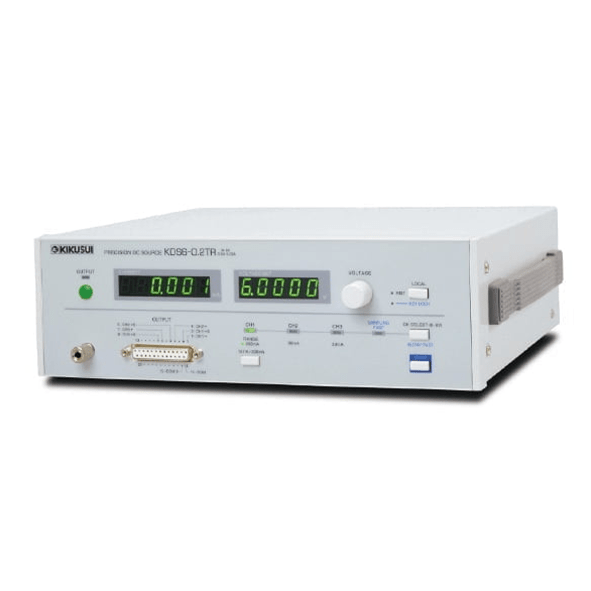

KIKUSUI KDS6-0.2TR Precision DC Source

KIKUSUI KDS6-0.2TR Precision DC Source

• 3-channel voltage standard
  [CH1: 0 to +6 V/200 mA, CH2: 0 to +6 V/30 mA, CH3: 0 to +6 V/
  30 mA (COM of 3-channel in common)]
• Remote sensing function that compensates for voltage drops at the output terminal
• Best suited to operation tests for VCO and many other types
  of sensors
• Voltage setting resolution of 100 μV (allows a different voltage
  to be set independently for each channel)
• Current reading resolution of 0.1 μA* (in standard mode)
• Ripple noise level lower than 100 μVrms, thus supporting
  measurements of high-sensitivity devices
• High-resolution meter with an easy-to-view, 6-digit current
  display (no external ammeter needed)
• Supports RS-232C and GPIB as standard interfaces
• High-speed operation
  Current value refresh interval: 60 ms (in high-speed mode)
  Setting/readout speed: 5 ms (reference value for GPIB)
• Comes with a D-Sub 25 pin connector allowing for noise
  resistance

Suitable for evaluation tests of high-frequency electronic components and precision electronic circuits

KDS6-0.2TR is designed for use on production and inspection lines for high-frequency components capable of low supply current and low voltage operation that have become dominantly popular in recent years, as well as for a variety of electronic devices such as ICs, LSIs,and sensors. This product is a low-noise, highly stable DC voltage power supply with 3-channel
