LCR Elite1
FİYAT TEKLİFİ İÇİN TIKLAYIN!An Elite LCR Meter for SMD Components
LCR Elite1 is a digital multimeter designed to measure inductance, capacitance and resistance with high accuracy. It is small, light and super-convenient for you to carry everywhere and not be tethered to bulky lab equipment. The gold-plated precise tips are designed to contact the SMD components easily and reliably with… Devamı

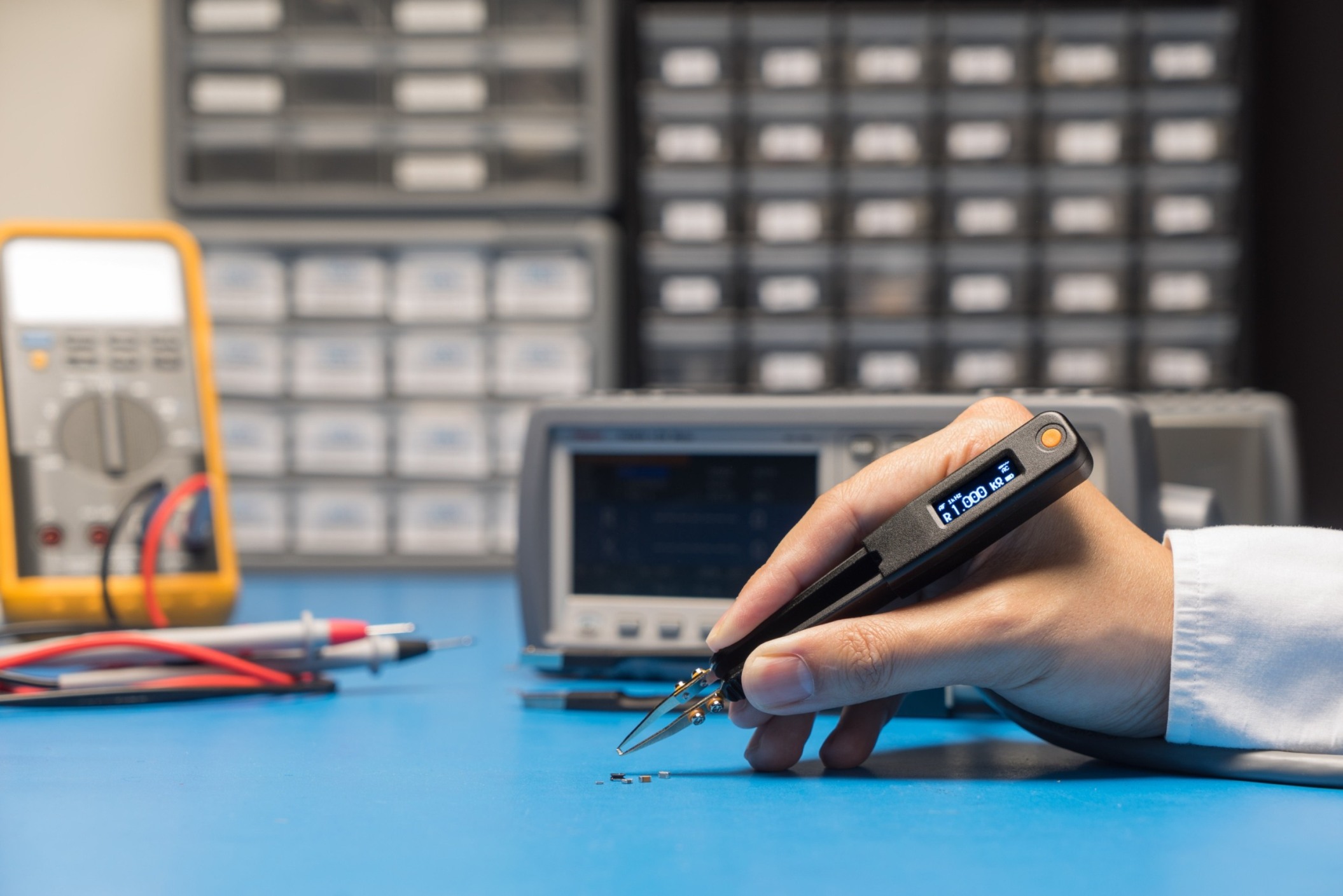

LCR Elite1 is a digital multimeter designed to measure inductance, capacitance and resistance with high accuracy. It is small, light and super-convenient for you to carry everywhere and not be tethered to bulky lab equipment.

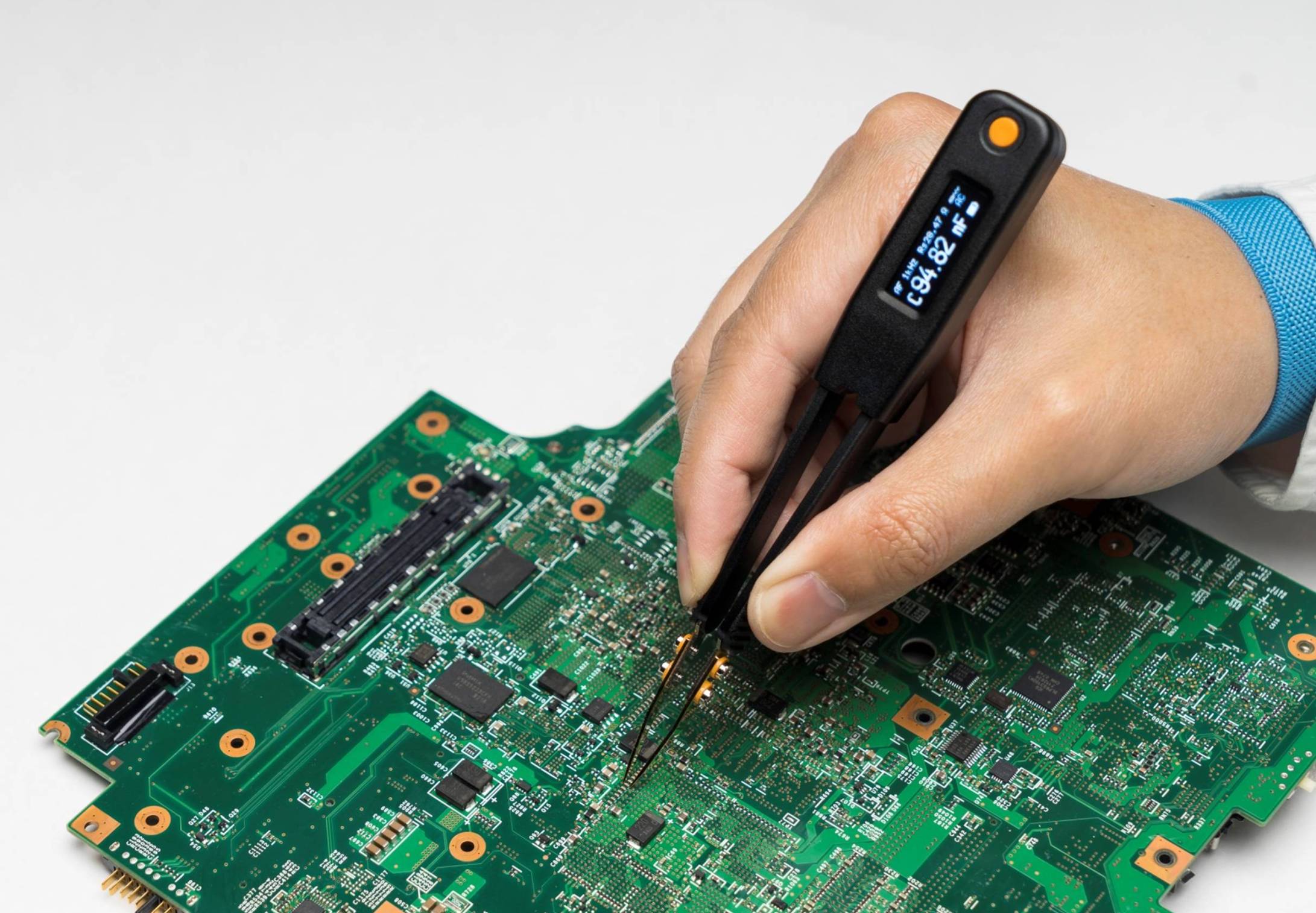

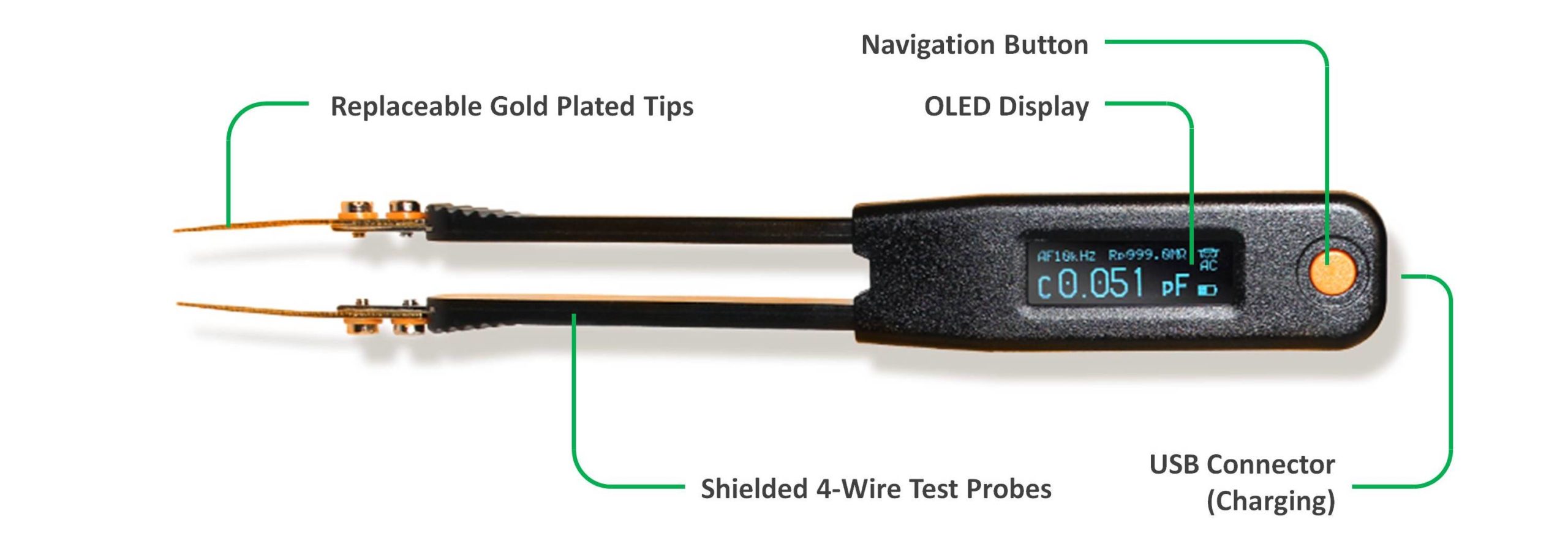

The gold-plated precise tips are designed to contact the SMD components easily and reliably with sizes down to 0201. The 4-wire shielded probe improves measurement accuracy and reduces parasitic parameters to a minimum. The highly integrated hardware improves the performance and reduces the size significantly, making the Elite1 an ideal choice for a broad range of applications and missions, including electronics labs, QA inspection, production lines, service center, etc.
KEY FEATURES
Ürün Özellikleri
Automatic Component Identification
LCR Elite1 simplifies measurements by using the automatic component identification function. It automatically identifies L, C, or R and selects proper testing frequency and circuit mode. Alternatively, you can use manual mode to set the desired parameters for measurement.
Detailed component analysis is provided on the OLED display. The primary display shows component type and value. The secondary display shows Rs (series equivalent resistance) or Rp (parallel equivalent resistance). Testing parameters and battery indicator are also displayed.
Easy Operation

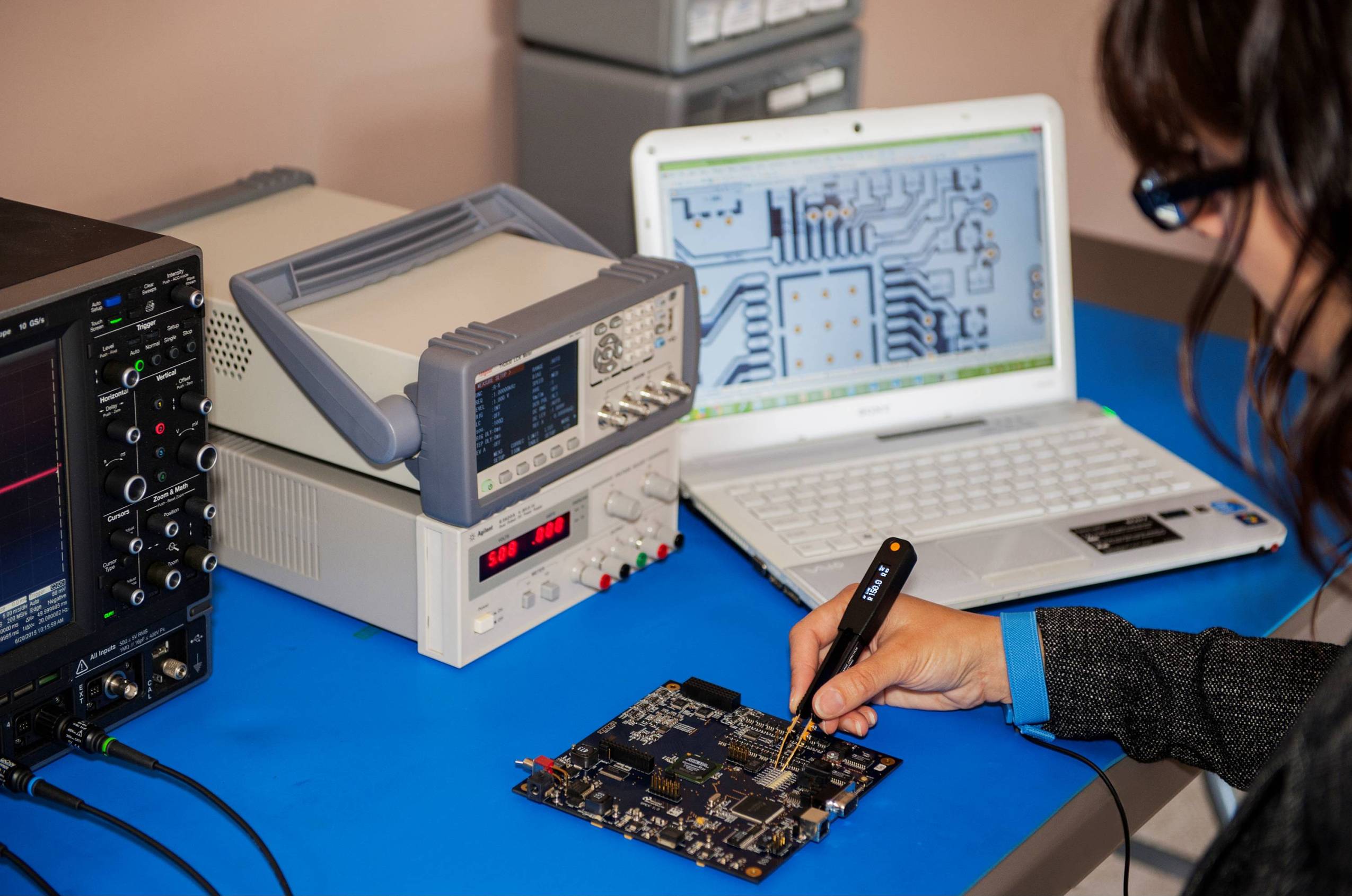

LCR Elite1 is much smaller and lighter than traditional LCR meters. It allows for one-handed operation, which makes measurements and reading results effortless.
By clicking the navigation button once or several times, you can select different testing parameters quickly and easily. You can conveniently return to the default mode by pressing and holding down the navigation button for 2 seconds, regardless of which mode it was currently in.
Long Battery Life
LCR Elite1 is powered by an internal, lithium-ion polymer rechargeable battery. It can be charged by a computer or a USB power adapter. The power consumption is optimized to make the battery last a day for typical measurement. The standby time can last up to a year.
Teknik Özellikler
Aksesuarlar

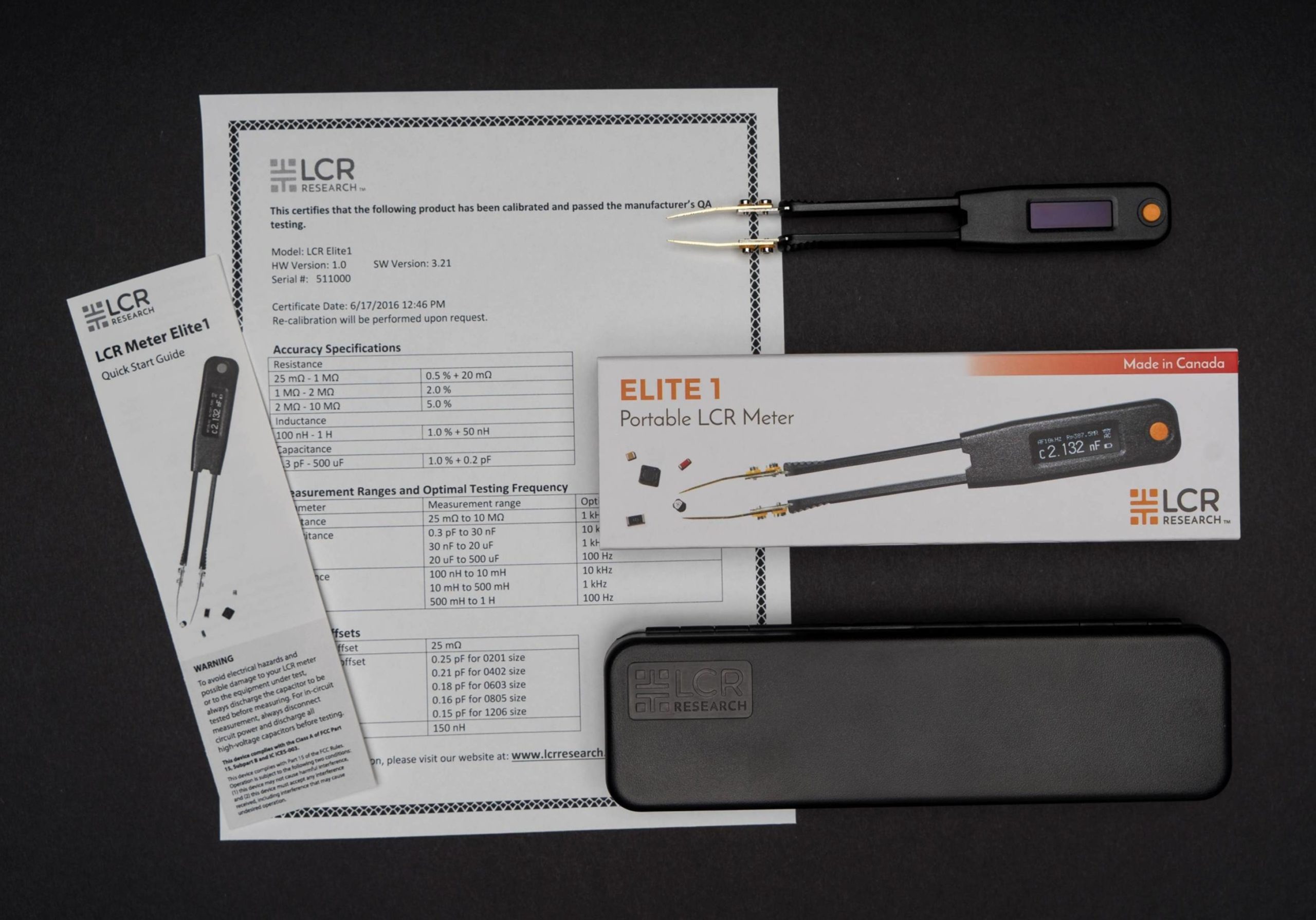

SCOPE OF SUPPLY
