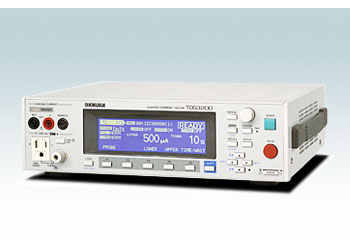

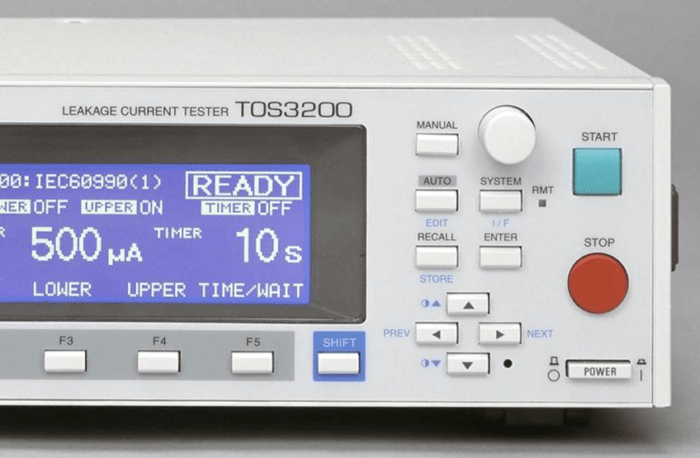

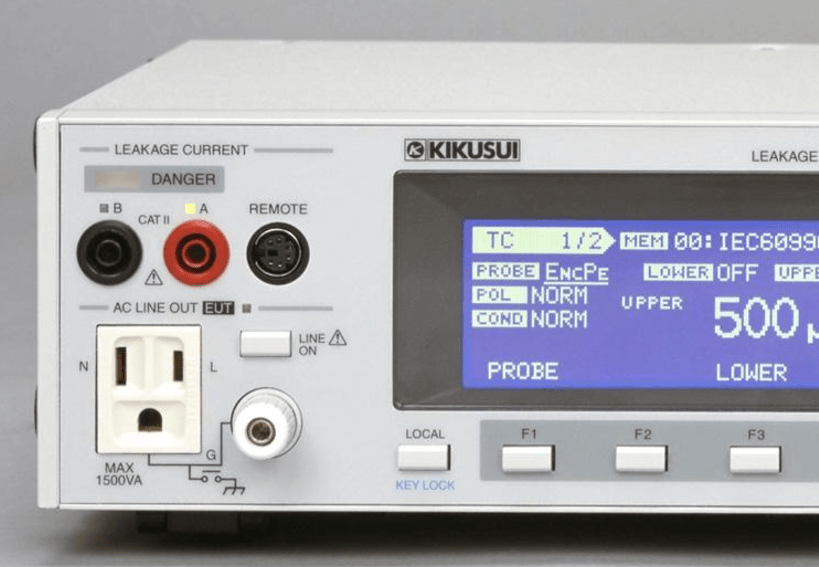

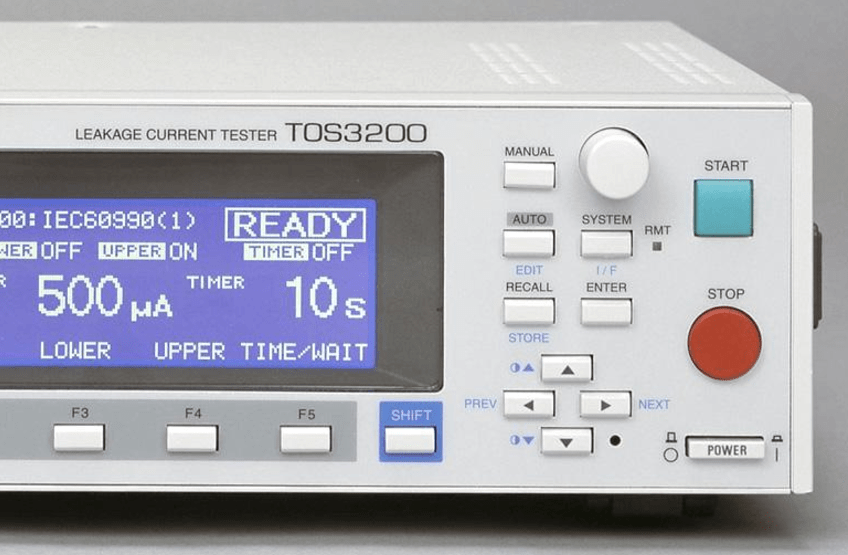

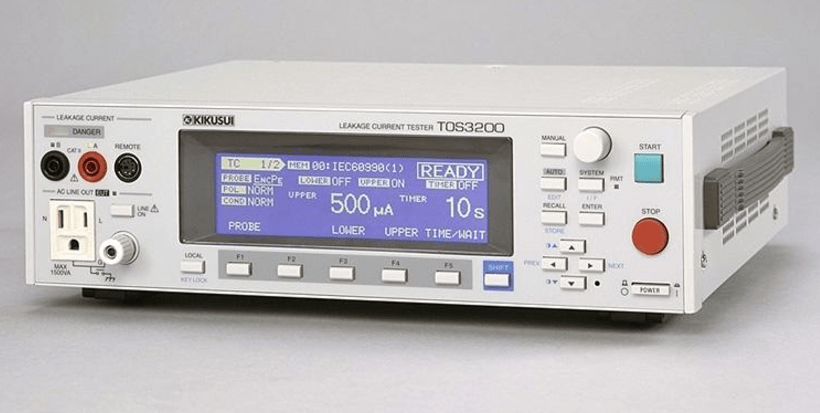

Kikusui TOS3200 Kaçak Akım test cıhazı

Kaçak Akım test cıhazı

Açıklama

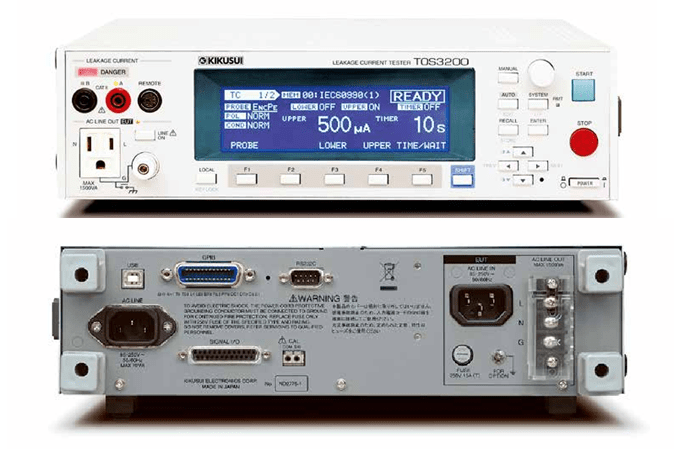

INTRO
The Leakage Current Tester TOS3200 is designed to perform leakage current (touch current and protective conductor current) tests on general electrical equipment but not medical electrical equipment.
It enables you to conduct tests that conform to the requirements of the applicable IEC, UL, JIS, and other standards, as well as the Electrical Appliance and Material Safety Law. The memory in the main unit stores the 51 types of test conditions laid down in the IEC/JIS standards for information technology equipment, household electrical appliances, audio, video electronic apparatus, luminaires, motor-operated electric tools, and electrical equipment for measurement and control and in the Electrical Appliance and Material Safety Law, thereby enabling you to conduct standard tests with simple panel operation.

Özellikleri:

  • Kaçak Akım Ölçümü; Dokunma Kaçak Akımı, Koruma İletkeni Akım Ölçümü, Akım Ölçer
  • 30µ ~ 30mA Arası Kaçak Akım Ölçümü
  • Ölçüm Doğruluğu ±5%
  • DC/ AC RMS/ PEAK Ölçüm Modları
  • Ölçülen Değerin Ayarlanan Voltaj Değerine Dönüştürülme Özelliği
  • Fonksiyonu İle Ölçülen En Yüksek Akım Değeri
  • Hafızada Yüklü 51 Farklı Standart
  • GEÇTİ/KALDI Özelliği
  • Zamanlayıcı Özelliği
  • Otomatik Test Özelliği
  • Programlanabilir Test Özelliği İle 100 Test Programı
  • Topraklama Kontrolü
  • USB, GB-IP, RS232C ve EXT. I/O Arayüzü
  • Dahili Hafıza
  • Japon Malı



Ürün Özellikleri

  • Measures leakage current in 3 operation modes: Touch Current (TC), Protective Conductor Current (PCC), and METER mode
  • Eight types of measuring circuit networks are incorporated in the tester for measuring the touch current of general electrical apparatuses
  • Possible to measure DC/RMS/PEAK, realizing the "true root-mean-square value" with 30 mA as the maximum RMS
  • User-friendly operability
  • Possible to choose between Independent and Automatic Testing
  • 51 types of preset safety standard tests
  • Function for controlling the calibration expiration limits
  • The utility software (Freeware) can be downloaded . That enables you writing and reading TOS3200 test condition, reading test result, test control (execution and stop), reading measured leakage current value, and other functions.

Teknik Özellikler

LINE UP

ModelSpecification
TOS3200DC/RMC: 30µA to 30mA (DC/RMS: 50µA to 90mA), Seven types of measuring circuit networks are incorporated in the tester for measuring the touch current of general electrical apparatuses, 51 types of preset safety standard tests

SPECIFICATIONS

Measurement item, measurement mode
Measurement item3 types, namely, touch current (TC) measurement,protective conductor current (PCC) measurement, and METER
  Measurement methodTCMeasure the voltage drop across the reference resistor, using a measurement circuit network (NTWK), and then calculate the current.
PCCMeasure the voltage drop across the reference resistor connected to the protective earth wire and then calculate the current.
METERMeasure the voltage and current using the measurement terminals.
Measurement modeDC/RMS/PEAK (RMS being the true root-mean-square value)
        Measurement circuit network (NTWK)Network ABasic measurement element: (1.5 kΩ//0.22 µF)+ 500 Ω
Network B/B1Basic measurement element: (1.5 kΩ//0.22 µF)+ 500 Ω//(10 kW + 0.022 µF)
Network CBasic measurement element: (1.5 kΩ//0.22 µF) + 500 Ω//(10 kΩ + (20 kΩ + 6.2 nF)//9.1 nF)
Network DBasic measurement element: 1 kΩ
Network EBasic measurement element: 1 kΩ//(10 kΩ + 11.225 nF + 579 Ω)
Network FBasic measurement element: 1.5 kΩ//0.15 µF
Network GBasic measurement element: 2 kΩ
Network constant toleranceResistance: ±0.1%, capacitor 0.15 µF: ±2%, other: ±1%
Current measurement section
Measurement rangeRange 1DC/RMS: 30 µA to 600 µA, PEAK: 50 µA to 850 µA (*3)
Range 2DC/RMS: 125 µA to 6.00 mA, PEAK: 175 µA to 8.50 mA (*3)
Range 3DC/RMS: 1.25 mA to 30.0 mA, PEAK: 1.75 mA to 90.0 mA (*3)
Range switchingAUTO/FIX
Measured current (i) display/resolutioni < 1mA: □□□ µA/1 µA, 1 mA   i < 10 mA: □.□□ mA/0.01 mA10 mA   i < 100 mA: □□,□ mA/0.1 mA
                Measurement accuracy(*5)  Range 1DC±(5.0% of rdng + 20 µA)
RMS15 Hz   f   10 kHz: ±(2.0% of rdng + 8 µA)
10 kHz < f 1 MHz: ±(5.0% of rdng + 10 µA)
PEAK15 Hz   f   10 kHz: ±(5.0% of rdng + 10 µA)
    Range 2DC±(5.0% of rdng + 50 µA)
RMS15 Hz   f   10 kHz: ±(2.0% of rdng + 20 µA)
10 kHz < f 1 MHz: ±(5.0% of rdng + 20 µA)
PEAK15 Hz   f   1 kHz: ± (2.0% of rdng + 50 µA)
1 kHz < f  10 kHz: ± (5.0% of rdng + 50 µA)
Range 3DC±(5.0% of rdng + 0.5 mA)
RMS15 Hz   f   10 kHz: ±(2.0% of rdng + 0.2 mA)
10 kHz < f 1 MHz: ±(5.0% of rdng + 0.2 mA)
PEAK15 Hz   f   1 kHz: ± (2.0% of rdng + 0.5 mA)
1 kHz < f  10 kHz: ± (5.0% of rdng + 0.5 mA)
Input resistance, input capacitance1 MΩ±1%, < 200 pF
Common mode rejection ratiof    10 kHz: 60 dB or greater, 10 kHz < f    1 MHz: 40 dB or greater
Judgement function
Judgement methodPass/fail judgement by setting upper and lower current limits in window comparator mode
JudgementU-FAIL for currents above the upper limit; L-FAIL for currents below the lower limit.
Display, etc.U-FAIL/L-FAIL/PASS display, buzzer sounding
PASS holdThe time for which a PASS judgement is retained can be set to 0.2 s to 10.0 s or to HOLD
Setting rangeRange 1DC/RMS: 30 µA to 600 µA, PEAK: 50 µA to 850 µA (*4)
Range 2DC/RMS: 151 µA to 6.00 mA, PEAK: 213 µA to 8.50 mA (*4)
Range 3DC/RMS: 1.51 mA to 30.0 mA, PEAK: 2.13 mA to 90.0 mA (*4)
Judgement accuracyConforms to measurement accuracy. (Read rdng as set.)
Measurement of voltage between A and B
Measurement rangeDC/RMS: 10.000 V to 300.0 V, PEAK: 15.000 V to 430.0 V
Accuracy±(3% of rdng + 2 V), measurement range fixed at AUTO
Input impedanceApprox. 40 MΩ
SELV detectionSet the SELV to detect; if this value is exceeded, the DANGER lamp is turned ON
SELV setting range10 V to 99 V, in 1-V steps, OFF function provided
Timer, test execution function, memory
TimerTest wait timeSetting range: 0 s to 999 s, accuracy: ±(100 ppm of set + 20 ms)
Test timeSetting range: 1 s to 999 s/OFF function, accuracy: ±(100 ppm of set + 20  ms)
Text executionAuto test (AUTO): Automatic execution of up to 100 steps (test conditions) Independent test (MANUAL): Independent execution of TC, PCC, or METER measurement
Test conditionsAUTO: Up to 100 sequence programs can be saved (up to 500 steps in total). MANUAL: Up to 100 sequence programs can be saved.
MemoryTest resultsThe user can select whether to save the judgement results when they are output at the end of the tests.AUTO: Test results for up to 50 programs can be recorded. MANUAL: Test results for up to 50 tests can be recorded.
Other functions
Measured value conversion (CONV)Converts the measured current value into the corresponding value at the preset power voltage
Setting range: 80.0 V to 300.0 V, OFF function provided
MEASURE MODESelects a measured value from those below
NORM: Displays the measured value in the measurement period
MAX: Displays the largest measured value in the measurement period
Power positive/negative phase selection (POL)NORM: Positive phase connection, REVS: Negative phase connection
Single fault selection (COND)NORM: Normal, FLTNEU: Disconnection of the neutral wire, FLTPE: Disconnection of the protective earth wire
Earth checkGenerates CONTACTFAIL if the enclosure is grounded in a TC (EncLiv, EncNeu) test
MEASURE CHECKChecks the measurement function between measurement terminals A and B, and places the tester in the PROTECTION state if an error is detected
Voltage measurement(EUT)Measurement range: 80.0 V to 250.0 V, resolution: 0.1 V, accuracy: ±(3% of rdng + 1 V)
Current  measurement(EUT)Measurement range: 0.1 A to 15.00 A, resolution: 0.01 A, accuracy: ±(5% of rdng + 30 mA)
Power measurement (effective power)Measurement range: 10 W to 1500 W
Accuracy (at a power voltage of 80 V or higher and a load power factor of 1): ±(5% of rdng + 8 W)
System clockRecordingItems: Calibration date and time, test date and time, permissible date and time: Up to 2099
Calibration time limit management(CAL  PROTECT)Enables the setting of a calibration time limit. Once this time has passed, a warning is output at power on
ON: Places the tester in the PROTECTION state (disables the use of the tester), OFF: Displays warning.
Protective operationRelay operation error, overload, over range, measurement function check, failure of internal battery, etc.
Interface
RS232CD-Sub 9-pin connector (conforming to EIA-232D), baud rate: 9600/19200/ 38400 bps (For connection to a PC, use a “9-pin female-female reverse” cable.)
GPIBConforms to IEEE Std. 488-1978. (SH1,AH1,T6,TE0,L4,LE0,SR1,PP0,DC1,DT0,C0,E1)
USBUSB Specification2.0
REMOTE6-pin MINIDIN connector (for HP21-TOS (separately sold option) only)

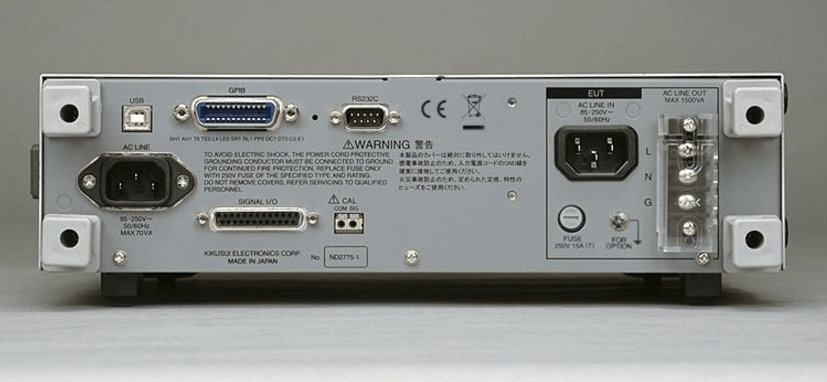

SIGNAL I/O25-pin D-Sub connector
General
Measurement terminalsRated voltage/currentTerminals A to B: 250 V, terminal to chassis: 250 V, 100 mA
Measurement categoryCAT II
Effective terminal displayTerminals effective to measurement are indicated with LED lamps.
  EnvironmentSpecification assured rangeTemperature: 5˚C to 35˚C, humidity: 20% rh to 80% rh (no condensation)
Operating rangeTemperature: 0˚C to 40˚C, humidity: 20% rh to 80% rh (no condensation)
Storage rangeTemperature: –20˚C to 70˚C, humidity: 90% rh or less (no condensation)
Mounting locationIndoors, altitude of 2000 m or less
PowerInput powerNominal input rating:100Vac to 240Vac, 50/60Hz, power consumption: 70 VA max.
for EUTNominal input rating:100Vac to 240Vac, 50/60Hz
Rated output capacity: 1500 VA, maximum current: 15 A, rush current: 70 A peak max. (within 20 ms)
Insulation resistance30 MΩ or greater (500 Vdc) (between AC line and chassis, between measurement terminal and chassis)
Withstand voltage1390 Vac, 2 seconds/20 mA or less (between AC line and chassis)
Ground bond25 Aac/0.1 Ω or less
Safety (*1)Conforms to the requirements of the directive and standard below.Low Voltage Directive 2014/35/EU, EN61010-1 (Class I, Pollution degree 2)
Electromagnetic compatibility (*1, *2)Conforms to the requirements of the directive and standard below. EMC Directive 2014/30/EU, EN 61326-1 (Class A), EN 55011 (Class A, Group 1), EN61000-3-2, EN61000-3-3,Applicable conditions: All cables and wires used to connect to this product must be shorter than 3 meters. Use the supplied test leads.
Outside dimensions, weight320[12.60 inch] (345[13.58 inch]) W ×88[3.46 inch] (105[4.13 inch]) H × 270[10.63 inch] (335[13.19 inch]) D mm, approx. 5 kg(approx. 11.02 lbs)
  • *1: May not apply to custom-made or modified products.
  • *2: Limited to products with CE marking on their panels.
  • *3: The maximum range is indicated. The range differs depending on the measurement circuit network.
  • *4: The maximum range is indicated. The range differs depending on the measurement circuit network. Also, the UPPER setting in each range when the FIX range is selected is indicated.
  • *5: Current converted value in Network A,B,C and PCC measurement,based on built-in voltmeter accuracy

Aksesuarlar

Accessories1 set of test leads (TL21-TOS: red and black, one each, with alligator clips) 1 flat probe (FP01-TOS), 1 spare fuse (15 A, for EUT power) 1 instruction manual, 1 circuit principle diagram sticker 2 power cords (for the tester and for the EUT AC line)

OPTIONS

TL21-TOS

Test lead for TOS3200, equivalent to the supplied lead, cable length: 1.5m

O1

FP01-TOS

Flat probe for TOS3200, equivalent to the supplied lead, The flat probe is a type of sheet that measures the TC when the enclosure is touched with the palm of one's hand. The size of the metal foil (10 cm X 20 cm) complies with IEC 60990.

O2

HP21-TOS

Test probe for TOS3200, *with a start switch

O3

OT01-TOS

Multi-output for TOS3200, allows the connection of the different plugs used around the world

O4

KRA3-TOS

Rack adapter (Inch size) *Applicable model name: TOS3200

KRA150-TOS

Rack adapter (Metric size) *Applicable model name: TOS3200
