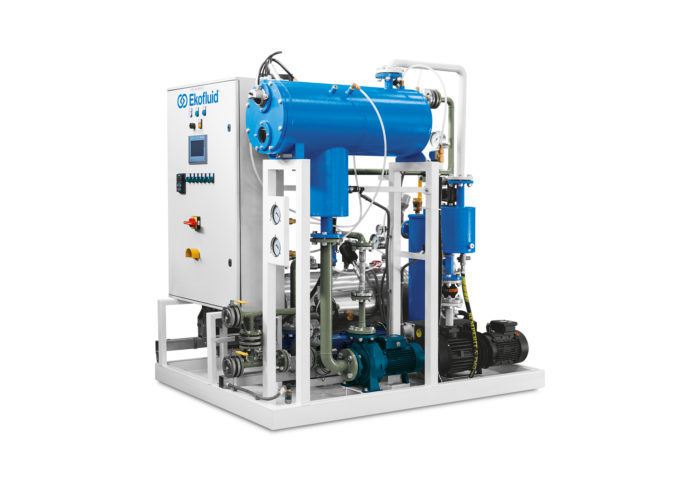

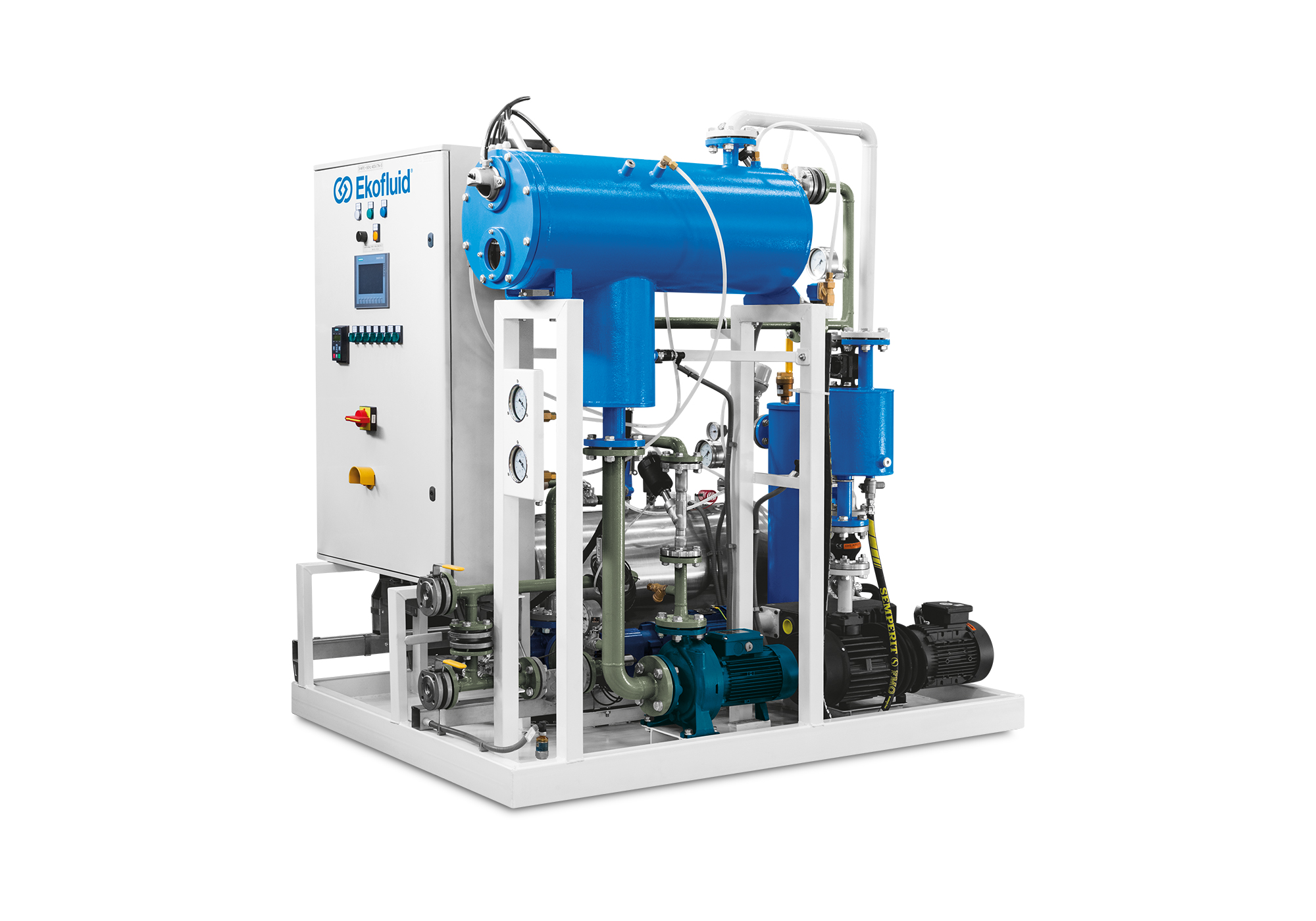

Transformer oil treatment plant FILOIL 1 500 is the most compact model of our FILOIL range best suited for small power transformers. Its main purpose is to remove moisture, gasses and solid particles from transformer oils. Plants are of stationary or mobile design and can work on offline or online transformers.
- Unique degassing and moisture removal vacuum technology
- Automated operation on online and offline transformers
- Most efficient oil processing in its class
- Works on all types of transformer oils
Description of oil treatment process
Oil is heated by electrical heaters with surface efficiency below 1.5 W/cm, with indirect heating to prevent local overheating. Oil at the outlet is filtered by a fine, up to, 0.5-micron filter to filter out solid particles before returning the oil back to the transformer. Equipment is fully automatic optionally controlled by PLC logic and interfaced with a SCADA system. Numerous safety features are introduced throughout the plant to ensure the safety of the equipment as well as the operating personal. Aeration valves, overheating protection, and automatic level switches guarantee the safety of the equipment as well as its ability to identify a possible risk and to power down to prevent any accidents.
All oil treatment plants possess a positive displacement rotary inlet pump. The outlet pump is a centrifugal closed coupled high suction pump. For dehydration and degassing the rotary vane, a vacuum pump and vacuum booster roots pump are used. Vacuum chamber houses a variable amount of coalescer filters to achieve most efficient treatment of oil. All oil treatment plants have automatic variable oil flow control to maximize user comfort during operation. Vacuum breaking valves before and after the vacuum chamber ensure the vacuum side and the pressure side of the oil treatment plant are completely separated
